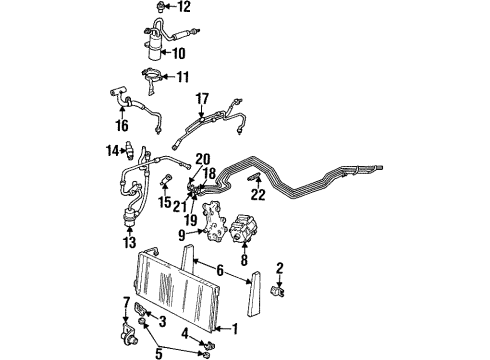

Ford XF5Z-19712-AA
Condenser

The suction accumulator does not need replacing unless system contamination appears because of an A/C compressor failure or suction accumulator damage occurs. A leak test should precede removing the A/C condenser core when you suspect leakages. Begin by conducting the Refrigerant Discharging and Recovery Procedure and after that remove the radiator. Before beginning the installation process remove the peanut fitting to disconnect the A/C condenser core from the A/C compressor line and then detach it from the auxiliary A/C line. The left-hand and right-hand core bolts on the A/C condenser need to be removed before extracting the condenser core itself from the vehicle. The installation steps start by doing the reverse procedure of removal while applying PAG Compressor Oil F2AZ-19577-AC (MC YN-12) to the new A/C condenser core to meet Ford specification WSH-M1C231-B along with oiling the O-ring seals.

Remove the left-hand A/C condenser core bolt followed by the right-hand A/C condenser core bolt.
