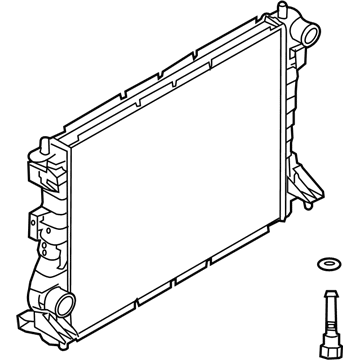

Ford AR3Z-8005-A
Radiator

A service operation on the radiator starts with draining the cooling system fluid. The service begins with removing six bolts that secure the lower splash shield by using a torque setting of 5 Nm (44 lb-in) for installation. Groove and remove the cooling fan motor and shroud and subsequently the air deflector and 6 pushpin retainers. Detach the degas bottle-to-radiator hose and upper radiator hose and lower radiator hose before placing them out of the working area. Through the radiator support brackets you must remove 4 bolts which should be tightened to 10 Nm (89 lb-in) when reinstalling. To replace the components begin by detaching the power steering tubes at their retaining nuts before moving the tubes out of the way. Then remove the 2 nuts from the A/C condenser and tighten them to 10 Nm (89 lb-in) during reinstall. Set aside the transmission cooler by tightening its associated bolts to 10 Nm (89 lb-in) before installation. After radiator removal complete the task by reverting the removal process and then fill and bleed the cooling system.

Service of the radiator begins with draining the cooling system fluid. The service of the radiator begins with lower radiator air deflector removal and subsequent detachment of six pushpin retainers leading to removal of the air deflector. To start remove the cooling fan motor followed by the shroud. Position the removed hoses of degas bottle-to-radiator and upper and lower radiator while disconnecting them from their mounts. The radiator support brackets must have their four bolts removed before reinstallation where the bolts need to be tightened to 10 Nm (89 inch lbs.). Start by disconnecting the two power steering tubes and A/C condenser retaining nuts but keep the power steering tubes aside while tightening both nuts to 8 Nm (71 inch lbs.) for reinstallation. Secure the two A/C condenser bolts at 10 Nm (89 inch lbs.) and restore them during reinstallation. Render the two bolts that secure the transmission cooler and set it aside while tightening these bolts to 10 Nm (89 inch lbs.) when reinstalling. To conclude the installation replace the radiator while following the removal steps from beginning to end before properly filling and bleeding the cooling system.

Remove the radiator.
