OEM Ford E-250 Econoline Drag Link

Ford E-250 Econoline Drag Link Parts and Q&A

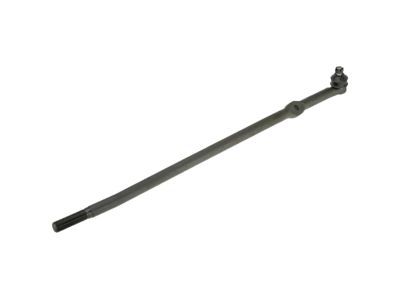

• Drag Link, Front Passenger Side
  8C2Z-3304-D
  Q: How to service and repair the Drag Link on Ford E-250 Econoline?

  A:

  When servicing a center link, the steering sector shaft arm drag link or tie rod end is typically replaced if the ball stud is excessively loose in its socket, the drag link is bent, or the taper for the tie rod end is loose, and the front suspension steering ball stud dust seal is replaced in some cases where nicks, cuts, or tears are present; a damaged drag link or tie rod end is generally not straightened. Small components are usually removed in sequence: castellated nuts are taken off and cotter pins are discarded, the outer tie rod end is separated from the right-hand steering knuckle and the left-hand inner tie rod end from the steering sector shaft arm drag link, and a Pitman arm puller is used where the sector shaft arm connection must be separated. The tie rod adjusting sleeve is then withdrawn from the drag link, with the number of turns counted for reference during reassembly. Reassembly is commonly done in reverse order and new cotter pins are installed; care is typically taken to align the two bolts and nuts on the tie rod adjusting sleeve clamp within a 45-degree limit, with the threaded ends of the bolts on the left tie rod end oriented toward the front of the vehicle and those on the right facing rearward. Once the castellated nuts and sleeve clamp bolts are tightened, toe-in and clear vision are checked to confirm correct alignment and function.
