How to service and repair the Body Control Module in the Smart Junction Box on Ford Escape?

Service and repair of the Smart Junction Box (SJB) should start with disconnecting the battery. The procedure for removing the SJB requires you to upload its configuration data to a diagnostic tool because the information is necessary for downloading into the new module after installation. Before accessing the SJB you must take off the floor console SJB cover followed by removal of the transmission selector lever bezel from the floor console finish panel. Engage the parking brake before removing the parking brake lever boot from the floor console finish panel which you should follow with removal of the floor console finish panel itself. You need to unscrew the SJB before disconnecting its electrical connectors to finally take out the SJB. Install the new SJB by first connecting its electrical connectors then placing the unit where it belongs before using the screw to secure it. You should reinstall the parking brake lever boot on the floor console finish panel while also releasing the parking brake before installing the transmission selector lever bezel and floor console SJB cover. Reconnect the battery. The SJB configuration data download from the diagnostic tool to the SJB will trigger the clearance of DTC B2477 thus signaling properly programming the SJB. Use diagnostic tool equipment to train the tire pressure sensors so the SJB will clear DTCs B2868, B2869, B2870, and B2871 till the sensors show recognition. Perform the SJB on-demand self-test to clear DTC C2780 because it enables the SJB to leave manufacturing mode before validating all other diagnostic codes. The diagnostic process should end with clearing all persistent DTCs while checking for any remaining DTCs.

What steps should be followed before removing the Body Control Module (Smart Junction Box) and How to install the new Body Control Module on Ford Escape?

The first step before SJB removal requires tool-based uploading of module configuration data that will be needed during new module installation. Start by removing the battery power followed by the floor console SJB cover and transmission selector lever bezel from the floor console finish panel. Shut off the parking brake and pull up the parking brake lever boot from the floor console finish panel before taking off the panel itself. Screw off the SJB before disconnecting its electrical connectors to take out the SJB device. The installation process for the new SJB begins with backward execution of removal steps followed by SJB configuration based on Information Bus (Module Communications Network) specifications.

OEM Ford Escape Body Control Module

BCM

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

23 Body Control Modules found

View related parts

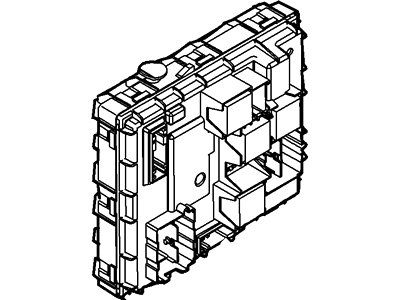

Ford Escape Control Module Part Number: BL8Z-15604-B
$327.07 MSRP: $532.00
You Save: $204.93 (39%)
ADD TO CART
Product Specifications
- Other Name: Module - Door Lock And Alarm; Body Control Module; Module
- Replaces: 9L8Z-15604-A, AL8Z-15604-B, AL8Z-15604-A, 8L8Z-15604-A, 8L8Z-15604-B, BL8Z-15604-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2012 Ford Escape | Hybrid, Limited, Limited Hybrid, XLS, XLT | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Ford Escape Ignition Immobilizer Module Part Number: GM5Z-15607-A
$39.66 MSRP: $45.00
You Save: $5.34 (12%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Transceiver; Keyless Entry Sensor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Escape | S, SE, SEL, Titanium | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS
View related parts
Ford Escape Body Control Module Part Number: JV6Z-14A068-F
$311.91 MSRP: $485.83
You Save: $173.92 (36%)
ADD TO CART
Product Specifications
- Other Name: Panel Assembly - Fuse Junction; Fuse and Relay Center; Junction Block; Junction Boxes; Relay Boxes; Fuse Box; Control Module; Relay & Fuse Plate
- Replaces: BV6Z-14A068-LD, F1FZ-14A068-B, F1FZ-14A068-E, GV6Z-14A068-S, GV6Z-14A068-XM, CV6Z-14A068-JE, GV6Z-14A068-L, DV6Z-14A068-B, DV6Z-14A068-C, JV6Z-14A068-D, GV6Z-14A068-G, GV6Z-14A068-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013 Ford Escape | S, SE, SEL, Titanium | 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS
View related parts
Ford Escape Body Control Module Part Number: NU5Z-15604-AE
$197.51 MSRP: $230.00
You Save: $32.49 (15%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Alarm/Keyless Lock System
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2023 Ford Escape | Active, Base, Platinum, Platinum Hybrid, Plug-In Hybrid, ST-Line, ST-Line Elite, ST-Line Elite Hybrid, ST-Line Hybrid, ST-Line Select, ST-Line Select Hybrid | 3 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Ford Escape Body Control Module Part Number: NU5Z-15604-AF
$210.39 MSRP: $245.00
You Save: $34.61 (15%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Alarm/Keyless Lock System
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2023 Ford Escape | Active, Base, Platinum, Platinum Hybrid, Plug-In Hybrid, ST-Line, ST-Line Elite, ST-Line Elite Hybrid, ST-Line Hybrid, ST-Line Select, ST-Line Select Hybrid | 3 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Ford Escape Body Control Module Part Number: NU5Z-15604-AD
$210.39 MSRP: $245.00
You Save: $34.61 (15%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Alarm/Keyless Lock System
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2023 Ford Escape | Active, Base, Platinum, Platinum Hybrid, Plug-In Hybrid, ST-Line, ST-Line Elite, ST-Line Elite Hybrid, ST-Line Hybrid, ST-Line Select, ST-Line Select Hybrid | 3 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Ford Escape Body Control Module Part Number: LX6Z-15604-Y
$344.41 MSRP: $589.09
You Save: $244.68 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Alarm/Keyless Lock System; Keyless Entry Module; Control Module
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2023 Ford Escape | Active, Base, Platinum, Platinum Hybrid, Plug-In Hybrid, S, SE, SE Hybrid, SE Plug-In Hybrid, SE Sport Hybrid, SEL, SEL Hybrid, SEL Plug-In Hybrid, ST-Line, ST-Line Elite, ST-Line Elite Hybrid, ST-Line Hybrid, ST-Line Select, ST-Line Select Hybrid, Titanium, Titanium Hybrid, Titanium Plug-In Hybrid | 3 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Ford Escape Control Module Part Number: LX6Z-15604-Z
$412.01 MSRP: $660.00
You Save: $247.99 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Alarm/Keyless Lock System; Keyless Entry Module
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2023 Ford Escape | Active, Base, Platinum, Platinum Hybrid, Plug-In Hybrid, S, SE, SE Hybrid, SE Plug-In Hybrid, SE Sport Hybrid, SEL, SEL Hybrid, SEL Plug-In Hybrid, ST-Line, ST-Line Elite, ST-Line Elite Hybrid, ST-Line Hybrid, ST-Line Select, ST-Line Select Hybrid, Titanium, Titanium Hybrid, Titanium Plug-In Hybrid | 3 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Ford Escape Body Control Module Part Number: LU5Z-15604-BT
$374.18 MSRP: $640.00
You Save: $265.82 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Alarm/Keyless Lock System
- Replaces: LU5Z-15604-BC
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2021-2022 Ford Escape | S, SE, SE Hybrid, SE Plug-In Hybrid, SEL, SEL Hybrid, SEL Plug-In Hybrid, Titanium, Titanium Hybrid, Titanium Plug-In Hybrid | 3 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Ford Escape Body Control Module Part Number: LX6Z-15604-AA
$379.09 MSRP: $607.27
You Save: $228.18 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Alarm/Keyless Lock System; Keyless Entry Module; Control Module
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2023 Ford Escape | Active, Base, Platinum, Platinum Hybrid, Plug-In Hybrid, S, SE, SE Hybrid, SE Plug-In Hybrid, SE Sport Hybrid, SEL, SEL Hybrid, SEL Plug-In Hybrid, ST-Line, ST-Line Elite, ST-Line Elite Hybrid, ST-Line Hybrid, ST-Line Select, ST-Line Select Hybrid, Titanium, Titanium Hybrid, Titanium Plug-In Hybrid | 3 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Ford Escape Control Module Part Number: LX6Z-15604-J
$400.77 MSRP: $642.00
You Save: $241.23 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Alarm/Keyless Lock System; Keyless Entry Module
- Replaced by: LX6Z-15604-W
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2022 Ford Escape | S | 3 Cyl 1.5 L GAS
View related parts
Ford Escape Body Control Module Part Number: LU5Z-15604-BV
$419.95 MSRP: $672.73
You Save: $252.78 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Alarm/Keyless Lock System
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2022 Ford Escape | S, SE, SE Hybrid, SE Plug-In Hybrid, SE Sport Hybrid, SEL, SEL Hybrid, SEL Plug-In Hybrid, Titanium, Titanium Hybrid, Titanium Plug-In Hybrid | 3 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Ford Escape Body Control Module Part Number: LU5Z-15604-BU
$373.42 MSRP: $598.18
You Save: $224.76 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Alarm/Keyless Lock System
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2022 Ford Escape | S, SE, SE Hybrid, SE Plug-In Hybrid, SEL, SEL Hybrid, SEL Plug-In Hybrid, Titanium, Titanium Hybrid, Titanium Plug-In Hybrid | 3 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Ford Escape Control Module Part Number: 6G9Z-15K602-F
$56.01 MSRP: $81.53
You Save: $25.52 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Receiver - Radio Remote Control; Keyless Entry Receiver; Receiver; Module
- Replaces: 6G9Z-15K602-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2019 Ford Escape | S, SE, SEL, Titanium | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS
View related parts
Ford Escape Body Control Module Part Number: LJ5Z-15604-C
$153.77 MSRP: $212.73
You Save: $58.96 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Alarm/Keyless Lock System
- Replaces: LJ5Z-15604-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020 Ford Escape | S, SE, SE Sport Hybrid, SEL, Titanium, Titanium Hybrid | 3 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Ford Escape Control Module Part Number: ML3Z-15607-Y
$56.79 MSRP: $65.00
You Save: $8.21 (13%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Transceiver; Tire Pressure Monitoring System Receiver; Keyless Entry Receiver; Receiver
- Replaces: ML3Z-15607-J
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2022-2023 Ford Escape | Active, Base, Platinum, Platinum Hybrid, Plug-In Hybrid, S, SE, SE Hybrid, SE Plug-In Hybrid, SEL, SEL Hybrid, SEL Plug-In Hybrid, ST-Line, ST-Line Elite, ST-Line Elite Hybrid, ST-Line Hybrid, ST-Line Select, ST-Line Select Hybrid, Titanium, Titanium Hybrid, Titanium Plug-In Hybrid | 3 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Ford Escape Control Module Part Number: AT4Z-15604-E
Product Specifications
- Other Name: Module - Door Lock And Alarm; Body Control Module; Module
- Manufacturer Note: Smart Junction Box
- Replaces: 7T4Z-15604-C, AT4Z-15604-D, AT4Z-15604-C, 8T4Z-15604-A, 9T4Z-15604-A, AT4Z-15604-A, 7T4Z-15604-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007 Ford Escape | Hybrid, Limited, XLS, XLT | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Ford Escape Control Module Part Number: F1CZ-19G481-F
$81.58 MSRP: $95.00
You Save: $13.42 (15%)
Product Specifications
- Other Name: Module; Body Control Module
- Replaces: F1CZ-19G481-C, F1CZ-19G481-A, F1CZ-19G481-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2019 Ford Escape | S, SE, SEL, Titanium | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS
View related parts
Ford Escape Module Part Number: 5L8Z-15604-FA
Product Specifications
- Other Name: Kit - Alarm/Keyless Lock System
- Manufacturer Note: Smart Junction Box
- Replaces: 5L8Z-15604-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2006 Ford Escape | Hybrid, Limited, XLS, XLT, XLT No Boundaries, XLT Sport | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Ford Escape Module Part Number: 5L8Z-15604-HA
Product Specifications
- Other Name: Kit - Alarm/Keyless; Kit - Alarm/Keyless Lock System
- Manufacturer Note: Smart Junction Box
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2006 Ford Escape | Hybrid, Limited, XLS, XLT, XLT No Boundaries, XLT Sport | 4 Cyl 2.3 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS

| Page 1 of 2 |Next >

1-20 of 23 Results

Ford Escape Body Control Module

OEM Body Control Module boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Body Control Module with long life and a perfect fit. Come to our website and find genuine Ford Escape parts. We keep a wide inventory of OEM Escape parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

The Ford Escape Body Control Module or simply known as the BCM is an important part that greatly increases the dependability and efficiency of the Ford Escape automobiles. It is an advanced computer system that controls the electricity that a car's body uses and directs matters like power windows, mirror controls, air conditioning system and central locking. Located on the vehicle bus System, the ford escape body control module enables efficient control of the various operation of the many electronic parts inside the car hence enhancing vehicle performance during the ride. There are different models of the BCM for the Ford Escape depending on the car model's generation, but despite the changes in models, it performs the same function and integrates new technologies used in the latest models. This versatility is evident in the Ford Escape to affirm its reliability and performance in the market of cars. This module is the Body Control Module and is vital when it comes to improving efficiency as well as safety of the vehicle; it controls load drivers to interact with relays for further functions such as locking the doors and regulating light systems. However, the Ford Escape Body Control Module introduced garnered attention based on integration functions which makes the operation of many related electrical systems favorable for the driver to make the ride as comfortable and safe as possible. Due to the company's focus on quality and innovation, the Ford Escape Body Control Module illustrates Ford's desire to deliver vehicles that drive comfort and safety, being fundamental for the Ford Escape.

Ford Escape Body Control Module Parts and Q&A

Module
5L8Z-15604-FA
Q: How to service and repair the Body Control Module in the Smart Junction Box on Ford Escape?
A:
Service and repair of the Smart Junction Box (SJB) should start with disconnecting the battery. The procedure for removing the SJB requires you to upload its configuration data to a diagnostic tool because the information is necessary for downloading into the new module after installation. Before accessing the SJB you must take off the floor console SJB cover followed by removal of the transmission selector lever bezel from the floor console finish panel. Engage the parking brake before removing the parking brake lever boot from the floor console finish panel which you should follow with removal of the floor console finish panel itself. You need to unscrew the SJB before disconnecting its electrical connectors to finally take out the SJB. Install the new SJB by first connecting its electrical connectors then placing the unit where it belongs before using the screw to secure it. You should reinstall the parking brake lever boot on the floor console finish panel while also releasing the parking brake before installing the transmission selector lever bezel and floor console SJB cover. Reconnect the battery. The SJB configuration data download from the diagnostic tool to the SJB will trigger the clearance of DTC B2477 thus signaling properly programming the SJB. Use diagnostic tool equipment to train the tire pressure sensors so the SJB will clear DTCs B2868, B2869, B2870, and B2871 till the sensors show recognition. Perform the SJB on-demand self-test to clear DTC C2780 because it enables the SJB to leave manufacturing mode before validating all other diagnostic codes. The diagnostic process should end with clearing all persistent DTCs while checking for any remaining DTCs.
Module
5L8Z-15604-HA
Q: What steps should be followed before removing the Body Control Module (Smart Junction Box) and How to install the new Body Control Module on Ford Escape?
A:
The first step before SJB removal requires tool-based uploading of module configuration data that will be needed during new module installation. Start by removing the battery power followed by the floor console SJB cover and transmission selector lever bezel from the floor console finish panel. Shut off the parking brake and pull up the parking brake lever boot from the floor console finish panel before taking off the panel itself. Screw off the SJB before disconnecting its electrical connectors to take out the SJB device. The installation process for the new SJB begins with backward execution of removal steps followed by SJB configuration based on Information Bus (Module Communications Network) specifications.
