How to service the flywheel on Ford Fusion?

The first step to service the flywheel requires setting the vehicle to neutral position while it sits on a hoist. You should start with clutch removal before working on the 6 bolts which secure the flywheel. Install special bolts for installation only since standard bolts do not function properly. According to the installation sequence install the flywheel while tightening bolts in three stages beginning with 50 Nm (37 ft. lbs.) then moving to 80 Nm (50 ft. lbs.) and ending with 112 Nm (83 ft. lbs.). The next step is to put back both the clutch and manual transaxle unit after having secured the flywheel.

How to Remove and Replace a Flywheel Using Special Bolts on Ford Fusion?

Start the flywheel removal and installation procedure by having the vehicle in neutral gear on a hoist. Removal of the clutch must precede the process of unbolting the flywheel using its six mounting screws. Installation of the flywheel requires specialized bolts that should not be interchange with regular bolts. Observe a three-step procedure during bolt installation of the flywheel by first tightening to 50 Nm (37 lb-ft), proceeding to 80 Nm (59 lb-ft) and finally countering the bolts to 112 Nm (83 lb-ft). The clamping of the flywheel demands completion before you can begin attaching the clutch and manual transaxle.

OEM Ford Fusion Flywheel

Clutch Flywheel

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Flywheels found

View related parts

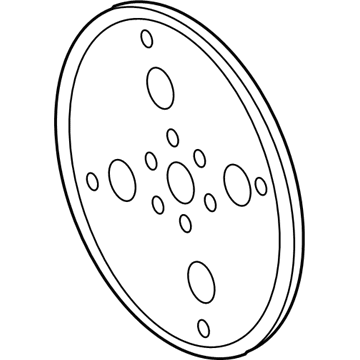

Ford Fusion Drive Plate Part Number: 7T4Z-6375-AA
$54.72 MSRP: $78.28
You Save: $23.56 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Flywheel Assembly; Automatic Transmission Flexplate; Flywheel
- Manufacturer Note: 3 Bolt Converter
- Replaces: AA5Z-7000-B, AA5Z-7000-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2016 Ford Fusion | S, SE, Titanium | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS
View related parts

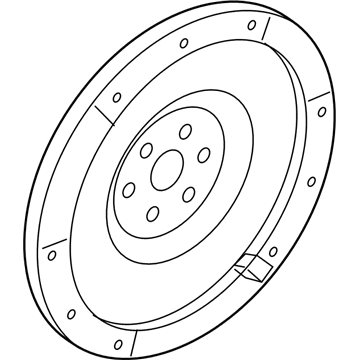

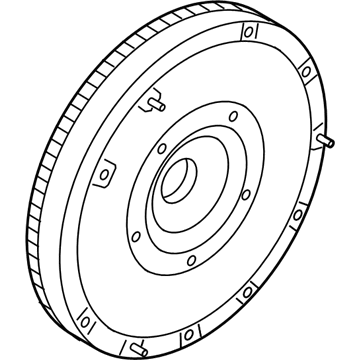

Ford Fusion Flywheel Part Number: AV6Z-6477-J
$844.88 MSRP: $1251.67
You Save: $406.79 (33%)
ADD TO CART
Product Specifications
- Other Name: Flywheel Assembly; Clutch Flywheel
- Replaces: AV6Z-6477-B, AV6Z-6477-D, AV6Z-6477-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2014 Ford Fusion | SE | 4 Cyl 1.6 L GAS
View related parts

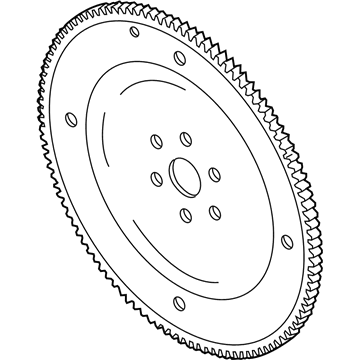

Ford Fusion Drive Plate Part Number: 1S7Z-6375-D
$76.14 MSRP: $110.83
You Save: $34.69 (32%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Flywheel Assembly; Flywheel
- Replaced by: 1S7Z-6375-E
- Replaces: 1L8Z-6375-AA, 1S7Z-6375-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2020 Ford Fusion | Platinum, S, SE, SEL, Sport, Titanium | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Fusion Drive Plate Part Number: FG9Z-6375-A
$62.60 MSRP: $91.12
You Save: $28.52 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Flywheel Assembly; Flywheel
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2020 Ford Fusion | Platinum, S, SE, SEL, Sport, Titanium | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Fusion Drive Plate Part Number: CV6Z-6375-E
$84.51 MSRP: $123.02
You Save: $38.51 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Flywheel Assembly; Flywheel
- Replaces: CV6Z-6375-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | Platinum, S, SE, SEL, Sport, Titanium | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Fusion Drive Plate Part Number: 7U3Z-6375-AA
$75.44 MSRP: $109.82
You Save: $34.38 (32%)
ADD TO CART
Product Specifications
- Other Name: Flywheel Assembly; Automatic Transmission Flexplate; Flywheel
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2012 Ford Fusion | Sport | 6 Cyl 3.5 L GAS
View related parts
Ford Fusion Drive Plate Part Number: DG9Z-6375-B
$273.42 MSRP: $401.50
You Save: $128.08 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Flywheel And Ring Gear Assembly; Flywheel
- Replaces: DG9Z-6375-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | Energi Platinum, Energi SE, Energi Titanium, Platinum, Platinum Hybrid, S, S Hybrid, SE, SE Hybrid, SEL, SEL Hybrid, Sport, Titanium, Titanium Hybrid | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.5 L GAS, 6 Cyl 2.7 L GAS
View related parts
Ford Fusion Drive Plate Part Number: 5M6Z-6375-AA
$96.99 MSRP: $134.18
You Save: $37.19 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Flywheel And Ring Gear Assembly; Automatic Transmission Flexplate; Flywheel
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2012 Ford Fusion | Hybrid | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts

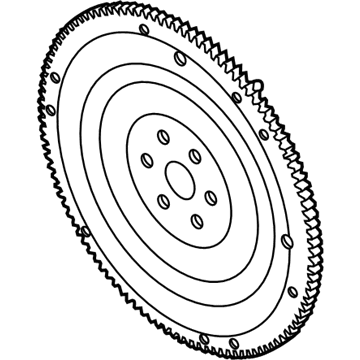

Ford Fusion Flywheel Part Number: 8E5Z-6375-A
Product Specifications
- Other Name: Flywheel And Ring Gear Assembly; Clutch Flywheel
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2012 Ford Fusion | S, SE, SEL | 4 Cyl 2.5 L GAS
View related parts
Ford Fusion Drive Plate Part Number: 5M8Z-6375-BB
Product Specifications
- Other Name: Plate Assembly - Converter Drive; Automatic Transmission Flexplate; Flywheel
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2009 Ford Fusion | S, SE, SEL | 4 Cyl 2.3 L GAS
View related parts
Ford Fusion Drive Plate Part Number: 9L8Z-6375-A
Product Specifications
- Other Name: Flywheel Assembly; Automatic Transmission Flexplate; Flywheel
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2012 Ford Fusion | SE, SEL | 6 Cyl 3.0 L FLEX
View related parts
Ford Fusion Drive Plate Part Number: 5M8Z-6375-AA
Product Specifications
- Other Name: Plate Assembly - Converter Drive; Automatic Transmission Flexplate; Flywheel
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2009 Ford Fusion | SE, SEL | 6 Cyl 3.0 L GAS
View related parts
Ford Fusion Flywheel Part Number: 2L8Z-6375-A
Product Specifications
- Other Name: Flywheel And Ring Gear Assembly; Clutch Flywheel
- Replaces: 2L8Z-6375-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2009 Ford Fusion | S, SE, SEL | 4 Cyl 2.3 L GAS

Ford Fusion Flywheel

OEM Flywheel boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Flywheel with long life and a perfect fit. Come to our website and find genuine Ford Fusion parts. We keep a wide inventory of OEM Fusion parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

Ford Fusion Flywheel Parts and Q&A

Drive Plate
5M8Z-6375-BB
Q: How to service the flywheel on Ford Fusion?
A:
The first step to service the flywheel requires setting the vehicle to neutral position while it sits on a hoist. You should start with clutch removal before working on the 6 bolts which secure the flywheel. Install special bolts for installation only since standard bolts do not function properly. According to the installation sequence install the flywheel while tightening bolts in three stages beginning with 50 Nm (37 ft. lbs.) then moving to 80 Nm (50 ft. lbs.) and ending with 112 Nm (83 ft. lbs.). The next step is to put back both the clutch and manual transaxle unit after having secured the flywheel.
Flywheel
2L8Z-6375-A
Q: How to Remove and Replace a Flywheel Using Special Bolts on Ford Fusion?
A:
Start the flywheel removal and installation procedure by having the vehicle in neutral gear on a hoist. Removal of the clutch must precede the process of unbolting the flywheel using its six mounting screws. Installation of the flywheel requires specialized bolts that should not be interchange with regular bolts. Observe a three-step procedure during bolt installation of the flywheel by first tightening to 50 Nm (37 lb-ft), proceeding to 80 Nm (59 lb-ft) and finally countering the bolts to 112 Nm (83 lb-ft). The clamping of the flywheel demands completion before you can begin attaching the clutch and manual transaxle.
