OEM Lincoln Mark LT Brake Pads

Lincoln Mark LT Brake Pads Parts and Q&A

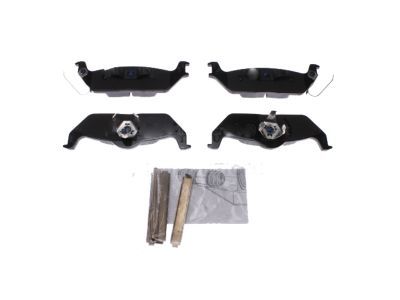

• Brake Pads, Rear
  AU2Z-2V200-A
  Q: How to service and repair the rear brake pads on Lincoln Mark LT?

  A:

  The servicing and repair process for rear brake pads demands the exclusive usage of DOT 3 motor vehicle brake fluid since different fluids will permanently damage brake components and create an unsafe braking condition that could cause injuries to the user. The product label contains important safety warnings which must be read thoroughly together with emergency medical assistance details for Ford/Motorcraft products that can be obtained by dialing 1-800-959-3673. The immediate use of water is required to quickly wash off brake fluid that has touched painted or plastic surfaces. Before moving on check the brake master cylinder reservoir for the brake fluid level thus you must drain some fluid to achieve a half-full status. Place the neutral-gear-equipped vehicle onto a hoisting system. The installation of new pads on complete axle sets becomes necessary when the brake pads reach their specified thickness above both metal backing plate and rivets. Check the pad condition while avoiding hanging the Brake Caliper from the flexible hose by using support equipment. First uninstall two bolts before putting the brake caliper to the side. An inspection of Brake Disc thickness should be made before a disc replacement is needed. Discard the two slippers after removing the pads together with them. An inspection of the disc brake anchor plate assembly must occur with a check for guide pin boot damage while inspecting the guide pins for binding issues and damages; new boots should replace damaged ones while guide pins require lubrication. Pads receive installation if no contaminant including grease oil fluid or brake fluid touches pad lining material while installing uncontaminated pads. You should position the brake caliper after installing both new slippers and brake pads. Then screw in the two bolts while tightening them to 30 Nm (22 lb-ft). Conclude the procedure by checking brake function.

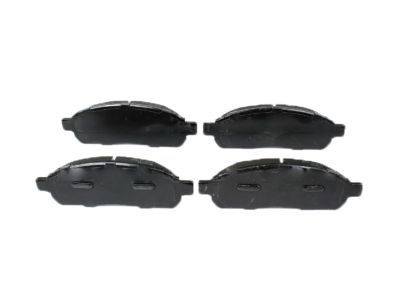

• Brake Pads, Front
  4U2Z-2V001-CA
  Q: How to service and repair the front brake pads on Lincoln Mark LT?

  A:

  The front brake pad repair process requires using DOT 3 motor vehicle brake fluid since other fluids will permanently damage brake components making the vehicle unable to brake leading to personal injury. Prepare by checking both the product label warnings and reach out to 1-800-959-3673 when requiring emergency Ford/Motorcraft product information. Chances of fluid contamination on painted or plastic materials require instant water rinsing to prevent damage. Examine the brake fluid level inside the brake master cylinder reservoir then drain some fluid if needed to reach half full. The vehicle needs to be placed on a hoist while in neutral gear position. The brake hose must not support the caliper to protect it from damage. Support the caliper using mechanic's wire after you remove its two brake caliper guide pin bolts. To replace the brake pads you must first eliminate the spring clips as well as remove both pads and then install fresh brake pads only when the existing pads breach the established restrictions regarding metal backing plate clearance. All pad installation should be grouped in complete axle pairings. Check the brake pads to determine their conditions through examination and testing. Each brake disc pad set from the manufacturer supplies the required pads for both right-hand and left-hand side brake caliper assembly. Use the right tool to push the piston into the bracket bore while protecting boots and pistons before placing both new brake pads together with new spring clips. Position the brake caliper on the brake caliper anchor plate beginning with the lower caliper guide pin bolt followed by installation and tightening procedure of the two guide pin bolts to 74 Nm (55 ft. lbs.).
