OEM Lincoln Zephyr Windshield

Lincoln Zephyr Windshield Parts and Q&A

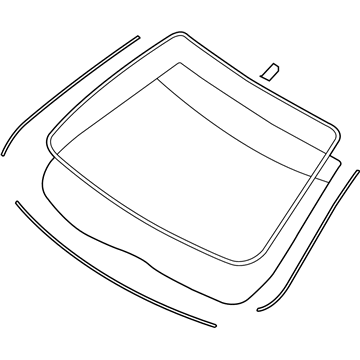

• Windshield
  7H6Z-5403100-A
  Q: How to reseal the windshield on Lincoln Zephyr?

  A:

  Begin the windshield resealing process by stripping away the cowl panel grille followed by putting aside both left-hand (LH) and right-hand (RH) weather strips. Afterward remove the three screws that secure the sun visors ahead of disconnecting their electrical connections before taking out both visors and their clips. Start by taking out the overhead console when needed before you can open screw covers on assist handles and unscrew their two mounting screws to disconnect the handles. Drop the front part of the headliner and stabilize it with appropriate materials for support. Wash both sides of the windshield glass by applying an alcohol-free cleaning solution to its inside and outside surfaces. Today mechanics need to use 6 mm (0.23 in) trimmed urethane adhesive applicator tip with a high-ratio electric or battery-powered caulk gun for applying urethane adhesive to existing urethane until gaps become continuous bead. Urethane adhesive application starts on the windshield top and sides from the inside of the vehicle while the bottom receives urethane from outside. The urethane adhesive needs at least one hour to cure before performing leak checks with a maximum allowed urethane usage. Install the front segment of the headliner and put back the two screws securing the assist handles before placing the assist handle screws back. Following the overhead console operation reinstall the sun visors by properly putting in the clips and reconnecting electrical connections before fastening with three screws. Finish the repair process by placing back the LH and RH A-pillar trim panels and both weather strips while installing the cowl panel grille and using alcohol-free cleaner to clean again the windshield glass surfaces.
