How to Service the Rear ABS Sensor on All AWD on Mercury Montego?

Service of the rear ABS sensor on all AWD vehicles should begin with putting the vehicle in neutral and hoisting it for service. Separate the ABS sensor electrical connector before loosening the sensor bolt which needs to be tightened to 8 Nm (71 inch lbs.) when reinstalling. At the left side, the rear control arm harness spring clip and pin-type retainers must be released before removing the ABS sensor with its pin-type retainer detached. Tank on the right-hand side requires removing the harness spring clip then the two pin-type retainers on the rear control arm before proceeding to disconnect its three pin-type retainers to extract the ABS sensor. When installing the ABS sensor, replace the harness spring clip and two pin-type retainers to their positions on the rear control arm. Also, secure the sensor harness properly in the rear subframe assembly.

How to service the front ABS sensor on Mercury Montego?

Service of front ABS sensor begins by mounting the vehicle on a hoist in neutral position. First disconnect the electrical connector of the ABS sensor before removing the pin-type retainer from the harness. Then continue with further installation steps. The service procedure begins with the removal of two retainers from the ABS sensor harness and subsequent bolt removal from the sensor. The bolt securing the new sensor needs to be tightened to 8 Nm before proceeding with the reverse installation steps.

OEM Mercury Montego ABS Sensor

ABS Wheel Speed Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 ABS Sensors found

View related parts

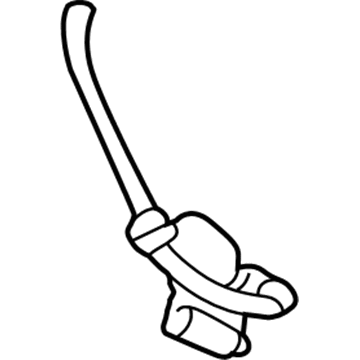

Mercury Montego ABS Sensor, Front Driver Side Part Number: 8G1Z-2C204-A
$51.02 MSRP: $85.49
You Save: $34.47 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly; ABS Wheel Speed Sensor, Front, Front Left, Front Right; ABS Speed Sensor; Front Speed Sensor; ABS Wheel Speed Sensor
- Manufacturer Note: RH/LH
- Position: Front Driver Side
- Replaces: 7F9Z-2C204-A, 5F9Z-2C204-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Montego | Luxury, Premier | 6 Cyl 3.0 L GAS
View related parts

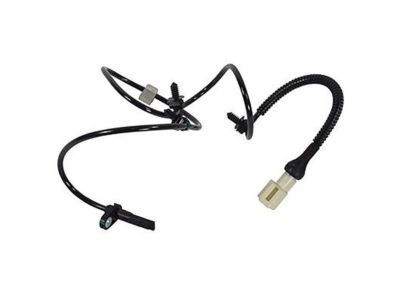

Mercury Montego ABS Sensor, Rear Driver Side Part Number: 7F9Z-2C216-A
$33.50 MSRP: $45.59
You Save: $12.09 (27%)
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly; ABS Wheel Speed Sensor, Rear Left; Rear Speed Sensor; ABS Wheel Speed Sensor
- Manufacturer Note: Rear
- Position: Rear Driver Side
- Replaces: 5F9Z-2C190-DA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Montego | Luxury, Premier | 6 Cyl 3.0 L GAS
View related parts

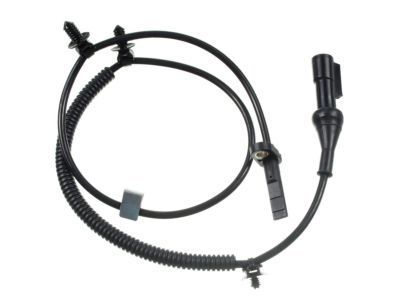

Mercury Montego ABS Sensor, Rear Driver Side Part Number: 7F9Z-2C216-B
$36.13 MSRP: $49.16
You Save: $13.03 (27%)
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly; ABS Wheel Speed Sensor, Rear Left; Rear Speed Sensor
- Manufacturer Note: Rear
- Position: Rear Driver Side
- Replaces: 5F9Z-2C190-CA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Montego | Luxury, Premier | 6 Cyl 3.0 L GAS
View related parts

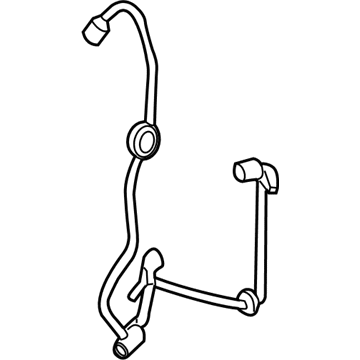

Mercury Montego ABS Sensor, Rear Passenger Side Part Number: 7F9Z-2C190-B
Product Specifications
- Other Name: Sensor Assembly; ABS Wheel Speed Sensor, Rear Right; Rear Speed Sensor
- Manufacturer Note: Rear
- Position: Rear Passenger Side
- Replaces: 5F9Z-2C190-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Montego | Luxury, Premier | 6 Cyl 3.0 L GAS
View related parts
Mercury Montego ABS Sensor, Rear Passenger Side Part Number: 7F9Z-2C190-A
Product Specifications
- Other Name: Sensor Assembly; ABS Wheel Speed Sensor, Rear Right; Rear Speed Sensor
- Manufacturer Note: Rear
- Position: Rear Passenger Side
- Replaces: 5F9Z-2C190-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Mercury Montego | Luxury, Premier | 6 Cyl 3.0 L GAS

Mercury Montego ABS Sensor

OEM ABS Sensor boasts unmatched quality. Each part goes through full quality checks. They adhere to Mercury's official factory standards. These steps remove flaws and inconsistencies. So you can get ABS Sensor with long life and a perfect fit. Come to our website and find genuine Mercury Montego parts. We keep a wide inventory of OEM Montego parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

Another component is Mercury Montego ABS Sensor associated with Anti-lock Braking System (ABS) which is recognized as highly reliable and effective in the case of Mercury Montego of different years of release. This sensor has significantly important function to detect the rotation of wheels and pass on important information to the vehicles computer system to deliver right amount of brakes for safe and effective control. Since the ability to lock the wheels hampers nimbleness, and may at times prove to be dangerous, the Mercury Montego ABS Sensor can be seen as one of the valuable improvements in the field of car industry. By using such technology as Hall effect sensors or electromagnetic coils, the ABS Sensor is capable of providing the ABS with voltage signals which enable the adjustment of the braking pressure. Although it can slightly lose its efficiency at low speed, the Mercury Montego ABS Sensor is still crucial for vehicles safety. Mercury Montego cars produced between 1968 and 2007 includes sedans, coupes, and stations wagons of different generations which were all enriched with this kind of ABS technology. Standard equipment such as the air bags as well as a fairly large interior make the Mercury Montego quite safe and comfortable for passengers. In addition to flexibility in various operations, the ABS Sensor reinforces its reliability in delivering a good drive, constantly adjusting for different driving scenarios for a smooth ride of the Mercury Montego. In sum, Mercury Montego ABS Sensor is another perfect product of Mercury Motors that reflects the company's priority and concern with providing customers with the high quality and reliable components of automobile; it acts as a guarantee of increased security and effective performance on the road for every owner of Mercury Montego.

Mercury Montego ABS Sensor Parts and Q&A

ABS Sensor, Rear Passenger Side
7F9Z-2C190-B
Q: How to Service the Rear ABS Sensor on All AWD on Mercury Montego?
A:
Service of the rear ABS sensor on all AWD vehicles should begin with putting the vehicle in neutral and hoisting it for service. Separate the ABS sensor electrical connector before loosening the sensor bolt which needs to be tightened to 8 Nm (71 inch lbs.) when reinstalling. At the left side, the rear Control Arm harness spring clip and pin-type retainers must be released before removing the ABS sensor with its pin-type retainer detached. Tank on the right-hand side requires removing the harness spring clip then the two pin-type retainers on the rear control arm before proceeding to disconnect its three pin-type retainers to extract the ABS sensor. When installing the ABS sensor, replace the harness spring clip and two pin-type retainers to their positions on the rear control arm. Also, secure the sensor harness properly in the rear subframe assembly.
ABS Sensor, Front Driver Side
8G1Z-2C204-A
Q: How to service the front ABS sensor on Mercury Montego?
A:
Service of front ABS sensor begins by mounting the vehicle on a hoist in neutral position. First disconnect the electrical connector of the ABS sensor before removing the pin-type retainer from the harness. Then continue with further installation steps. The service procedure begins with the removal of two retainers from the ABS sensor harness and subsequent bolt removal from the sensor. The bolt securing the new sensor needs to be tightened to 8 Nm before proceeding with the reverse installation steps.
