OEM Mercury Mystique Starter
Starter Ignition- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
3 Starters found

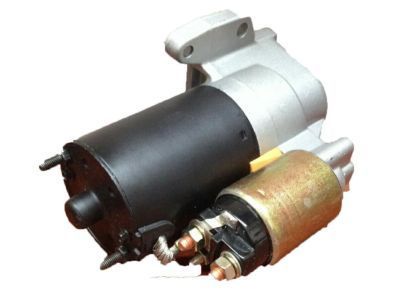

Mercury Mystique Starter Part Number: F3RZ-11002-CRM
Mercury Mystique Starter Part Number: F3RZ-11002-ARM
Mercury Mystique Starter Part Number: F3RZ-11002-BRM
Mercury Mystique Starter
OEM Starter boasts unmatched quality. Each part goes through full quality checks. They adhere to Mercury's official factory standards. These steps remove flaws and inconsistencies. So you can get Starter with long life and a perfect fit. Come to our website and find genuine Mercury Mystique parts. We keep a wide inventory of OEM Mystique parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.
Mercury Mystique Starter Parts and Q&A
- Q: How to service and repair the starter motor on Mercury Mystique?A:The starter motor servicing process starts with removing the positive brush connector nut at the M-terminal of the starter solenoid before removing the two screws on the solenoid and disconnecting it from the rest of the parts. Moreover the drive end housing separation from the starter frame requires removal of two through bolts before extracting the starter drive stop ring from the output shaft through stop ring retainer and ring removal steps. Proceed to remove the starter drive from the output shaft before disconnecting the drive lever and pin from the starter drive along with extracting the output shaft and stationary gear but make sure to retain the armature thrust ball found between the end of the starter motor armature shaft and the output shaft for reassembly. Separate the output shaft from the stationary gear after removing the planet gear retainer and then the armature thrust washer by first taking off the Truarc C-ring and washer. The bolts securing the brush end plate and bushing should be unscrewed first before taking off both components. The starter motor armature must be removed from the starter frame after separating both the brush holder and then the armature. Reverse the disassembly process while applying Ford specification WSG-M1C218-B2 low-temperature grease thinly to both ends of the armature shaft along with its splines for assembly.
