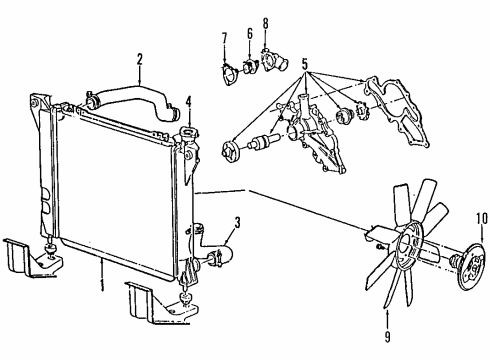

Ford H2MZ-8005-H
Radiator Assembly

The first step when servicing the cooling module requires collecting the A/C refrigerant while draining the cooling system. You must begin by taking off the cooling fan and unhinging the upper degas bottle hose from the radiator by unclipping its clamp. The next step involves disconnecting the hose that runs between the radiator and the radiator. The disconnect process of the A/C manifold tube from the LH condenser requires using a 8 Nm torque wrench for tightening the nut while reinstalling this component. Unfasten the clamp and disconnect this hose while tightening both condenser sides with 8 Nm torque. Starting with the lower radiator hose you should open the clamp then disconnect the tube before opening the clamp to detach the lower degas bottle hose from the radiator. Follow the removal steps by taking out the lower fan shroud bolts then reinstall them with a torque of 7 Nm (62 inch lbs.). Remove transmission cooler hoses by releasing their clamps followed by unscrewing the cooling module retaining bolts before final tightening to 12 Nm (9 ft. lbs.) during installation. End the installation by performing the uninstallation steps in reverse order.

Remove the cooling fan and proceed to take out the components in the specified order.
