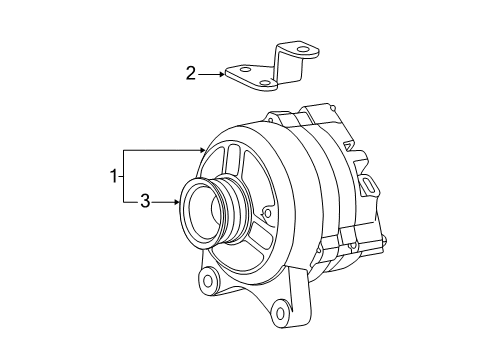

Ford 4U2Z-10V346-HCRM
Alternator

Service and repair of the alternator must start with disconnecting the battery. The noble step is to pull out both the radiator shroud and cooling fan. Release the strain on the accessory drive belt followed by removing it from the generator pulley. Follow this procedure: lower generator bolts should be made loose before disconnecting the harness pin-type retainer from the water-neck housing. First remove the generator bracket retaining bolts after which you can carefully set the generator to the side. Protocols must apply to new style connector connectors with press-to-release tabs because tab pulling can harm the connector or harness structure. Cable the B+ electrical component off and detach its nut and cable before disconnecting the electrical connector. Afterward remove the generator. You should reverse the steps taken for removal during the installation process.

Begin the alternator service work by removing the battery from its installation. The first step involves extracting both the radiator shroud together with the cooling fan. First untie the tension on the accessory drive belt while simultaneously removing it from the generator pulley. The first step involves unfastening the lower generator bolts while you disconnect the pin-type harness retainer from the water-neck housing. Reposition the generator after you remove the bolts that hold the bracket and detach the generator from its place. During use of the new style connector with a release tab be cautious because pulling on the tab risks damaging both the connector and harness. The process begins with generator electrical connection removal and B+ cable cable nut and cable detachment and ends with disconnection of the electrical connector. Reverse the steps from the removal procedure for generator installation.

Begin by disconnecting the battery.

Loosen the lower bolts and remove the generator.
