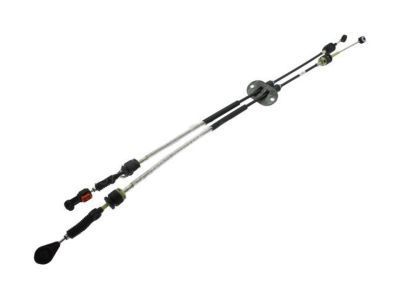

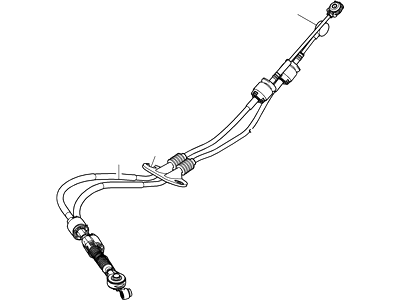

Ford 8S4Z-7E395-A
Shift Control Cable

Start the gearshift cable service and repair by setting the vehicle to NEUTRAL position on a hoist. Start the service by removing the battery tray. You should first disconnect the gearshift cables from the transaxle by using a finger to push the locking tab then removing the shift cable from the shift lever followed by removing the selector cable from the selector lever. The bracket attachment of gearshift cables can be accomplished by removing the abutment sleeve rearward followed by lifting the cables free of the bracket assembly. The exhaust flange needs to be separated from its rubber insulators before reinstallation while it is tightened to 47 Nm (35 ft. lbs.). Loosen and detach the center exhaust hanger before lowering the exhaust system while supporting it with wire. First disconnect the gearshift cables from the underbody cable clip after which remove six screws to separate the heat shield. Detach the floor console and the rear footwell heating duct. Gently pry off the gearshift and selector cables from their attachment to the gearshift lever then advance the abutment collar toward the front. Use a saw to divide the insulation layer after which you should fold it away to expose the floor whereas you need to remove the 2 present cable bracket nuts before extracting the cable bracket while tightening both nuts to 9 Nm (80 inch lbs.) when reinstalling. Take out the gearshift cable assembly by drawing cables through into the interior compartment. During the installation return to the original removal steps while verifying an audible sound indicates proper cable alignment in the retaining bracket. The procedure ends with duct tape coverage of the insulation cut followed by gearshift selector cable adjustment.

The first step for gearshift cable maintenance requires the vehicle to be set in NEUTRAL position and mounted on a hoist. Start by taking out the battery tray followed by unconnecting the gearshift cables from the transaxle through the release button procedure to remove shift cable and selector cable from shift lever and selector lever. The shift cable and selector cable need removal from their bracket retaining points by extracting the abutment sleeve backward. Tighten the exhaust flange to 47 Nm when you reinstall it after disconnecting it from the rubber insulators. First disconnect the central exhaust hanger then lower the exhaust system while supporting it with wire. First remove the gearshift cables from the underbody cable clip before you take out 6 screws to disconnect the heat shield. The performance of the floor console and the rear footwell heating duct must be removed. Disconnect the gearshift and selector cables from the gearshift lever by using a prying motion to remove them while pushing forward the abutment collar. Detach the insulation after cutting it before removing the 2 floor cable bracket nuts to unfasten the bracket from the floor while setting torque to 9 Nm (80 lb-in). Pull the cables inside to remove the gearshift cable assembly but follow the installation process in reverse position to achieve proper cable seating in the retaining bracket while hearing an audible click. The installation of duct tape across the insulation cut follows the adjustment of gearshift and selector cables when needed.
