1993 Ford F-150 Headlamp Components, Park & Side Marker Lamps

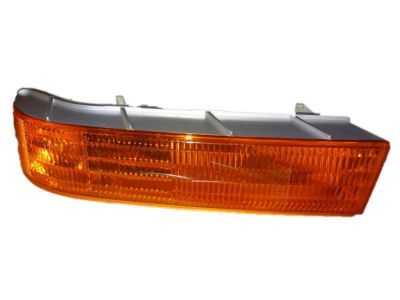

Part Notes: Parking lamp & turn-signal (front) - IND#2458 - (8/94)
Rear lamp - IND#2458 - (8/94)

Part Notes: Rear, backup, IND#3156
Rear, turn/hazard, IND#2456, U/8500 GVW

Part Notes: A/C control - IND#161 - use E7TZ-13711-A socket
Ash receptacle - IND#161
Headlamp & wiper/w -er switch - IND#161
Instrument cluster - Heater control - IND#161 - use E7TZ-13711-A socket

Part Notes: RH & LH door - A pillar, use #E4LY 13C775-A for boot, U/8500 GVW

Part Notes: Bullet type (non-insulated bullet) - for No. 14, 16 and 18 gauge wire

Part Notes: Bullet (pin) type - for 16 gauge wire - 1.18" long x 1/8" O.D.

Part Notes: Snap on (female) - 1/4" blade receptable with lanced tab

Part Notes: Spout connector(timing shorting bar) - TSB # 86-20-8

Part Notes: Shorting bar, to eliminate DRL , Wiring Circuit: 4

Part Notes: Male - black - 11 circuit mates w/ignition switch

Part Notes: A/C cycle switch - 9 and 6 o'clock locating tab - includes 14A468 lock/spacer, U/8500 GVW , Wiring Circuit: 4

Part Notes: Plugs into auto lamp sensor on 14401 6 pin male

Part Notes: 2 cavity, female, Sensor - Camshaft Position , Wiring Circuit: 2
2 cavity, female, Sensor - Crankshaft Position , Wiring Circuit: 2

Part Notes: 2 cavity, male, Motor - Heater A/C Blower

Part Notes: EEC power (Type 12)
Fuel pump (Type 12), Gas
Horn (Type 12)
TT (Type 12), HD TT

Part Notes: Use only with Powercode systems dealer installed accessory kits, 2-button transmitter, "A" in illustration, used only with add-on RKE (part # F7AZ54220K51AA) or 2W7Z19A361AA

Part Notes: Retainer - push pin type - 20mm serrated pin with 60mm x 10mm wing - general use for wiring to sheet metal or blind hole retention. Use electrical tape to secure to harness. 10 per package., Service Repair Only

Part Notes: SIREN: OPTION FOR REMOTE OR STANDARD SYSTEM
