1997 Ford E-350 Econoline Fuel System Components, Fuel Delivery

Part Notes: Attaches to back side of water pump under intake manifold. Slides onto the 8555. O-rings are W704593-S100., 5.4L

Part Notes: Located in middle of tube asy.evaporator inlet/outlet, w/auxiliary A/C

Part Notes: Midship tank. Also serviced in 9034. Cadbar II hose material with bonded 9A064 clamp at one end. Excludes loose clamp 9A064, gas unleaded fuel

Part Notes: Kit does not include metal pipe, use 9034 with vehicle, or body builders pipe , (Cutaway) leaded/diesel fuel, without throw away tank

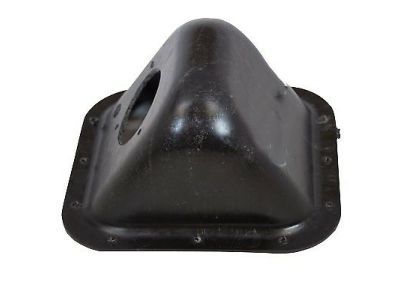

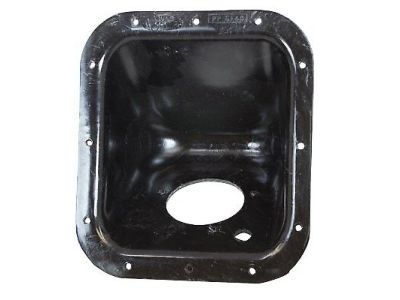

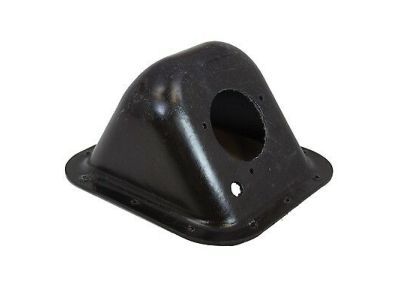

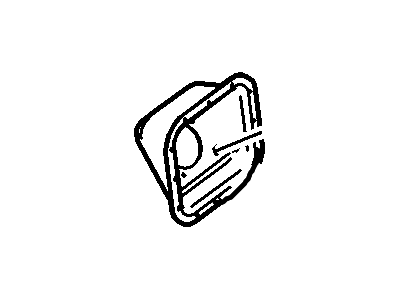

Part Notes: Filler neck mounting holes at 4, 7 & 11 o'clock , Cutaway/Stripped Chassis, gas/diesel

Part Notes: Gas engines, RV prep; caps F7UZ 9S303-AB, Fuel tank aux. drain tube asy., (Stripped Chassis/Cutaway)

Part Notes: M6 x 1.0 x 12 hex head (screw & washer assy.) , midship tank

Part Notes: (AR-51-C) retainer, 6.35mm push connect (duck bill)

Part Notes: (AE-110-EA) push connect, female straight, 3/8" x 5/16" connector asy., 9.5mm tube x 6.4mm hose; type 3

Part Notes: Pressed in block behind water pump; O-rings are W704593- S100

Part Notes: (AR-51-A) retainer, 5/16" tube push connect

Part Notes: Hose asy - A/C, with high output (auxiliary) heat/AC,jumper tube attaches from underbody a/c line to auxiliary evaporator outlet

Part Notes: Hose (bulk) - 5/16" tube size - 25 ft. roll

Part Notes: Mounts front fuel supply/return/vapor lines (9S273/9S274/9D676). Nylon clip 3 tube holder 52mm wide w/mtg stem., Gas

Part Notes: Cap-Threaded end-fuel filter. Screws into top of 9N180. Also serviced in 9155., 7.3L, BEFORE 1/12/98

Part Notes: Short A/C tube that attaches from the underbody tube to the auxiliary evaporator tube, with high output (auxiliary) heat/AC, 3/8" O.D.

Part Notes: Pressed in block behind water pump; O-rings are W704593-S100

Part Notes: 20" long. Also serviced in 9B149 kits, Cutaway/Stripped Chassis-Diesel

Part Notes: Use with midship fuel tank., Regular/Extended Vans/Wagons-Unleaded/Leaded/Diesel fuels

Part Notes: (AI-110-DA) push connect, female straight 5/16" connector asy., 7.9mm tube x 6.3mm hole push connect; type 3

Part Notes: Plastic, use with 5/16" outlet tube; also serviced in 9H307/9A407 asy.; 2 3/4" long, w/mechanical fuel pump

Part Notes: Clip 12.5mm & clamp 18mm with tether. Attach fuel supply line to fuel rail., Gas

Part Notes: Attaches to back side of water pump under intake manifold. Slides onto the 8555. O-rings are W704593-S100., 6.8L

Part Notes: Aft axle tank, 1 1/2" I.D. x 20" long. Part is also serviced in 9B149 kits., gas
Aft axle tank, 1 1/2" I.D. x 20" long. Part is also serviced in 9B149 kits., gas, Stripped Chassis/Cutaway

Part Notes: #2 in illustration - Return hose, less a/c, 5/8" quick connect
#2 in illustration - Return hose, less high output (auxiliary) heater/ac, 5/8" quick connect
#2 in illustration - Return hose, with manual ac and less heater/ac prep pack or less heater/ac prep pack deluxe, 5/8" quick connect

Part Notes: A/C low pressure tube asy, with heater/AC prep pack or prep pack deluxe, 3/4" O.D., attaches from under hood 19E558 A/C line assembly to 19752 valve located under LH front door

Part Notes: Cartridge type - mounts to frame, (Cutaway)

Part Notes: 17.45mm O.D. x 19mm long, vented plug for vapor valve, 7.3L DI Turbo

Part Notes: Clip 9.0mm & clamp 18mm with tether. Attach fuel supply line to fuel rail., Gas

Part Notes: TUBING - STEEL - 3/16" O.D. - SUPPLIED IN 25 FT. ROLLS

Part Notes: "L" shaped; 34mm High x 35mm Wide x 14mm Thick.
"L" shaped; 34mm High x 35mm Wide x 14mm Thick. , (Stripped Chassis & Cutaway)

Part Notes: Hose (bulk) - 3/8" tube size - 25 ft. roll

Part Notes: Rubber dust cap with loop end of tether to fit over fill valve 9C112. Will retrofit for all fill valves., NGV

Part Notes: 3 tube(fuel supply/return/vapor) holder clip w/mtg stem. Also serv in 9S296., Cutaway/Stripped Chassis-Gas
