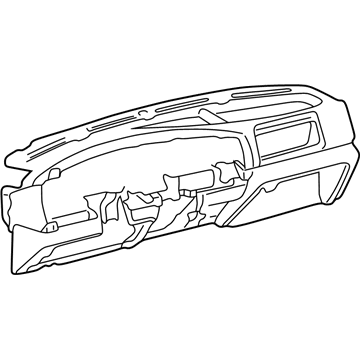

2002 Ford F-250 Super Duty Instrument Panel

Part Notes: (-E*)-Medium Flint - includes sensor, with automatic headlamp control

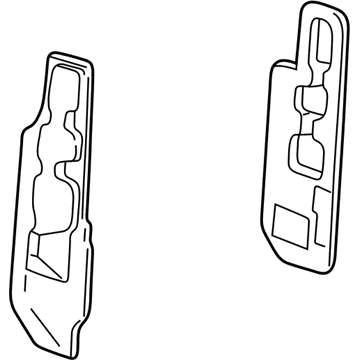

Part Notes: INSULATOR ASY. (INSTRUMENT PANEL SOUND) AND 046A25

Part Notes: Red Light Emitting Diode (LED) & socket for "THEFT" indicator, O/8500 GVW

Part Notes: 12 cavity, female, Junction between 14405 and 13A576 , Wiring Circuit: 12

Part Notes: Multi-function switch, #13K359, 9 cavity connector , Wiring Circuit: 9

Part Notes: A/C cycle switch - 9 and 6 o'clock locating tab - includes 14A468 lock/spacer , Wiring Circuit: 4

Part Notes: 6 cavity, Switch - Passenger Airbag Deactivation (14B268)

Part Notes: 16 Way Male-For Scan Tool, cover and retainer included. Located on 14401 harness

Part Notes: 6 cavity, male, Sensor - Mass Air Flow , Wiring Circuit: 6

Part Notes: 3 cavity to alternator , Wiring Circuit: 3

Part Notes: Multi-function switch, #13K359, 7 cavity connector, also part of #14A320, O/8500 GVW , Wiring Circuit: 7

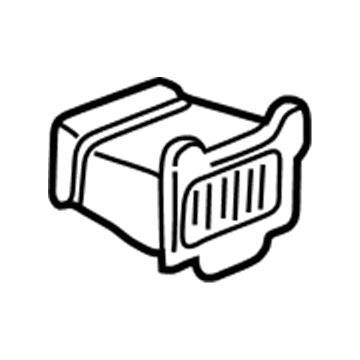

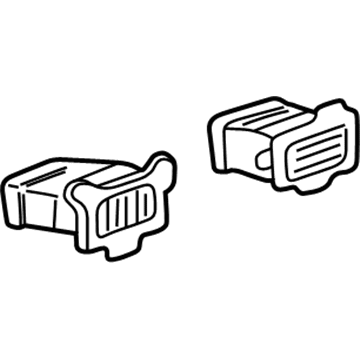

Part Notes: DUCT ASY. (AIR CONDITIONER EVAPORATOR TO REGISTER)

Part Notes: (-E*)-Dark Flint - cupholder and ash tray assembly, Lariat

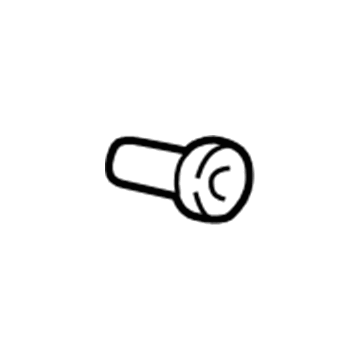

Part Notes: Screw, attaches 7 pin connector to T/T bracket at rear bumper

Part Notes: F5AB-14A464-AB, mates w/12A697 air charge temp sensor, 2 cavity , Wiring Circuit: 2

Part Notes: 2 cavity, male, Fuel injector , Wiring Circuit: 2, Color: Black
2 cavity, male, Lamp - Side Marker - Rear , Wiring Circuit: 2, Color: Black

Part Notes: Kit, 12 cavity, male - for terminals contact FCS at 877-682-4276, Sensor - Transmission Range , Wiring Circuit: 12

Part Notes: Includes #14A348, relays, fuses & IS, 7-pin connector to trailer serviced with #14405, chassis cab, without T/T

Part Notes: Contains (6) ports. Also serviced in 9S278 rear lines, Diesel, dual tanks

Part Notes: 12 cavity, female, Motor - Windshield Wiper

Part Notes: Headlamp connector (spacer #E7DZ-14A468-B)

Part Notes: crew cab, w/power group, w/o power mirror, with RKE

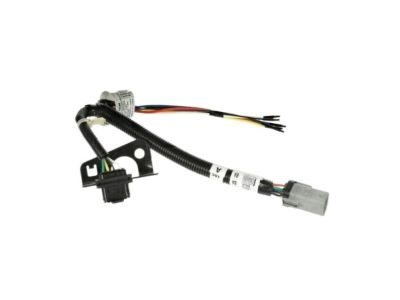

Part Notes: Jumper to aftermarket electric trailer brake controller

Part Notes: connector to ilde validation switch on accelerator pedal

Part Notes: 2 cavity, male, Sensor - Engine Temperature

Part Notes: Retainer - push pin type - 20mm serrated pin with 60mm x 10mm wing - general use for wiring to sheet metal or blind hole retention. Use electrical tape to secure to harness. 10 per package., Service Repair Only

Part Notes: Central junction box-under dash. Separate under hood fuse box no longer used. Interfaces with 12A581, 14401, and 14A005., Used for both Gas and Diesel Engines

Part Notes: Christmas tree with 6 inch adjustable plastic tie

Part Notes: 4-pin connector to trailer and 7-wire terminals to trailer needing connector 14489 and bracket 14A163 found in F81Z-15A416-CA. (NOTE: Refer to 14S411 for connector repair)., w/light and heavy duty T/T, w/o rear bumper

Part Notes: 2 cavity male (delete cap part number 3C3Z-14489-AC), Air filter
2 cavity, male (may also cut and splice from F8VZ-9F759-AA), Daytime running light resistor

Part Notes: Contains F4TZ-14489-M, #14A348 and IS. Kit to add aftermarket trailer brake controller., w/heavy duty T/T

Part Notes: Junction block, single stud. Positive battery cable and fuse box cable feed junction block. (Diesel has fuse box cable attach directly to battery positve post/cable)., w/gasoline engines

Part Notes: 2 cavity, male, Motor - Heater A/C Blower
