2002 Ford Ranger Cluster & Switches, Instrument Panel

Part Notes: 1998-2003, W/O Tachometer;1998-2003, W/Tachometer

Part Notes: 8 cavity, male, Fuel Pump/Sending Unit, Flex Fuel

Part Notes: 2 cavity, female, Speaker - Door (Rear)
2 cavity, female, Speaker - Front
2 cavity, female, Speaker - Rear

Part Notes: 3 cavity, female, Switch - Heater A/C Temperature Control

Part Notes: 2 cavity, male, Solenoid - EGR Vacuum Regulator

Part Notes: 3 cavity, female, Sensor - Fuel Tank Pressure Transducer

Part Notes: 4 cavity, female, Transciever - Passive Anti-Theft (PATS)

Part Notes: 3 cavity, male, Switch - Inertia (Fuel Pump)

Part Notes: 10 cavity, male, Module - Transfer Case Shift Control

Part Notes: 2 cavity, female, Sensor - Camshaft Postion, 3.0
2 cavity, female, Sensor - Crankshaft Postion, 3.0

Part Notes: F5AB-14A464-AB, mates w/12A697 air charge temp sensor, 2 cavity , Wiring Circuit: 2

Part Notes: Kit to add spade type starter solenoid when vehicle had spade type

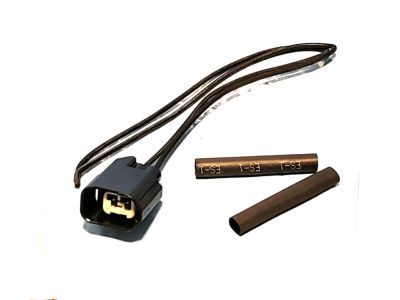

Part Notes: 2 cavity, male - includes (1) connector (1) boot, (2) terminal pigtails,(2) heat shrink butt connectors, Speed sensor

Part Notes: 7 cavity, female, Switch - Multi-function (steering column)

Part Notes: 2 cavity, female, Lamp - Front Side Marker

Part Notes: 2 cavity, male, Sensor - Cylinder Head Temperature, 2.3

Part Notes: 2 cavity, female, Sensor - Camshaft Position, 4.0
2 cavity, female, Sensor - Crankshaft Position, 4.0

Part Notes: 2 cavity, male, Sensor - Air Charge Temperature, 3.0, 4.0

Part Notes: 2 cavity, female, Motor - Power Window - LH - Front
2 cavity, female, Motor - Power Window - RH - Front

Part Notes: 4 cavity, female, Module - Warning Chime/Beltminder

Part Notes: 9 cavity, male, 16 gauge, Switch - Multifunction (steering column)

Part Notes: Located in rear axle housing, used as ABS sensor

Part Notes: Ash tray- IND#161
Heater control illumination - IND#161
Heater/a/c control IND#161
Instrument cluster - A/C control illumination - IND#161

Part Notes: F5AB-14A464-AB, mates w/12A697 air charge temp sensor, 2 cavity , Wiring Circuit: 2

Part Notes: On 13A724 to 14630-1 16 pin contains F2UB 14487-AA terminals, F2AB 14A468-CA spacer

Part Notes: Anti-theft starter interrupt (Type 12)
Power window (Type 12)

Part Notes: 3 cavity, female, Sensor - Throttle Position

Part Notes: 4 cavity, male, Switch - Heater A/C Blower

Part Notes: 5 cavity, female, Motor - Windshield Wiper

Part Notes: 3 cavity 2 wire, male, Lamp - Reverse, FROM 11/13/00

Part Notes: 3 cavity, male, Lamp - Headlamp - High/Low Beam

Part Notes: 4 cavity, male, Sensor - Catalyst Monitor

Part Notes: 3 cavity, male, Sensor - Brake Fluid Level

Part Notes: 4 cavity, female, Sensor - Manifold Absolute Pressure (MAP), 2.3

Part Notes: 2 cavity, male - gold plated terminals, Sensor - Coolant Temperature, except 2.3

Part Notes: 2 cavity, male (10 gauge), Motor - Heater A/C Blower (Front)

Part Notes: Cable and switch asy - A/C temperature control, Includes both potentiometer and control cable

Part Notes: Black, (FX4 Off Road) - with electric transfer case, FROM 04/22/2002
Black, 4X4, w/fog lamps, FROM 04/22/2002

Part Notes: Backup, IND#3156
Backup, corner IND#3156
Rear, stop/turn, IND#3156

Part Notes: Spout connector(timing shorting bar) - TSB # 86-20-8, w/o power steering , Wiring Circuit: 2, Color: Black

Part Notes: Multi-function switch, #13K359, 7 cavity connector, also part of #14A320 , Wiring Circuit: 7

Part Notes: A/C WOT (Type 12)
ABS module power (Type 12)
ABS pump motor (Type 12)
Blower motor (Type 12)
EEC power (Type 12)
Fuel pump (Type 12)

Part Notes: 6 cavity, male, gold terminals, Sensor - Mass Air Flow

Part Notes: 2 cavity, female, Fuel injector, with 2.3 or 3.0

Part Notes: 2 cavity, male (Tin terminals), Solenoid - Canister Vent

Part Notes: 2 cavity, female, Control - Engine Air Shutoff, 2.3

Part Notes: 1 cavity, male, Switch - Oil Sending Unit

Part Notes: Red Light Emitting Diode (LED) & socket for "THEFT" indicator

Part Notes: Alternator regulator, 1-pin connector, 4.0L

Part Notes: Kit, 12 cavity, male - for terminals contact FCS at 877-682-4276, Sensor - Transmission Range

Part Notes: 4 cavity, female, Switch - A/C Compressor Clutch Cycling
4 cavity, female, Switch - A/C Pressure Cut Off

Part Notes: 4 cavity, male (10 gauge), Resistor - Blower Motor

Part Notes: 2 cavity, female, Sensor - Heated Thermostat, 2.3

Part Notes: 1 cavity, male, Capacitor - Ignition/Radio

Part Notes: 2 cavity, male, Switch - Coolant Temperature Sending Unit, 2.3

Part Notes: 2 cavity, female, Sensor - Crankshaft Position, 2.5

Part Notes: 10 cavity, male, Actuator - Speed Control

Part Notes: 5 cavity, male, Switch - Power Window - Passenger

Part Notes: Black, (FX4 Off Road) - with manual transfer case, FROM 04/22/2002
Black, 4X2, w/fog lamps, FROM 04/22/2002

Part Notes: 2 cavity, male, Motor - Idle Air Control, 4.0 and 2.3
2 cavity, male, Motor - Windshield Washer Fluid Pump

Part Notes: 3 cavity, male, Lamp - CHMSL (Center High Mount Stop Lamp)

Part Notes: Black, 4X2, w/o fog lamps, FROM 04/22/2002

Part Notes: Multi-function switch, #13K359, 9 cavity connector, also part of #14A320 , Wiring Circuit: 9

Part Notes: 3 cavity, female, Sensor - Delta Pressure Feedback EGR

Part Notes: 2 cavity, male, Motor - Heater A/C Blower (front)

Part Notes: 8 cavity, female, Motor - Heater/AC Blend Door

Part Notes: 2 cavity, male , Fuel Injector, 4.0
2 cavity, male , Switch , Power Steering Pressure

Part Notes: 4 cavity, male, Fuel Pump/Sending Unit, 2.3

Part Notes: 12 cavity, male, Sensor - Transmission Range

Part Notes: 5 cavity, female - 3 leads 10 gauge, 2 leads 12 gauge, Relay - Flasher

Part Notes: 16 cavity, male, Test Connector - Diagnostic
