2017 Ford F-150 Engine & Trans Mounting

Currently shopping for

2017 Ford F-150

Change Vehicle

Categories Close X

Currently selected

Engine

Other Categories

A/C & Heating

Air & Fuel Delivery

Belts & Cooling

Body & Hardware

Brakes

Charging & Starting

Driveline & Axles

Electrical

Emission Control & Exhaust

Headlights & Lighting

Interior & Exterior Trim

Maintenance & Lubrication

Steering

Suspension

Transmission

Parts Questions

5 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

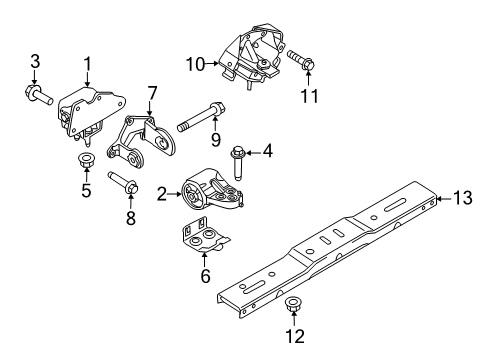

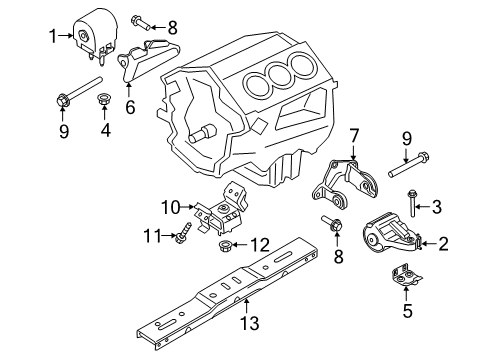

1.Engine & Trans Mounting (2.7L)
2.Engine & Trans Mounting (3.5L With Turbocharger)
3.Engine & Trans Mounting (3.5L Without Turbocharger)
4.Engine & Trans Mounting (3.5L), (Raptor)
5.Engine & Trans Mounting (5.0L)

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
HL3Z-6038-F
Insulator Assembly
Motor Mount
Part Notes: 3.5 Liter
Location: Passenger Side
MSRP: $158.77 Your Price: $109.07
1
Add To Cart
1
HL3Z-6038-E
Insulator Assembly
Motor Mount
- Part Notes: 2.7 Liter
- Location: Passenger Side
MSRP: $282.33 Your Price: $193.96
1
Add To Cart
1
HL3Z-6038-G
Insulator Assembly
Motor Mount
- Part Notes: 3.5 Liter W/O Turbo;3.5 Liter W/Turbo, 2017-20
- Location: Passenger Side
MSRP: $190.67 Your Price: $130.99
1
Add To Cart
1
HL3Z-6038-K
Insulator Assembly
Motor Mount
- Part Notes: 5.0 Liter, 2015-2017
- Location: Passenger Side
MSRP: $186.67 Your Price: $128.24
1
Add To Cart

2
HL3Z-6038-A
Insulator Assembly - Engine Support
Motor Mount
Part Notes: 3.5 Liter;3.5 Liter W/Turbo, 2017-20
Location: Driver Side
MSRP: $216.33 Your Price: $148.62
2
HL3Z-6038-B
Insulator Assembly - Engine Support
Motor Mount
- Part Notes: 2.7 Liter;3.5 Liter W/O Turbo
- Location: Driver Side
MSRP: $209.00 Your Price: $143.58
2
HL3Z-6038-C
Insulator Assembly - Engine Support
Motor Mount
- Part Notes: 5.0 Liter, 2015-2017
- Location: Driver Side
MSRP: $142.97 Your Price: $98.22
1
Add To Cart

3
-W713244-S439
Bolt
Motor Mount Bolt
Part Notes: 3.5 Liter;3.5 Liter W/Turbo, 2017-20
Location: Driver Side
MSRP: $2.96 Your Price: $1.74
4
Add To Cart
3
-W714735-S439
Bolt
Motor Mount Bolt
- Part Notes: 2.7 Liter;3.5 Liter W/O Turbo;5.0 Liter, 2015-2017
- Location: Passenger Side
MSRP: $0.95 Your Price: $0.56
4
Add To Cart

4
-W713244-S439
Bolt
Motor Mount Bolt
Part Notes: 2.7 Liter;3.5 Liter W/O Turbo;5.0 Liter, 2015-2017
Location: Driver Side
MSRP: $2.96 Your Price: $1.74
4
Add To Cart
4
-W716530-S440
Nut And Washer Assembly - Hex.
Motor Mount Nut
- Part Notes: 3.5 Liter;3.5 Liter W/Turbo, 2017-20
- Location: Passenger Side
MSRP: $2.23 Your Price: $1.30
4
Add To Cart

5
-W716530-S440
Nut And Washer Assembly - Hex.
Motor Mount Nut
Part Notes: 2.7 Liter;3.5 Liter W/O Turbo;5.0 Liter, 2015-2017
Location: Passenger Side
MSRP: $2.23 Your Price: $1.30
4
Add To Cart

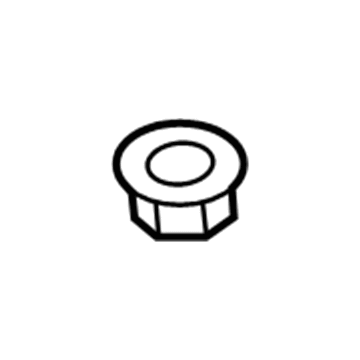

5
-W716699-S439
Nut
Motor Mount Nut
- Part Notes: 3.5 Liter;3.5 Liter W/Turbo, 2017-20
- Location: Driver Side
MSRP: $12.50 Your Price: $7.34
4
Add To Cart

6
-W716699-S439
Nut
Motor Mount Nut
- Part Notes: 2.7 Liter;3.5 Liter W/O Turbo;5.0 Liter, 2015-2017
- Location: Driver Side
MSRP: $12.50 Your Price: $7.34
4
Add To Cart

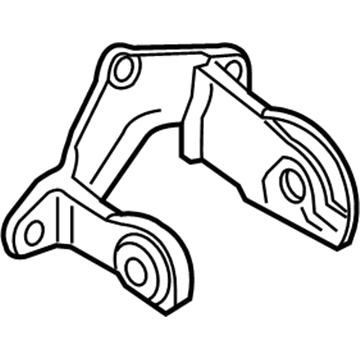

6
HL3Z-6030-A
Bracket
Mount Bracket
- Part Notes: 3.5 Liter
- Location: Passenger Side
MSRP: $163.90 Your Price: $112.60
1
Add To Cart

6

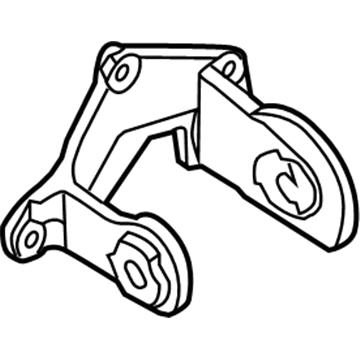

HL3Z-6030-B
Bracket
Support
- Part Notes: 3.5 Liter W/Turbo, 2017-20, 133" Wheelbase;3.5 Liter W/Turbo, 2017-20, 141", 157" 163" Wheelbase, 141", 157" 163" Wheelbase
- Location: Passenger Side
- Replaced By: JL3Z-6030-A
MSRP: $140.98 Your Price: $96.86
1
Add To Cart

7
FL3Z-6038-D
Insulator Assembly
Mount Bracket
Part Notes: 2.7 Liter
Location: Driver Side
MSRP: $114.03 Your Price: $74.10
1
Add To Cart
7
HL3Z-6030-B
Bracket
Mount Bracket
- Part Notes: 3.5 Liter W/O Turbo
- Location: Passenger Side
- Replaced By: JL3Z-6030-A
MSRP: $140.98 Your Price: $96.86
1
Add To Cart
7
HL3Z-6038-H
Insulator Assembly
Mount Bracket
- Part Notes: 3.5 Liter W/O Turbo;3.5 Liter W/Turbo, 2017-20, 141", 157" 163" Wheelbase, 141", 157" 163" Wheelbase
- Location: Driver Side
MSRP: $121.37 Your Price: $78.86
1
Add To Cart
7
JL3Z-6038-F
Insulator Assembly
Mount Bracket
- Part Notes: 3.5 Liter;3.5 Liter W/Turbo, 2017-20, 133" Wheelbase
- Location: Driver Side
MSRP: $138.78 Your Price: $95.34
1
Add To Cart
7
ML3Z-6038-T
Insulator Assembly
Mount Bracket
- Part Notes: 5.0 Liter, 2015-2017
- Location: Driver Side
MSRP: $145.57 Your Price: $100.00
1
Add To Cart

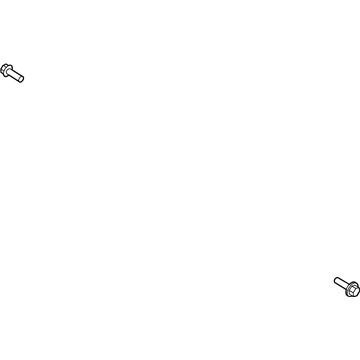

8
-W714735-S439
Bolt
Mount Bracket Mount Bolt
- Part Notes: 2.7 Liter;3.5 Liter;3.5 Liter W/O Turbo;3.5 Liter W/Turbo, 2017-20;5.0 Liter, 2015-2017
- Location: Driver Side;Passenger Side
MSRP: $0.95 Your Price: $0.56
4
Add To Cart

9
-W715211-S439
Bolt
Mount Bracket Mount Bolt
- Part Notes: 2.7 Liter;3.5 Liter;3.5 Liter W/O Turbo;3.5 Liter W/Turbo, 2017-20;5.0 Liter, 2015-2017
- Location: Driver Side;Passenger Side
MSRP: $7.45 Your Price: $4.38
4
Add To Cart

10
GL3Z-6068-E
Insulator Assembly - Engine Support
Transmission Mount
Part Notes: 5.0 Liter, 2015-2017
MSRP: $118.48 Your Price: $81.40
1
Add To Cart
10
FL3Z-6068-E
Insulator Assembly - Engine Support
Transmission Mount
- Part Notes: 2.7 Liter, W/4WD
MSRP: $116.28 Your Price: $79.89
1
Add To Cart
10
GL3Z-6068-D
Insulator Assembly - Engine Support
Transmission Mount
- Part Notes: 2.7 Liter, W/O 4WD;3.5 Liter W/O Turbo
MSRP: $180.03 Your Price: $123.68
1
Add To Cart
10
HL3Z-6068-E
Insulator Assembly - Engine Support
Transmission Mount
- Part Notes: 3.5 Liter;3.5 Liter W/Turbo, 2017-20, W/4WD
MSRP: $175.08 Your Price: $120.28
1
Add To Cart
10
HL3Z-6068-F
Insulator Assembly - Engine Support
Transmission Mount
- Part Notes: 3.5 Liter W/Turbo, 2017-20, W/O 4WD
MSRP: $176.92 Your Price: $121.54
1
Add To Cart

11
-W711140-S901
Bolt
Transmission Mount Bolt
Part Notes: 2.7 Liter;3.5 Liter W/O Turbo;5.0 Liter, 2015-2017
MSRP: $6.65 Your Price: $3.91
4
Add To Cart
11
-W718353-S900
Bolt
Transmission Mount Bolt
- Part Notes: 3.5 Liter;3.5 Liter W/Turbo, 2017-20
MSRP: $4.25 Your Price: $2.50
4
Add To Cart

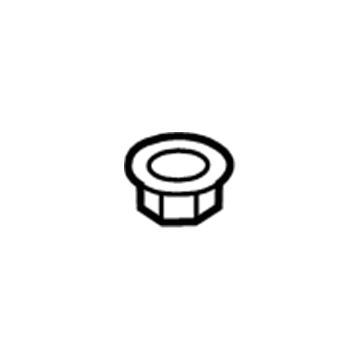

12
-W709771-S440
Nut - Adjusting Screw
Transmission Mount Nut
- Part Notes: 2.7 Liter;3.5 Liter;3.5 Liter W/O Turbo;3.5 Liter W/Turbo, 2017-20;5.0 Liter, 2015-2017
MSRP: $3.32 Your Price: $1.95
1
Add To Cart

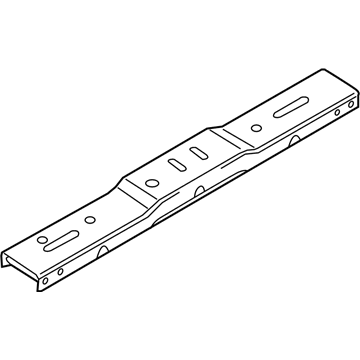

13
FL3Z-6A023-A
Support
Trans Crossmember
- Part Notes: 2.7 Liter;3.5 Liter;3.5 Liter W/O Turbo;3.5 Liter W/Turbo, 2017-20;5.0 Liter, 2015-2017
MSRP: $439.72 Your Price: $299.45
1
Add To Cart

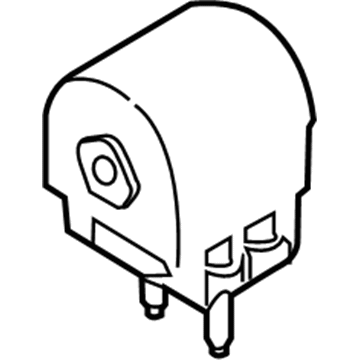

HL3Z-6068-C
Insulator Assy - Engine Support
- Fit Note: 141"/3581MM Wheelbase, 145"/3675MM Wheelbase, 157"/3989MM Wheelbase, 163"/4140MM Wheelbase
- Production Date: 09/2016-08/2017
- Fitting Vehicle Options: 6 Cyl 2.7L, 6 Cyl 3.3L Duratec, 6 Cyl 3.5L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L GTDI, 8 Cyl 5.0L Coyote, 8 Cyl 5.0L MOD DOHC SEFI NA, Crew Cab, Super Cab, Four-Wheel Drive (Part Time) (Left Hand Drive), King Ranch, Lariat, Limited, Premium, XL, XLT
- Callout Name: 6068
- Replaced By: HL3Z-6068-E
MSRP: $175.08 Your Price: $120.28
View Details

GL3Z-6068-B
Insulator Assy - Engine Support
- Production Date: 10/2015-07/2017
- Fitting Vehicle Options: 6 Cyl 2.7L, 6 Cyl 3.3L Duratec, 6 Cyl 3.5L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L GTDI, 8 Cyl 5.0L Coyote, 8 Cyl 5.0L MOD DOHC SEFI NA, Rear-Wheel Drive (Left Hand Drive)
- Callout Name: 6068
- Replaced By: GL3Z-6068-E
MSRP: $118.48 Your Price: $81.40
View Details

FL3Z-6068-F
Insulator Assy - Engine Support
- Production Date: 04/2015-07/2017
- Fitting Vehicle Options: 6 Cyl 2.7L, 6 Cyl 3.3L Duratec, 6 Cyl 3.5L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L GTDI, 8 Cyl 5.0L Coyote, 8 Cyl 5.0L MOD DOHC SEFI NA, Four-Wheel Drive (Part Time) (Left Hand Drive)
- Callout Name: 6068
- Replaced By: JL3Z-6068-F
MSRP: $238.00 Your Price: $163.51
View Details

GL3Z-6068-A
Insulator Assy - Engine Support
- Production Date: 09/2016-08/2018
- Fitting Vehicle Options: 6 Cyl 2.7L, 6 Cyl 3.3L Duratec, 6 Cyl 3.5L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L GTDI, 8 Cyl 5.0L Coyote, 8 Cyl 5.0L MOD DOHC SEFI NA, Rear-Wheel Drive (Left Hand Drive)
- Callout Name: 6068
- Replaced By: GL3Z-6068-D
MSRP: $180.03 Your Price: $123.68
View Details

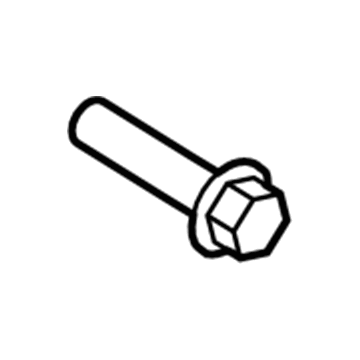

-W711140-S900
Bolt
- Part Notes: M12 x 40MM
- Production Date: From 10/2015
- Fitting Vehicle Options: 6 Cyl 2.7L, 6 Cyl 3.3L Duratec, 6 Cyl 3.5L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L GTDI, 8 Cyl 5.0L Coyote, 8 Cyl 5.0L MOD DOHC SEFI NA, Rear-Wheel Drive (Left Hand Drive)
- Require Quantity: 3
- Package Quantity: 4
- Callout Name: HS1
- Replaced By: -W711140-S901
MSRP: $6.65 Your Price: $3.91
View Details

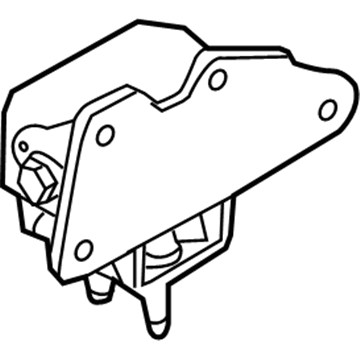

HL3Z-6038-D
Insulator Assy
- Part Notes: Bracket And Insulator
- Location: Passenger Side
- Production Date: 09/2016-01/2017
- Fitting Vehicle Options: 8 Cyl 5.0L MOD DOHC SEFI NA
- Callout Name: 6038C
- Replaced By: HL3Z-6038-K
MSRP: $186.67 Your Price: $128.24
View Details
