Diagram (1 of 1): Transmission Components
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
$111.50 $76.601
- 2
$50.83 $35.531
- 3
$24.50 $17.271
- 4
$96.55 $60.80
- 5
$2.02 $1.071
- 6
$7.83 $5.521

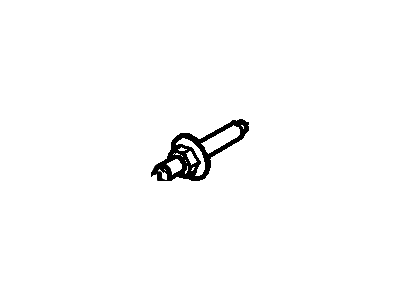

-W719131-S437
Stud- Part Notes: M10 X 1.25 + M8 X 16
- Fit Note: 10-Speed Automatic Transmission (10R80)
- Production Date: From 11/2018
- Require Quantity: 2
- Package Quantity: 4
- Callout Name: HT2
$7.75 $4.56

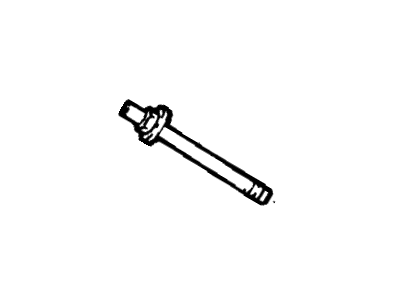

-W715425-S437
Stud- Part Notes: M10 X 45 + M6 X 13
- Fit Note: 10-Speed Automatic Transmission (10R80)
- Production Date: From 11/2018
- Callout Name: HT3
$4.25 $2.50

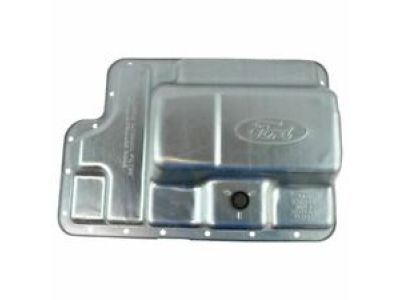

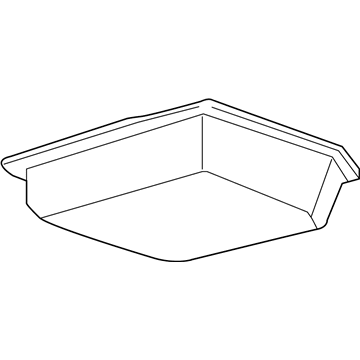

HL3Z-7A194-A
Pan Assy - Transmission Oil- Fit Note: 10-Speed Automatic Transmission (10R80)
- Production Date: From 11/2018
- Callout Name: 7A194
- Replaced By: HL3Z-7A194-C
$111.50 $76.60

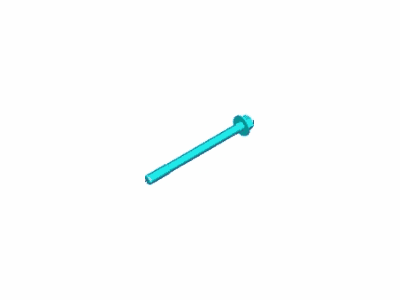

-W712720-S437
Bolt - Hex.Head- Part Notes: M10 X 125MM
- Fit Note: 10-Speed Automatic Transmission (10R80)
- Production Date: From 11/2018
- Require Quantity: 2
- Package Quantity: 4
- Callout Name: HB3
$6.65 $3.91
-W500023-S437
Screw- Part Notes: M8 X 20MM
- Fit Note: 10-Speed Automatic Transmission (10R80)
- Production Date: From 11/2018
- Callout Name: HB5
$3.25 $1.92
-W500326-S437
Bolt - Hex.Head- Part Notes: M10 x 70MM
- Fit Note: 10-Speed Automatic Transmission (10R80)
- Production Date: From 11/2018
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: HB4
$13.00 $7.64

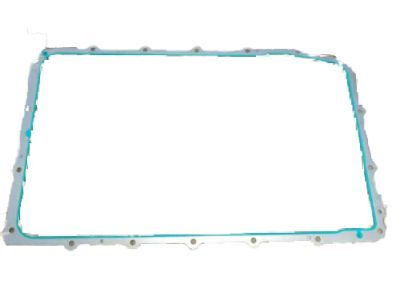

HL3Z-7A191-A

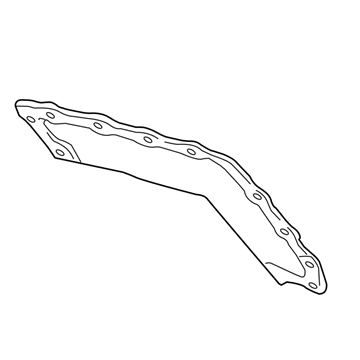

Gasket- Fit Note: 10-Speed Automatic Transmission (10R80)
- Production Date: From 11/2018
- Callout Name: 7A191
- Replaced By: HL3Z-7A191-B
$50.83 $35.53
-W715937-S437
Plug - Blanking - Threaded- Part Notes: M10 x 14MM
- Fit Note: 10-Speed Automatic Transmission (10R80)
- Production Date: From 11/2018
- Require Quantity: 2
- Package Quantity: 4
- Callout Name: 7H398
$4.25 $2.50
-W700123-S300
Bolt- Part Notes: M6 X 71
- Fit Note: 10-Speed Automatic Transmission (10R80)
- Production Date: From 11/2018
- Callout Name: HB2
$8.50 $4.99
-W716240-S437
Plug- Part Notes: M16 X 1.5
- Fit Note: 10-Speed Automatic Transmission (10R80)
- Production Date: From 11/2018
- Callout Name: HP1
$5.65 $3.33
JL1Z-7A010-A
Plug- Fit Note: 10-Speed Automatic Transmission (10R80)
- Production Date: From 11/2018
- Callout Name: 7A010
$20.00 $14.10

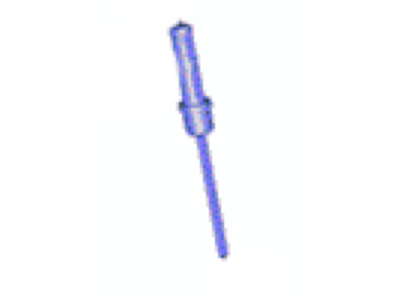

JL1Z-7E049-A

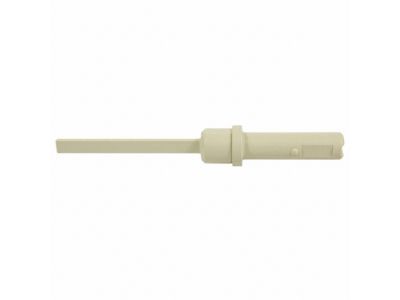

Indicator Assy - Oil Level- Fit Note: 10-Speed Automatic Transmission (10R80)
- Production Date: From 11/2018
- Callout Name: 7D479
$5.20 $3.67
