How to use OE catalog
2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.Steering Gear & Linkage - Steering Gear & Linkage

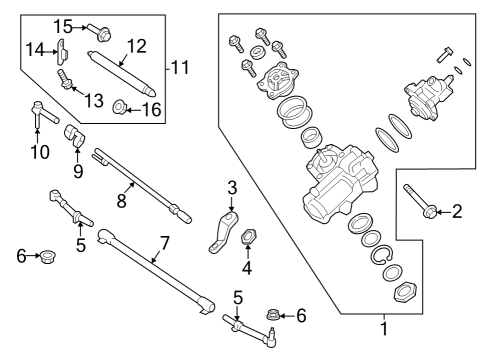

    2025 Ford F-350 Super Duty Steering Gear & Linkage Diagram 1 - Thumbnail
  • 2.Steering Gear & Linkage - Steering Gear & Linkage (XL)

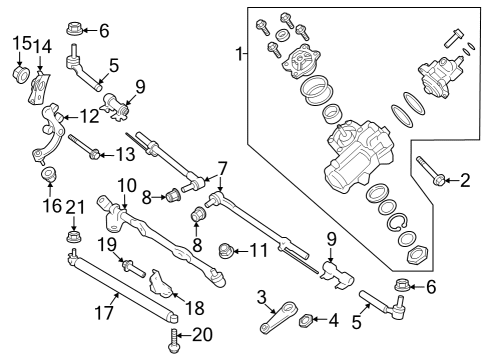

    2025 Ford F-350 Super Duty Steering Gear & Linkage Diagram 2 - Thumbnail
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description

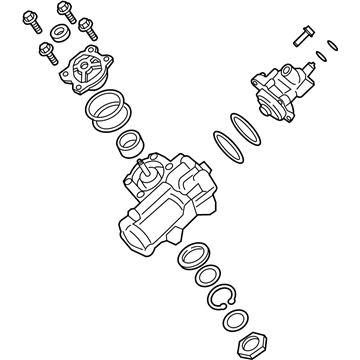

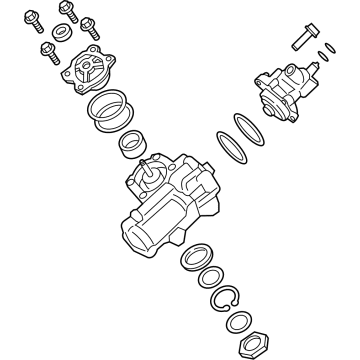

  • 1 Ford HC3Z-3504-G Gear Assembly - Steering
    HC3Z-3504-G
    Gear Assembly - Steering
    Gear Assembly
    • Part Notes: AWD, 164", 176" Wheelbase, Dual Rear Wheel, Without Assist Packages;RWD, 164", 176" Wheelbase, Dual Rear Wheel, Without Assist Packages
    MSRP: $987.27 Your Price: $599.31
    1
    Add To Cart
  • 1 Ford HC3Z-3504-K Gear Assembly - Steering
    HC3Z-3504-K
    Gear Assembly - Steering
    Gear Assembly
    • Part Notes: AWD, 142", 148" Wheelbase, Without Assist Packages;RWD, 142", 148" Wheelbase, Without Assist Packages
    • Replaced By: HC3Z-3504-N
    MSRP: $790.91 Your Price: $467.13
    1
    Add To Cart
  • 1 Ford HC3Z-3504-L Gear Assembly - Steering
    HC3Z-3504-L
    Gear Assembly - Steering
    Gear Assembly
    • Part Notes: AWD, 160" Wheelbase, Without Assist Packages;AWD, 164", 176" Wheelbase, Single Rear Wheel, Without Assist Packages;RWD, 160" Wheelbase, Without Assist Packages;RWD, 164", 176" Wheelbase, Single Rear Wheel, Without Assist Packages
    • Replaced By: HC3Z-3504-M
    MSRP: $894.55 Your Price: $525.00
    1
    Add To Cart
  • 1 Ford LC3Z-3504-A Gear Assembly - Steering
    LC3Z-3504-A
    Gear Assembly - Steering
    Gear Assembly
    • Part Notes: AWD, 160" Wheelbase, With Assist Packages;AWD, 164", 176" Wheelbase, Dual Rear Wheel, With Assist Packages;AWD, 164", 176" Wheelbase, Single Rear Wheel, With Assist Packages;RWD, 160" Wheelbase, With Assist Packages;RWD, 164", 176" Wheelbase, Dual Rear Wheel, With Assist Packages;RWD, 164", 176" Wheelbase, Single Rear Wheel, With Assist Packages
    MSRP: $1007.27 Your Price: $615.03
    1
    Add To Cart
  • 1 Ford LC3Z-3504-D Gear Assembly - Steering
    LC3Z-3504-D
    Gear Assembly - Steering
    Gear Assembly
    • Part Notes: AWD, 142", 148" Wheelbase, With Assist Packages;RWD, 142", 148" Wheelbase, With Assist Packages
    MSRP: $976.36 Your Price: $596.42
    1
    Add To Cart
  • 2 Ford -W717610-S439 Bolt
    -W717610-S439
    Bolt
    Gear Assembly Mount Bolt
    • Part Notes: AWD;RWD
    MSRP: $12.00 Your Price: $7.05
    4
    Add To Cart
  • 3 Ford PC3Z-3590-A Arm - Steering Gear
    PC3Z-3590-A
    Arm - Steering Gear
    Pitman Arm
    • Part Notes: RWD
    MSRP: $81.00 Your Price: $52.73
    1
    Add To Cart
  • 3 Ford PC3Z-3590-B Arm - Steering Gear
    PC3Z-3590-B
    Arm - Steering Gear
    Pitman Arm
    • Part Notes: AWD, With Trailer Pro, 142, 148" Wheelbase;AWD, Without Trailer Pro, Without Lane Departure
    MSRP: $55.00 Your Price: $37.79
    1
    Add To Cart
  • 3 Ford PC3Z-3590-E Arm - Steering Gear
    PC3Z-3590-E
    Arm - Steering Gear
    Pitman Arm
    • Part Notes: AWD, With Trailer Pro, 160, 164" Wheelbase;AWD, With Trailer Pro, 176" Wheelbase;AWD, Without Trailer Pro, With Lane Departure
    MSRP: $170.00 Your Price: $116.79
    1
    Add To Cart
  • 4 Ford PC3Z-3590-B Arm - Steering Gear
    PC3Z-3590-B
    Arm - Steering Gear
    Pitman Arm
    • Part Notes: F350 Super Duty; Pickup; With Trailer Pro; 142" Wheelbase;F350 Super Duty; Pickup; With Trailer Pro; 148" Wheelbase;F350 Super Duty; Pickup; Without Trailer Pro; Without Lane Departure
    MSRP: $55.00 Your Price: $37.79
    1
    Add To Cart
  • 4 Ford PC3Z-3590-C Arm - Steering Gear
    PC3Z-3590-C
    Arm - Steering Gear
    Pitman Arm
    • Part Notes: F350 Super Duty; Chassis Cab; Without Extended Axle
    MSRP: $238.33 Your Price: $154.44
    1
    Add To Cart
  • 4
    PC3Z-3590-D
    Arm - Steering Gear
    Pitman Arm
    • Part Notes: F350 Super Duty; Chassis Cab; With Extended Axle
    MSRP: $183.33 Your Price: $125.95
    1
    Add To Cart
  • 4 Ford PC3Z-3590-E Arm - Steering Gear
    PC3Z-3590-E
    Arm - Steering Gear
    Pitman Arm
    • Part Notes: F350 Super Duty; Pickup; With Trailer Pro; 160" Wheelbase;F350 Super Duty; Pickup; With Trailer Pro; 164" Wheelbase;F350 Super Duty; Pickup; With Trailer Pro; 176" Wheelbase;F350 Super Duty; Pickup; Without Trailer Pro; With Lane Departure
    MSRP: $170.00 Your Price: $116.79
    1
    Add To Cart
  • 4

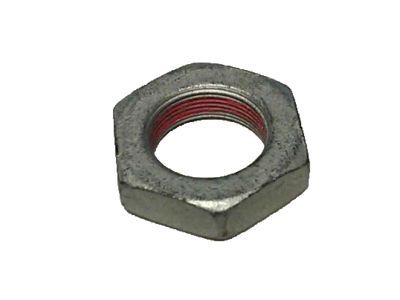

    Ford -W709296-S441 Nut
    Ford -W709296-S441 Nut
    -W709296-S441
    Nut
    Pitman Arm Nut
    • Part Notes: AWD;RWD
    MSRP: $12.00 Your Price: $7.05
    4
    Add To Cart
  • 6 Ford -W716343-S440 Nut
    -W716343-S440
    Nut
    Outer Tie Rod Nut
    • Part Notes: AWD;RWD
    • Location: Driver Side;Passenger Side
    MSRP: $5.00 Your Price: $2.94
    4
    Add To Cart
  • 6 Ford HC3Z-3504-G Gear Assembly - Steering
    HC3Z-3504-G
    Gear Assembly - Steering
    Steering Gear
    • Part Notes: F350 Super Duty; 164" Wheelbase; Dual Rear Wheels; Without Assist Package;F350 Super Duty; 176" Wheelbase; Dual Rear Wheels; Without Assist Package;F350 Super Duty; Chassis Cab; 179" Wheelbase; Dual Rear Wheels
    MSRP: $987.27 Your Price: $599.31
    1
    Add To Cart
  • 6 Ford HC3Z-3504-K Gear Assembly - Steering
    HC3Z-3504-K
    Gear Assembly - Steering
    Steering Gear
    • Part Notes: F350 Super Duty; Chassis Cab; 145" Wheelbase;F350 Super Duty; Pickup; 142" Wheelbase; Without Assist Package;F350 Super Duty; Pickup; 148" Wheelbase; Without Assist Package
    • Replaced By: HC3Z-3504-N
    MSRP: $790.91 Your Price: $467.13
    1
    Add To Cart
  • 6 Ford HC3Z-3504-L Gear Assembly - Steering
    HC3Z-3504-L
    Gear Assembly - Steering
    Steering Gear
    • Part Notes: F350 Super Duty; 164" Wheelbase; Single Rear Wheels; Without Assist Package;F350 Super Duty; 176" Wheelbase; Single Rear Wheels; Without Assist Package;F350 Super Duty; Chassis Cab; 168" Wheelbase;F350 Super Duty; Chassis Cab; 179" Wheelbase; Single Rear Wheels;F350 Super Duty; Pickup; 160" Wheelbase; Without Assist Package; Without Lane Departure
    • Replaced By: HC3Z-3504-M
    MSRP: $894.55 Your Price: $525.00
    1
    Add To Cart
  • 6 Ford LC3Z-3504-A Gear Assembly - Steering
    LC3Z-3504-A
    Gear Assembly - Steering
    Steering Gear
    • Part Notes: F350 Super Duty; 164" Wheelbase; Single Rear Wheels; With Assist Package;F350 Super Duty; 176" Wheelbase; Single Rear Wheels; With Assist Package;F350 Super Duty; Pickup; 160" Wheelbase; With Assist Package;F350 Super Duty; Pickup; 160" Wheelbase; Without Assist Package; With Lane Departure
    MSRP: $1007.27 Your Price: $615.03
    1
    Add To Cart
  • 6 Ford LC3Z-3504-D Gear Assembly - Steering
    LC3Z-3504-D
    Gear Assembly - Steering
    Steering Gear
    • Part Notes: F350 Super Duty; Pickup; 142" Wheelbase; With Assist Package;F350 Super Duty; Pickup; 148" Wheelbase; With Assist Package
    MSRP: $976.36 Your Price: $596.42
    1
    Add To Cart
  • 7 Ford HC3Z-3504-G Gear Assembly - Steering
    HC3Z-3504-G
    Gear Assembly - Steering
    Steering Gear
    • Part Notes: F350 Super Duty; Chassis Cab; 179" Wheelbase; Dual Rear Wheels;F350 Super Duty; Pickup; 164" Wheelbase; Dual Rear Wheels; Without Assist Package;F350 Super Duty; Pickup; 176" Wheelbase; Dual Rear Wheels; Without Assist Package
    MSRP: $987.27 Your Price: $599.31
    1
    Add To Cart
  • 7 Ford HC3Z-3504-K Gear Assembly - Steering
    HC3Z-3504-K
    Gear Assembly - Steering
    Steering Gear
    • Part Notes: F350 Super Duty; Chassis Cab; 145" Wheelbase;F350 Super Duty; Pickup; 142" Wheelbase; Without Assist Package;F350 Super Duty; Pickup; 148" Wheelbase; Without Assist Package
    • Replaced By: HC3Z-3504-N
    MSRP: $790.91 Your Price: $467.13
    1
    Add To Cart
  • 7 Ford HC3Z-3504-L Gear Assembly - Steering
    HC3Z-3504-L
    Gear Assembly - Steering
    Steering Gear
    • Part Notes: F350 Super Duty; Chassis Cab; 168" Wheelbase;F350 Super Duty; Chassis Cab; 179" Wheelbase; Single Rear Wheels;F350 Super Duty; Pickup; 160" Wheelbase; Without Assist Package; Without Lane Departure;F350 Super Duty; Pickup; 164" Wheelbase; Single Rear Wheels; Without Assist Package;F350 Super Duty; Pickup; 176" Wheelbase; Single Rear Wheels; Without Assist Package
    • Replaced By: HC3Z-3504-M
    MSRP: $894.55 Your Price: $525.00
    1
    Add To Cart
  • 7 Ford LC3Z-3504-A Gear Assembly - Steering
    LC3Z-3504-A
    Gear Assembly - Steering
    Steering Gear
    • Part Notes: F350 Super Duty; Pickup; 160" Wheelbase; With Assist Package;F350 Super Duty; Pickup; 160" Wheelbase; Without Assist Package; With Lane Departure;F350 Super Duty; Pickup; 164" Wheelbase; Single Rear Wheels; With Assist Package;F350 Super Duty; Pickup; 176" Wheelbase; Single Rear Wheels; With Assist Package
    MSRP: $1007.27 Your Price: $615.03
    1
    Add To Cart
  • 7 Ford LC3Z-3504-D Gear Assembly - Steering
    LC3Z-3504-D
    Gear Assembly - Steering
    Steering Gear
    • Part Notes: F350 Super Duty; Pickup; 142" Wheelbase; With Assist Package;F350 Super Duty; Pickup; 148" Wheelbase; With Assist Package
    MSRP: $976.36 Your Price: $596.42
    1
    Add To Cart
  • 8 Ford -W716343-S440 Nut
    -W716343-S440
    Nut
    Inner Tie Rod Nut
    • Part Notes: RWD
    • Location: Driver Side;Passenger Side
    MSRP: $5.00 Your Price: $2.94
    4
    Add To Cart
  • 9 Ford PC3Z-3280-A Rod
    PC3Z-3280-A
    Rod
    Center Link Sleeve
    • Part Notes: AWD;RWD
    • Location: Passenger Side
    MSRP: $101.82 Your Price: $61.88
    1
    Add To Cart
  • 13 Ford -W720504-S439 Bolt
    -W720504-S439
    Bolt
    Damper Mount Bolt
    • Part Notes: AWD
    MSRP: $5.00 Your Price: $2.94
    4
    Add To Cart
  • 13 Ford -W714550-S439 Bolt
    -W714550-S439
    Bolt
    Idler Arm Bolt
    • Part Notes: RWD
    MSRP: $5.00 Your Price: $2.94
    4
    Add To Cart
  • 14 Ford HC3Z-3E652-C Bracket
    HC3Z-3E652-C
    Bracket
    Damper Bracket
    • Part Notes: AWD
    MSRP: $95.40 Your Price: $57.98
    1
    Add To Cart
  • 18 Ford HC3Z-3E652-A Bracket
    HC3Z-3E652-A
    Bracket
    Damper Bracket
    • Part Notes: RWD
    MSRP: $142.55 Your Price: $84.91
    1
    Add To Cart
  • 20 Ford -W720504-S439 Bolt
    -W720504-S439
    Bolt
    Damper Mount Bolt
    • Part Notes: RWD
    MSRP: $5.00 Your Price: $2.94
    4
    Add To Cart

OEM 2025 Ford F-350 Super Duty Parts for Steering Gear & Linkage

Genuine OEM 2025 Ford F-350 Super Duty parts are made using the original design, the high standards, in the Ford official factories, and all of these ensure that they always fit perfectly and easily. FordPartsDeal.com is a trusted source for finding these authentic OEM Steering Gear & Linkage parts at very competitive prices. Our professional team is here to help you choose the right 2025 Ford F-350 Super Duty Rack And Pinion, Tie Rod, Steering Gear Box, Tie Rod End, and our fast delivery options ensure that your parts are always delivered quickly.
