How to Service and Repair the 4R70W Motor and Transmission Mount on 2002 Lincoln Navigator?

A service or repair process of the 4R70W transmission mount begins with disconnecting the battery ground cable then hoisting the vehicle. The driveshaft balance needs to be recorded initially by marking both the yoke on the joint and the axle flange before the removal of the rear driveshaft and its bolts. Position a high-lift jack under the transmission before unfastening the transmission crossmember and the heat shield bolt followed by three bolts and nuts which will allow you to extract the transmission crossmember and the rear support insulator. The first step for installation involves installing the rear support insulator followed by reattaching the transmission crossmember which needs proper bolt and nut installation. Follow by reinstalling the heat shield bolt you should eliminate the high-lift jack before installing all the nuts. To conclude the procedure reinstall the driveshaft then lower the vehicle and connect the battery ground cable.

OEM 2002 Lincoln Navigator Motor And Transmission Mount

Motor and Trans Mount

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Motor And Transmission Mounts found

View related parts
2002 Lincoln Navigator Motor Mount, Passenger Side Part Number: XL7Z-6038-AA
Product Specifications
- Other Name: Insulator Assembly; Engine Mount, Right; Engine Mount Bracket; Front Mount
- Position: Passenger Side
- Base No.: 6038
- Item Weight: 4.40 Pounds
- Item Dimensions: 6.1 x 4.6 x 10.1 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: XL7Z-6038-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2002 Lincoln Navigator Submodels:
- Base | 8 Cyl 5.4 L GAS
View related parts
2002 Lincoln Navigator Motor Mount, Driver Side Part Number: XL7Z-6038-CA
Product Specifications
- Other Name: Insulator Assembly - Engine Support; Engine Mount, Left, Right; Engine Mount Bracket; Front Mount
- Position: Driver Side
- Replaces: F85Z-6038-BA
- Base No.: 6038
- Item Weight: 4.10 Pounds
- Item Dimensions: 9.2 x 6.1 x 4.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: XL7Z-6038-CA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2002 Lincoln Navigator Submodels:
- Base | 8 Cyl 5.4 L GAS
View related parts
2002 Lincoln Navigator Motor Mount, Driver Side Part Number: XL7Z-6038-BA
Product Specifications
- Other Name: Insulator Assembly - Engine; Engine Mount, Left; Engine Mount Bracket; Front Mount; Insulator Assembly - Engine Support
- Position: Driver Side
- Replaces: F85Z-6038-EA
- Base No.: 6038
- Item Weight: 3.90 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- SKU: XL7Z-6038-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2002 Lincoln Navigator Submodels:
- Base | 8 Cyl 5.4 L GAS
View related parts
2002 Lincoln Navigator Trans Crossmember Part Number: XL3Z-6A023-BA
Product Specifications
- Other Name: Support; Transmission Crossmember
- Base No.: 6A023
- Item Weight: 18.20 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- SKU: XL3Z-6A023-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2002 Lincoln Navigator Submodels:
- Base | 8 Cyl 5.4 L GAS
View related parts
2002 Lincoln Navigator Transmission Mount Part Number: F85Z-6068-DA
Product Specifications
- Other Name: Insulator Assembly - Engine Support; Automatic Transmission Mount; Engine Mount Bracket; Transfer Case Mount.; Rear Mount
- Manufacturer Note: 4x2
- Base No.: 6068
- Item Weight: 3.60 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- SKU: F85Z-6068-DA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2002 Lincoln Navigator Submodels:
- Base | 8 Cyl 5.4 L GAS
View related parts
2002 Lincoln Navigator Motor Mount Bracket, Driver Side Part Number: F85Z-6029-CA
Product Specifications
- Other Name: Bracket - Engine Support; Engine Mount Bracket, Left; Motor Mount; Engine Mount Bracket
- Manufacturer Note: LH, (7700)
- Position: Driver Side
- Base No.: 6029
- Item Weight: 1.80 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- SKU: F85Z-6029-CA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2002 Lincoln Navigator Submodels:
- Base | 8 Cyl 5.4 L GAS
View related parts
2002 Lincoln Navigator Motor Mount Bracket, Passenger Side Part Number: F85Z-6028-AA
Product Specifications
- Other Name: Bracket; Automatic Transmission Mount Bracket, Right; Engine Mount Bracket, Right; Motor Mount; Engine Mount Bracket
- Manufacturer Note: RH, (7700)
- Position: Passenger Side
- Base No.: 6028
- Item Weight: 2.60 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- SKU: F85Z-6028-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2002 Lincoln Navigator Submodels:
- Base | 8 Cyl 5.4 L GAS
View related parts
2002 Lincoln Navigator Transmission Mount Part Number: F75Z-6068-LA
Product Specifications
- Other Name: Insulator Assembly - Engine; Manual Transmission Mount; Engine Mount Bracket; Transfer Case Mount; Motor Mount; Rear Mount; Insulator Assembly - Engine Support
- Manufacturer Note: 4x2
- Base No.: 6068
- Item Weight: 0.50 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- SKU: F75Z-6068-LA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2002 Lincoln Navigator Submodels:
- Base | 8 Cyl 5.4 L GAS
View related parts

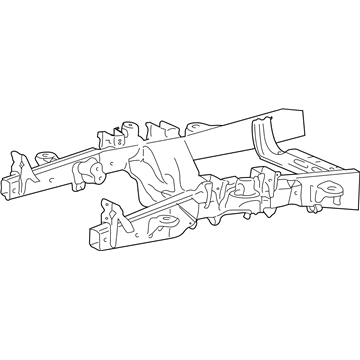

2002 Lincoln Navigator Trans Crossmember Part Number: XL3Z-6A023-CA
Product Specifications
- Other Name: Support; Transmission Crossmember
- Base No.: 6A023
- Item Weight: 27.50 Pounds
- Item Dimensions: 54.1 x 12.2 x 12.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: XL3Z-6A023-CA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2002 Lincoln Navigator Submodels:
- Base | 8 Cyl 5.4 L GAS

2002 Lincoln Navigator Motor And Transmission Mount

If you're seeking quality and affordability, look no further than our extensive inventory of genuine 2002 Lincoln Navigator Motor And Transmission Mount available at FordPartsDeal.com. You can confidently purchase our OEM 2002 Lincoln Navigator Motor And Transmission Mount as they are supported by the manufacturer's warranty and our hassle-free return policy, alongside the benefit of our fast delivery service.

2002 Lincoln Navigator Motor And Transmission Mount Parts Q&A

Q: How to Service and Repair the 4R70W Motor and Transmission Mount on 2002 Lincoln Navigator?
A: A service or repair process of the 4R70W transmission mount begins with disconnecting the battery ground cable then hoisting the vehicle. The driveshaft balance needs to be recorded initially by marking both the yoke on the joint and the axle flange before the removal of the rear driveshaft and its bolts. Position a high-lift jack under the transmission before unfastening the transmission crossmember and the heat shield bolt followed by three bolts and nuts which will allow you to extract the transmission crossmember and the rear support insulator. The first step for installation involves installing the rear support insulator followed by reattaching the transmission crossmember which needs proper bolt and nut installation. Follow by reinstalling the heat shield bolt you should eliminate the high-lift jack before installing all the nuts. To conclude the procedure reinstall the driveshaft then lower the vehicle and connect the battery ground cable.
