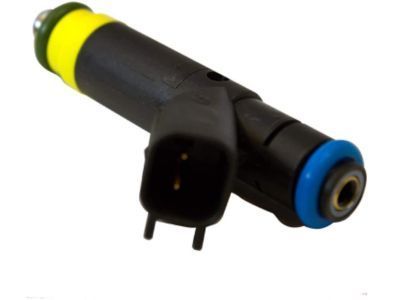

OEM 2006 Ford F-250 Super Duty Fuel Injector

2006 Ford F-250 Super Duty Fuel Injector Parts Questions & Experts Answers

• Q: What safety precautions should be observed when servicing fuel injectors on 2006 Ford F-250 Super Duty?

  A: It is vital to follow safety precautions during fuel injector servicing due to the presence of dangerous flammable mixtures since smoking and open flames must be avoided near fuel-related components. It is essential to reduce fuel system pressure before disconnecting any fuel tubes because the system maintains high pressure after engine shutdown while opening fuel components creates a fire risk due to potential fuel spraying. No visible residue or debris should exist when operating on fuel injection equipment because it functions at precise tolerances. When working with open tubes or orifices users must install blanking plugs while cleaning residual substances from the connector holding unit with compressed air before removing liquid and vapor tube connectors. The first step requires the removal of system fuel pressure while disconnecting the ground battery cable. The clean-up starts with removing the air cleaner outlet pipe but continues to disconnect the spring lock coupling of the fuel supply tube coupled with two electrical connectors from the throttle body together with a quick connect coupling for the positive crankcase ventilation tube attached to the throttle body spacer and freeing two vacuum hoses from the throttle body spacer. The procedure starts with disconnecting the fuel rail pressure and temperature sensor electrical and vacuum connectors and proceeding with the removal of the ten fuel injector electrical connectors. Through this position the harness will allow removal of the fuel rail by being detached from right-hand valve cover main engine wiring harness retention and the two retainer from intake manifold. To obtain better access for removal, keep the fuel injectors inside the intake manifold while taking out the fuel rail. Use new O-ring seals made of resistant fuel material for the mounting process since basic O-ring material may damage the fittings while you must not reuse these O-ring components. Apply clean engine oil when installing your new O-ring parts. The installation process requires first reversing the removal steps while tightening fuel rail bolts to 10 Nm (89 lb-in).
