How to Service and Repair the A/C Hose in the Compressor Manifold and Tube Assembly on 2006 Lincoln Navigator?

The service process for the compressor manifold and tube assembly in the HVAC system begins with refrigerant recovery then the battery cable disconnection as well as disconnecting both electrical connectors and pressure cutoff switch electrical connector. First remove the compressor manifold and tube suction fitting nut before disconnecting the fitting and discarding its O-ring seal and installing the new fitting with a torque of 8 Nm (71 lb-in). The replacement of auxiliary A/C features requires removing the fitting nut from the auxiliary evaporator outlet line followed by fitting disconnect along with O-ring discard and installation tightening to 8 Nm (71 lb-in). Next you should disconnect the compressor manifold and tube assembly discharge fitting nut while discarding the O-ring seal, tight with new fitting to 8 Nm (71 lb-in). Remove the compressor manifold by opening its bolt while discarding O-ring seals and reinstall it with 20 Nm (15 lb-ft) torque. Reinstall using newly installed O-ring seals while performing a proper PAG oil lubrication of the refrigerant system with precise oil volume. The last step involves evacuating followed by both leak tests and refrigerant system charging.

OEM 2006 Lincoln Navigator A/C Hose

Air Conditioning Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 A/C Hoses found

View related parts
2006 Lincoln Navigator A/C Hose, Front Lower
Part Number: 2L1Z-19835-CA
$49.24 MSRP: $78.18
You Save: $28.94 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube Assembly; A/C Hose Assembly, Front Lower; A/C Refrigerant Liquid Hose; Hose
- Manufacturer Note: Expansion valve to evaporator-inlet
- Position: Front Lower
- Base No.: 19835
- Item Weight: 0.70 Pounds
- Item Dimensions: 1.5 x 3.6 x 12.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 2L1Z-19835-CA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2006 Lincoln Navigator Submodels:
- Base, Luxury, Ultimate | 8 Cyl 5.4 L GAS
View related parts
2006 Lincoln Navigator A/C Hose, Front Upper
Part Number: 2L1Z-19835-AA
$26.34 MSRP: $41.82
You Save: $15.48 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube Assembly; A/C Hose Assembly, Front Upper; A/C Refrigerant Liquid Hose; Hose
- Manufacturer Note: Expansion valve to evaporator-outlet
- Position: Front Upper
- Base No.: 19835
- Item Weight: 0.60 Pounds
- Item Dimensions: 1.3 x 2.9 x 11.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 2L1Z-19835-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2006 Lincoln Navigator Submodels:
- Base, Luxury, Ultimate | 8 Cyl 5.4 L GAS
View related parts

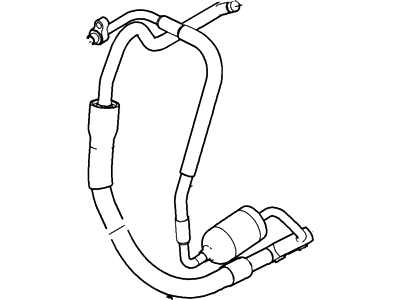

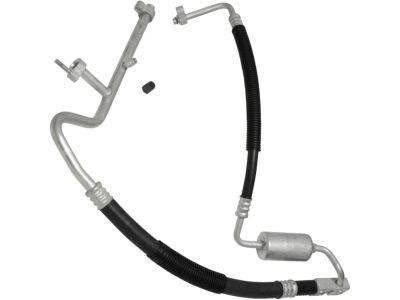

2006 Lincoln Navigator Liquid Line
Part Number: 2L1Z-19835-EA
$77.35 MSRP: $127.27
You Save: $49.92 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube Assembly; A/C Accumulator Tube Outlet; A/C Refrigerant Liquid Hose; A/C Orifice Tube; A/C Hose; A/C Tube; Tube
- Base No.: 19835
- Item Weight: 1.90 Pounds
- Item Dimensions: 7.8 x 7.4 x 24.8 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 2L1Z-19835-EA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2006 Lincoln Navigator Submodels:
- Base, Luxury, Ultimate | 8 Cyl 5.4 L GAS
View related parts
2006 Lincoln Navigator Discharge Line
Part Number: 6L1Z-19D850-BA
Product Specifications
- Other Name: Tube - Compressor To Manifold; A/C Refrigerant Suction Hose; A/C Refrigerant Liquid Hose; A/C Hose
- Manufacturer Note: Manifold And Tube Assy
- Base No.: 19D850
- Item Weight: 3.30 Pounds
- Item Dimensions: 22.7 x 4.4 x 19.6 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 6L1Z-19D850-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2006 Lincoln Navigator Submodels:
- Base, Luxury, Ultimate | 8 Cyl 5.4 L GAS
View related parts
2006 Lincoln Navigator Discharge Line
Part Number: 5L1Z-19D850-AA
Product Specifications
- Other Name: Tube - Compressor To Manifold; A/C Refrigerant Suction Hose; A/C Refrigerant Liquid Hose; A/C Hose
- Manufacturer Note: Manifold And Tube Assy
- Base No.: 19D850
- Item Weight: 3.40 Pounds
- Item Dimensions: 23.0 x 3.2 x 28.8 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5L1Z-19D850-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2006 Lincoln Navigator Submodels:
- Base, Luxury, Ultimate | 8 Cyl 5.4 L GAS
View related parts
2006 Lincoln Navigator A/C Line
Part Number: 5L1Z-19835-AA
Product Specifications
- Other Name: Tube Assembly; A/C Refrigerant Liquid Hose; A/C Hose
- Manufacturer Note: Evaporator Inlet
- Base No.: 19835
- Item Weight: 0.50 Pounds
- Item Dimensions: 2.1 x 6.6 x 18.7 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 5L1Z-19835-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
More Info
Fits the following 2006 Lincoln Navigator Submodels:
- Base, Luxury, Ultimate | 8 Cyl 5.4 L GAS

2006 Lincoln Navigator A/C Hose

If you're seeking quality and affordability, look no further than our extensive inventory of genuine 2006 Lincoln Navigator A/C Hose available at FordPartsDeal.com. You can confidently purchase our OEM 2006 Lincoln Navigator A/C Hose as they are supported by the manufacturer's warranty and our hassle-free return policy, alongside the benefit of our fast delivery service.

2006 Lincoln Navigator A/C Hose Parts Questions & Experts Answers

Q: How to Service and Repair the A/C Hose in the Compressor Manifold and Tube Assembly on 2006 Lincoln Navigator?
A: The service process for the compressor manifold and tube assembly in the HVAC system begins with refrigerant recovery then the battery cable disconnection as well as disconnecting both electrical connectors and pressure cutoff switch electrical connector. First remove the compressor manifold and tube suction fitting nut before disconnecting the fitting and discarding its O-ring seal and installing the new fitting with a torque of 8 Nm (71 lb-in). The replacement of auxiliary A/C features requires removing the fitting nut from the auxiliary evaporator outlet line followed by fitting disconnect along with O-ring discard and installation tightening to 8 Nm (71 lb-in). Next you should disconnect the compressor manifold and tube assembly discharge fitting nut while discarding the O-ring seal, tight with new fitting to 8 Nm (71 lb-in). Remove the compressor manifold by opening its bolt while discarding O-ring seals and reinstall it with 20 Nm (15 lb-ft) torque. Reinstall using newly installed O-ring seals while performing a proper PAG oil lubrication of the refrigerant system with precise oil volume. The last step involves evacuating followed by both leak tests and refrigerant system charging.
