How to service and repair the Neutral Safety Switch on the 4R70E/4R75E on Ford F-150?

The service and repair of 4R70E/4R75E transmission position switch/sensor starts by placing the vehicle at neutral position on a hoist. The end of the selector lever cable needs disconnection without applying any force between the manual control lever and selector lever cable bracket to avoid causing damage. Begin the service procedures by first disconnecting the transmission range (TR) electrical connector. The manual control lever outer nut requires immediate disposal because it cannot meet torque specifications and the user should remove the manual control lever afterward. First remove the bolts from the TR sensor followed by removal of the sensor device itself. Install the TR sensor while maintaining loose fastening of its bolts while keeping the manual control lever in neutral position. The installation process should involve the usage of a TR sensor alignment gauge to achieve a secure fit of TR sensor slots. Tighten each TR sensor bolt in an alternate pattern reaching 9 Nm (80 lb-in) to prevent component malfunction. You should reinstall the manual control lever after placing its new outer nut and tightening it to reach 33 Nm (24 lb-ft). Connect the TR sensor connector followed by attaching the selector lever cable end into position on the manual control lever ball stud by applying backward force to the selector lever cable end. Install the selector lever cable end by placing it onto the manual control lever when the lever points to (D).

OEM Ford F-150 Neutral Safety Switch

Transmission Neutral Safety Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Neutral Safety Switches found

View related parts
Ford F-150 Neutral Safety Switch Part Number: F7LZ-7F293-AB
$56.57 MSRP: $91.27
You Save: $34.70 (39%)
ADD TO CART
Product Specifications
- Other Name: Sensor - Manual Lever Position; Transmission Range Sensor; Transmiss Range Sensor; Range Sensor; Back-Up & Neutral Safety Switch; Sensor - Manual Lever Position - Mlps
- Replaces: F7LZ-7F293-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997-2010 Ford F-150 | Base, FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Lightning, Limited, Platinum, STX, SVT Raptor, THE 60TH ANNIVERSARY EDITION, XL, XLT | 6 Cyl 4.2 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.4 L BI-FUEL, 8 Cyl 5.4 L CNG, 8 Cyl 5.4 L FLEX, 8 Cyl 5.4 L GAS, 8 Cyl 6.2 L GAS
View related parts

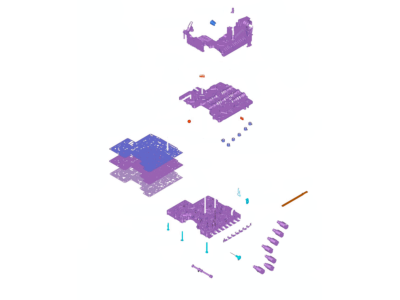

Ford F-150 Range Sensor Part Number: MB3Z-7A100-B
$865.01 MSRP: $1281.50
You Save: $416.49 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Assembly - Transmission
- Replaces: FL3Z-7A100-H, FL3Z-7A100-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2020 Ford F-150 | King Ranch, Lariat, Limited, Platinum, Police Responder, SSV, XL, XLT | 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS, 8 Cyl 5.0 L FLEX
View related parts
Ford F-150 Neutral Safety Switch Part Number: D6RY-7A247-B
Product Specifications
- Other Name: Switch Assembly - Starter; Back Up Light Switch; Range Sensor; Back-Up Switch; Switch Assembly - Starter Inhibitor
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1984-1996 Ford F-150 | Base, Custom, Eddie Bauer, Lightning, Special, XL, XLT, XLT Lariat | 6 Cyl 4.9 L BI-FUEL, 6 Cyl 4.9 L GAS, 6 Cyl 4.9 L LPG, 8 Cyl 5.0 L GAS, 8 Cyl 5.8 L GAS, 8 Cyl 6.9 L DIESEL
View related parts
Ford F-150 Range Sensor Part Number: JL1Z-7H557-B
$140.84 MSRP: $223.64
You Save: $82.80 (38%)
Product Specifications
- Other Name: Sensor Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2021-2023 Ford F-150 | King Ranch, Lariat, Limited, Platinum, Police Responder, Raptor, Raptor R, SSV, Tremor, XL, XLT | 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.3 L FLEX, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS, 8 Cyl 5.0 L FLEX, 8 Cyl 5.2 L GAS

Ford F-150 Neutral Safety Switch

OEM Neutral Safety Switch boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Neutral Safety Switch with long life and a perfect fit. Come to our website and find genuine Ford F-150 parts. We keep a wide inventory of OEM F-150 parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

The Neutral Safety Switch in Ford F-150 cars is actually an important necessity which has been invented to ensure that the engine of the car will not start if the car transmission is not in the neutral or park position. It keeps the car from rolling in the opposite direction during start up thereby increasing the safety of the driver and the passengers. There are several generations of Ford F-150 cars, so throughout the years different types of Neutral Safety Switches have been used with the goal that is surely the same but they could be different in their construction and the way they are placed. These may be due to improvements in technology or evolution of the designs of the vehicles, but all serve to prevent vehicles from moving off by chance during start up. The Ford F-150 model features a Neutral Safety Switch that is essential to safe operation across different model years.

Ford F-150 Neutral Safety Switch Parts and Q&A

Neutral Safety Switch
F7LZ-7F293-AB
Q: How to service and repair the Neutral Safety Switch on the 4R70E/4R75E on Ford F-150?
A:
The service and repair of 4R70E/4R75E transmission position switch/sensor starts by placing the vehicle at neutral position on a hoist. The end of the selector lever cable needs disconnection without applying any force between the manual control lever and selector lever cable bracket to avoid causing damage. Begin the service procedures by first disconnecting the transmission range (TR) electrical connector. The manual control lever outer nut requires immediate disposal because it cannot meet torque specifications and the user should remove the manual control lever afterward. First remove the bolts from the TR sensor followed by removal of the sensor device itself. Install the TR sensor while maintaining loose fastening of its bolts while keeping the manual control lever in neutral position. The installation process should involve the usage of a TR sensor alignment gauge to achieve a secure fit of TR sensor slots. Tighten each TR sensor bolt in an alternate pattern reaching 9 Nm (80 lb-in) to prevent component malfunction. You should reinstall the manual control lever after placing its new outer nut and tightening it to reach 33 Nm (24 lb-ft). Connect the TR sensor connector followed by attaching the selector lever cable end into position on the manual control lever ball stud by applying backward force to the selector lever cable end. Install the selector lever cable end by placing it onto the manual control lever when the lever points to (D).
