How to service the rear ABS sensor and sensor ring on Ford Thunderbird?

The service procedure for the rear ABS sensor along with sensor ring requires clearance of all dirt and foreign objects surrounding the rear anti-lock brake sensor before sensor removal. Place the vehicle into neutral mode before setting it on a hoist. Service the components according to their specified sequence of removal. The installation steps should follow the reverse order of removal operations. The removal process of the ABS sensor harness begins by detaching it from the upper control arm clip. The ABS sensor ring is not repairable therefore it needs a complete replacement when the vehicle undergoes rear halfshaft assembly service.

How to service the front ABS sensor on Ford Thunderbird?

Service procedures for the front ABS sensor begin with placing the vehicle in the neutral gear on a hoist. Start by removing the ABS sensor bolt while checking that the new bolt finds full seating prior to tightening it to 3 Nm (27 inch lbs.). The O-ring must be set in place before performing ABS sensor removal. As a next step, remove the three ABS sensor harness retainers and the pin-type retainers for connecting the harnesses. One can access the ABS sensor harness by taking off the pin-type retainers and pushing the inner splash shield to a different position. Attach the ABS sensor electrical connector to its new mounting position after applying 2.5 mm (0.1 inch) sealant around the outside sensor diameter. After reversing the uninstallation steps, you should reposition the ABS sensor alongside its harness.

OEM Ford Thunderbird ABS Sensor

ABS Wheel Speed Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 ABS Sensors found

View related parts

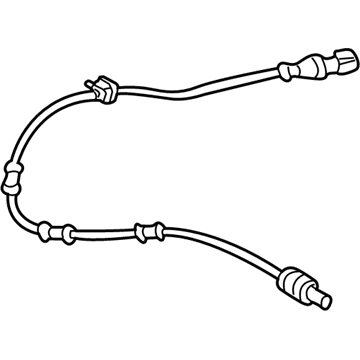

Ford Thunderbird ABS Sensor, Front Driver Side Part Number: 3W4Z-2C204-AA
$37.40 MSRP: $61.09
You Save: $23.69 (39%)
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly; ABS Wheel Speed Sensor, Front Left, Front Right; Front Speed Sensor; ABS Wheel Speed Sensor
- Manufacturer Note: Snap On Type
- Position: Front Driver Side
- Replaces: YW4Z-2C204-BB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002-2005 Ford Thunderbird | 50th Anniversary Edition, Base, James Bond Edition, Neiman Marcus, Pacific Coast Roadster | 8 Cyl 3.9 L GAS
View related parts

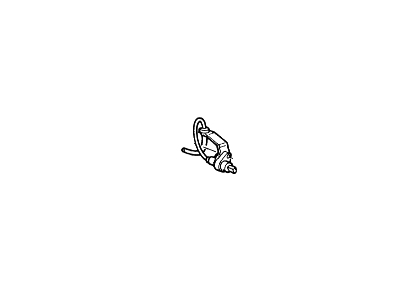

Ford Thunderbird ABS Sensor, Passenger Side Part Number: F6SZ-2C204-AB
Product Specifications
- Other Name: Sensor Assembly; Speed Sensor; Front Speed Sensor
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1993-1997 Ford Thunderbird | LX, Super Coupe | 6 Cyl 3.8 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.0 L GAS
View related parts

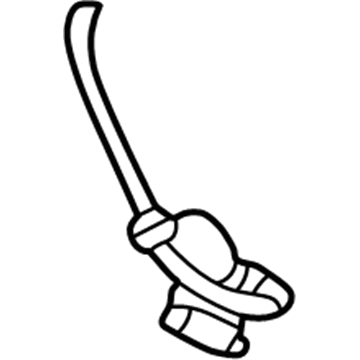

Ford Thunderbird ABS Sensor, Rear Passenger Side Part Number: 3W4Z-2C190-BA
Product Specifications
- Other Name: Sensor Assembly; ABS Wheel Speed Sensor, Rear Right; Rear Speed Sensor
- Position: Rear Passenger Side
- Replaces: XW4Z-2C190-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002-2005 Ford Thunderbird | 50th Anniversary Edition, Base, James Bond Edition, Neiman Marcus, Pacific Coast Roadster | 8 Cyl 3.9 L GAS
View related parts
Ford Thunderbird ABS Sensor, Driver Side Part Number: F3LY-2C204-BA
Product Specifications
- Other Name: Sensor Assembly; Speed Sensor; Front Speed Sensor
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1993-1997 Ford Thunderbird | LX, Super Coupe | 6 Cyl 3.8 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.0 L GAS

Ford Thunderbird ABS Sensor

OEM ABS Sensor boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get ABS Sensor with long life and a perfect fit. Come to our website and find genuine Ford Thunderbird parts. We keep a wide inventory of OEM Thunderbird parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

Specifically, Ford Thunderbird ABS Sensor is a component that belongs to the Anti-lock Braking System in Ford Thunderbird cars which is famous for its quality and efficiency. This sensor is for the most part involved with improving the efficiency of the vehicle and augmenting safety, since wheel lock-up during braking is dangerous during several driving states. Thus, the Ford Thunderbird ABS Sensor keeps checking the rotation of the wheels and transmits accurate voltage signals to the ABS control module; this allows the hydraulic pressure to be selected in the right manner to fit the wheels; this promotes the enhanced braking system. Applicable to various Ford Thunderbird automobiles that were manufactured between the years 1955-1997, then the years 2002-2005, this ABS Sensor will fit due to its generic compatibility with each model, type, and style of the famous T-Bird: from the hardtop coupes to the convertibles. It is evident that the Ford Thunderbird ABS Sensor is in a class of its own in the automotive market today, Hall effect and electromagnetic coil have been implemented in the Sensor to increase the accuracy of the signal and responsivity. Although there might be some discrepancies in the speed, the Ford Thunderbird ABS Sensor guarantees reliable performance regardless of the speed to allow the driver to have reliable braking. All in all, we can conclude that the role ofFord Thunderbird ABS Sensor demonstrates the company's strive for the safety and innovation, which is why it deserves to become the part of the car's history.

Ford Thunderbird ABS Sensor Parts and Q&A

ABS Sensor, Rear Passenger Side
3W4Z-2C190-BA
Q: How to service the rear ABS sensor and sensor ring on Ford Thunderbird?
A:
The service procedure for the rear ABS sensor along with sensor ring requires clearance of all dirt and foreign objects surrounding the rear anti-lock brake sensor before sensor removal. Place the vehicle into neutral mode before setting it on a hoist. Service the components according to their specified sequence of removal. The installation steps should follow the reverse order of removal operations. The removal process of the ABS sensor harness begins by detaching it from the upper control arm clip. The ABS sensor ring is not repairable therefore it needs a complete replacement when the vehicle undergoes rear halfshaft assembly service.
ABS Sensor, Front Driver Side
3W4Z-2C204-AA
Q: How to service the front ABS sensor on Ford Thunderbird?
A:
Service procedures for the front ABS sensor begin with placing the vehicle in the neutral gear on a hoist. Start by removing the ABS sensor bolt while checking that the new bolt finds full seating prior to tightening it to 3 Nm (27 inch lbs.). The O-ring must be set in place before performing ABS sensor removal. As a next step, remove the three ABS sensor harness retainers and the pin-type retainers for connecting the harnesses. One can access the ABS sensor harness by taking off the pin-type retainers and pushing the inner splash shield to a different position. Attach the ABS sensor electrical connector to its new mounting position after applying 2.5 mm (0.1 inch) sealant around the outside sensor diameter. After reversing the uninstallation steps, you should reposition the ABS sensor alongside its harness.
