How to Remove and Replace the Drive Shaft on Lincoln MKZ?

Both driveshaft flanges require indexing before performing the removal and replacement procedure. Place the vehicle in neutral gear while it rests on a hoist where the exhaust flex pipe remains properly supported above the surface. Separate the exhaust system at the flex pipe by removing its 2 nuts then install new nuts using a torque of 40 Nm (30 lb-ft). After supporting the exhaust system properly you should disconnect the two front exhaust hangers before lowering the system to expose enough space for driveshaft extraction. New bolts should replace the 4 front driveshaft-to-Power Transfer Unit (PTU) flange bolts after tightening them to 70 Nm (52 lb-ft). A proper pry bar should be used to detach the driveshaft flange from the PTU flange. The 4 rear driveshaft-to-pinion flange bolts need replacement with new ones before torquing them to 70 Nm (52 lb-ft). A crew must tighten the driveshaft center bearing support nuts and driveshaft assembly before finally tightening the center bearing support nuts to 55 Nm (41 lb-ft). Indexing of driveshaft should be performed when driveshaft vibration occurs after installation. Install the driveshaft in reverse order of the removal steps.

OEM Lincoln MKZ Drive Shaft

Axle Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Drive Shafts found

View related parts
Lincoln MKZ Drive Shaft Part Number: HP5Z-4R602-B
$1164.49 MSRP: $1592.46
You Save: $427.97 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly - Drive; Driveshaft
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2020 Lincoln MKZ | Black Label, Reserve, Reserve II, Select | 6 Cyl 3.0 L GAS
View related parts
Lincoln MKZ Drive Shaft Part Number: HP5Z-4R602-A
$1170.68 MSRP: $1600.92
You Save: $430.24 (27%)
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly - Drive; Driveshaft
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2020 Lincoln MKZ | Black Label, Reserve, Reserve II, Select | 6 Cyl 3.0 L GAS
View related parts
Lincoln MKZ Drive Shaft Part Number: DP5Z-4R602-A
$827.89 MSRP: $1132.15
You Save: $304.26 (27%)
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly - Drive; Driveshaft
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2016 Lincoln MKZ | Base, Black Label | 6 Cyl 3.7 L GAS
View related parts

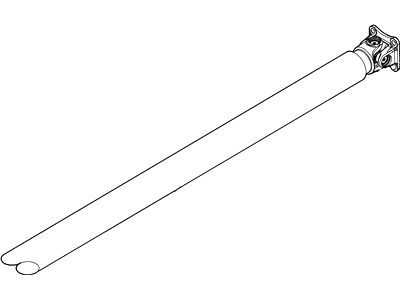

Lincoln MKZ Drive Shaft Part Number: AE5Z-4R602-A
$630.00 MSRP: $861.54
You Save: $231.54 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly - Drive; Driveshaft
- Replaces: 7E5Z-4R602-B, 7E5Z-4R602-A, 8E5Z-4R602-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2012 Lincoln MKZ | Base | 6 Cyl 3.5 L GAS
View related parts
Lincoln MKZ Drive Shaft, Rear Part Number: DG9Z-4R602-A
$763.88 MSRP: $1044.62
You Save: $280.74 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft Assembly - Drive; Drive Shaft, Rear; Driveshaft
- Position: Rear
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Lincoln MKZ | Base, Black Label, Black Label Hybrid, Hybrid, Premiere, Premiere Hybrid, Reserve, Reserve Hybrid, Reserve I, Reserve I Hybrid, Reserve II, Reserve II Hybrid, Select, Select Hybrid | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS

Lincoln MKZ Drive Shaft

OEM Drive Shaft boasts unmatched quality. Each part goes through full quality checks. They adhere to Lincoln's official factory standards. These steps remove flaws and inconsistencies. So you can get Drive Shaft with long life and a perfect fit. Come to our website and find genuine Lincoln MKZ parts. We keep a wide inventory of OEM MKZ parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

It possesses high functionality to support that Lincoln understands its consumer needs and desires for a reliable car; this is illustrated by the Lincoln MKZ Drive Shaft. Mechanically responsible for the smooth transfer of mechanical power and torque from the engine to wheels, the Assembly: LINCOLN MKZ DRIVE SHAFT is a core vehicle component. Compatible with different models of MKZ's, be it front-engine and rear-wheel drive proof the functionality of this gadget by ensuring that it works well under most situations that a car is taken through. Lincoln Drive Shaft also has application of Universal Joints and Slip-In Tube that not only offers crash safety but also can vary the alignment as well as increase efficiency. This attention is aimed at giving the Lincoln Drive Shaft torsional and sheer strength, all the time having to be lightweight to facilitate better fuel consumption and safety. Continuing with critical components of the car, the Drive Shaft of the MKZ is as reliable as it is luxurious with top performance mechanics engineered for the sophisticated drivers. Due to its rigid construction and creativity, the Lincoln MKZ Drive Shaft is deftly placed in the Holy Grail of automotive market additions to the MKZ, a luxury sedan par excellence. That is why the MKZ Drive Shaft has been established as a contribution to the marvelous designs of Lincoln cars; not only does it improve the drive comfort, but it makes any drive safe and pleasant - making it an exclusive must-have for LINCOLN MKZ.

Lincoln MKZ Drive Shaft Parts and Q&A

Drive Shaft
AE5Z-4R602-A
Q: How to Remove and Replace the Drive Shaft on Lincoln MKZ?
A:
Both driveshaft flanges require indexing before performing the removal and replacement procedure. Place the vehicle in neutral gear while it rests on a hoist where the exhaust flex pipe remains properly supported above the surface. Separate the exhaust system at the flex pipe by removing its 2 nuts then install new nuts using a torque of 40 Nm (30 lb-ft). After supporting the exhaust system properly you should disconnect the two front exhaust hangers before lowering the system to expose enough space for driveshaft extraction. New bolts should replace the 4 front driveshaft-to-Power Transfer Unit (PTU) flange bolts after tightening them to 70 Nm (52 lb-ft). A proper pry bar should be used to detach the driveshaft flange from the PTU flange. The 4 rear driveshaft-to-pinion flange bolts need replacement with new ones before torquing them to 70 Nm (52 lb-ft). A crew must tighten the driveshaft center bearing support nuts and driveshaft assembly before finally tightening the center bearing support nuts to 55 Nm (41 lb-ft). Indexing of driveshaft should be performed when driveshaft vibration occurs after installation. Install the driveshaft in reverse order of the removal steps.
