OEM Lincoln Zephyr Battery Cable

Lincoln Zephyr Battery Cable Parts Questions & Experts Answers

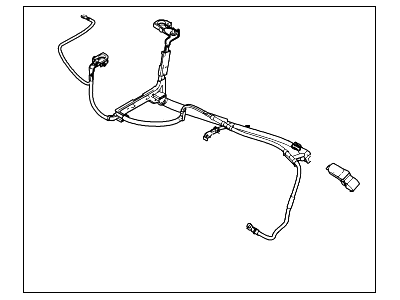

• Cable
  8E5Z-14300-AA
  Q: How to service the battery cables on Lincoln Zephyr?

  A: The battery cable servicing process begins with battery tray removal before removing the bolt along with its nut and battery hold down bracket through tightening at 10 Nm (89 lb-in). Separate the body ground terminal of the battery cable by removing its bolt before installation tightening to 12 Nm (9 lb-ft). Set the BJB cable terminal aside after removing the nut while tightening it to 8 Nm (71 lb-in) at installation time. After removing the starter solenoid terminal cover and its nut you should place the battery cable starter solenoid terminal to the side before tightening it to 12 Nm (9 lb-ft). After releasing the battery cable locator from the engine you must remove the bolt before positioning the battery cable transaxle ground terminal in place. Reinstall the bolt at 10 Nm (89 lb-in). The battery cable location must be removed from the transaxle stud and three locations on the LH valve cover. Prior to reinstalling the generator B+ terminal you must first remove the protective cover and the nut as well as readjust the terminal position then tighten it to 12 Nm (9 lb-ft). The last step involves removing battery cables before performing the reverse procedure for reinstallation.
