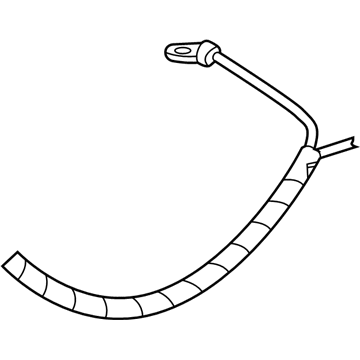

OEM Mercury Monterey Battery Cable

Mercury Monterey Battery Cable Parts Questions & Experts Answers

• Battery Cable
  4F2Z-14300-AA
  Q: How to service the battery cables on Mercury Monterey?

  A: Service of battery cables requires users to first disconnect the battery system. You must tighten the BEC terminal bolt to 10 Nm (89 lb-in) when replacing it. After that remove the 8 pin-type retainers along with the radiator support sight shield. The battery ground cable bolt needs removal while you should tighten it to 25 Nm (18 lb-ft) when installing. Remove the terminals of both battery cable locators from the battery cover and roll restrictor bracket before you uninstall the starter motor solenoid terminal cover. The starter motor solenoid battery cable needs its nut removed and cable placement before final tightening at 12 Nm (9 lb-ft). The battery ground cable nut should be removed while positioning the cable aside with a secure torque of 20 Nm (15 lb-ft) before reinstalling it. First remove the generator B+ cable nut after placing the cable aside and relocating the boot to reach the installation-tightened nut at 8 Nm (71 lb-in). Before removing the battery cable assembly, users must release three generator B+ cable locators. The process concludes when you perform the opposite of the removal steps while installing.
