Ford 4W7Z-9430-AA

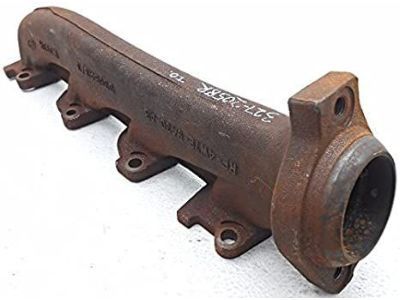

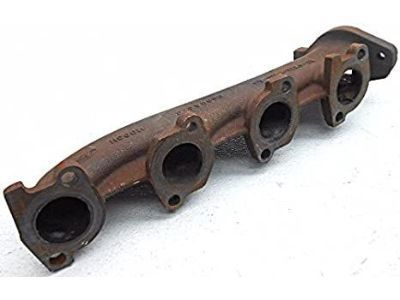

Exhaust Manifold, Passenger Side

Service of the right exhaust manifold requires starting with disconnecting the negative cable from the battery. The drive belt tensioner needs a clockwise rotation for removing the drive belt. Separate the electrical connection to the crankshaft position (CKP) sensor along with the one to the A/C compressor. Remove first the bolt securing the transmission cooler tube bracket then set it aside before logging off the A/C compressor by loosening its mounting bolts. The exhaust pipe needs to be detached from the exhaust manifold before the eight nuts and exhaust manifold along with gasket can be removed. The installation ends when you execute the reverse steps from removal.

Before starting to service the right exhaust manifold you should place the vehicle in neutral position on a hoist. Make the following steps to remove the drive belt: detach the battery's black negative cable followed by a clockwise rotation of the drive belt tensioner. Detach the crankshaft position (CKP) sensor electrical connector along with the electrical connector from the A/C compressor. Start by taking off the bolt from the transmission cooler tube bracket before removing the nut to set the assembly aside with the tube. Begin by removing three bolts that will position the A/C compressor to a side position before removing the catalytic converter-to-exhaust manifold nuts to set aside the catalytic converter flange. The process ends with removing the eight nuts from the exhaust manifold along with a new gasket and discarding all components. To install this component first place an exhaust manifold gasket together with the exhaust manifold then secure the unit with eight nuts using a tightening sequence of 25 Nm (18 ft. lbs.). Position the catalytic converter flange while installing the catalytic converter-to-exhaust manifold nuts which need tightening to 34 Nm (25 ft. lbs.). First install the A/C compressor using bolts that reach 25 Nm torque before placing the transmission cooler tube assembly and nut with proper torque of 9 Nm. Fasten the transmission cooler tube bracket bolt to 15 Nm torque before tightening it to 11 ft. lbs. Reinstall the A/C compressor electrical connector together with the CKP sensor electrical connector. Lock the drive belt tensioner clockwise direction and install the drive belt before reconnecting the negative terminal cable.

The correct approach to service the right exhaust manifold starts with disconnecting the negative battery cable. The drive belt tensioner should be rotated clockwise for removing the drive belt. Before working on the right exhaust manifold disconnect both the A/C compressor electrical connector and the crankshaft position (CKP) sensor electrical connector. Begin by freeing the bolt which maintains the transmission cooler tube bracket before leaving it aside. Then remove all bolts securing the A/C compressor to position it aside with the bracket. Start by detaching the exhaust pipe from the manifold and proceed to remove all eight nuts before taking out the exhaust manifold together with its gasket. The reverse steps from removal should be used to finish the installation.

Starting to service the right exhaust manifold requires first disconnecting the negative terminal of the battery. The drive belt tensioner requires clockwise rotation to eliminate the drive belt. Complete the service of the right exhaust manifold by removing electrical connectors for both the Crankshaft Position (CKP) sensor and the A/C compressor. Climb behind the transmission cooler tube bracket by removing the bolt while setting it aside before taking out the bolts holding the A/C compressor for positioning it aside. The exhaust pipe must be disconnected from the exhaust manifold followed by the removal of its eight securing nuts and the gasket. The process of installation includes performing the opposite actions used for removal.

A proper service of the right-hand exhaust manifold starts when the vehicle rests in neutral position on a hoist. Select a hoist to position the vehicle in neutral gear while you disconnect the negative battery cable to tension the drive belt toward the clockwise direction and remove it. Service begins with removing the electrical connector from the crankshaft position (CKP) sensor as well as the A/C compressor electrical connector. Start by extracting the bolt from the transmission cooler tube bracket while you should extract the nut and properly set aside the transmission cooler tube assembly. Seal off the A/C compressor with three bolts after which moving the catalytic converter-to-exhaust manifold nuts to take away the catalytic converter flange. The exhaust manifold requires removal together with 8 nuts while replacing the gasket and discarding all parts. You must install an exhaust manifold gasket together with the exhaust manifold then secure it with eight new nuts tightened sequentially to 25 Nm (18 ft. lbs.). Push the catalytic converter flange into place before installing new catalytic converter-to-exhaust manifold nuts which should be tightened to 34 Nm (25 ft. lbs.). Position the A/C compressor before installing three bolts which should be tightened to 25 Nm (18 ft. lbs.). Reinstall the transmission cooler tube assembly by tightening the nut to 9 Nm before fastening the transmission cooler tube bracket bolt to 15 Nm. After installing the drive belt the technician needs to reconnect the A/C compressor electrical connector and also reconnect the CKP sensor electrical connector. To put on the drive belt rotate the tensioner clockwise before reattaching the negative terminal cable. The necessary safety procedures should be followed before powering up the fire suppression system installed in the vehicle.

Remove the eight nuts securing the exhaust manifold along with the gasket.

Disconnect the negative battery cable.

Reverse the removal procedure.

The clockspring must be removed and recentered.

Remove and discard the eight exhaust manifold studs.

Remove the eight nuts, the exhaust manifold, and the gasket, discarding both the nuts and gasket, and then remove and discard the eight exhaust manifold studs.

Disconnect the exhaust pipe from the exhaust manifold and detach the Exhaust Gas Recirculation (EGR) system module tube from the manifold.

Allowing the intermediate shaft to rotate, as this could damage the clockspring.

Take out the exhaust manifold along with the gasket.

The clockspring must be removed and recentered.

Tighten it to 41 Nm (30 ft. lbs.).

Reverse the removal procedure.

Disconnect the exhaust pipe from the exhaust manifold.

The clockspring must be removed and recentered.

Remove the eight nuts securing the exhaust manifold along with the manifold and gasket, discarding both the nuts and gasket, and then remove and discard the eight exhaust manifold studs.

Disconnect the exhaust pipe and detach the Exhaust Gas Recirculation (EGR) system module tube.

Reverse the steps taken during removal.

Disconnect the negative battery cable.

Disconnect the exhaust pipe from the exhaust manifold.

Reattach the catalytic converter flange and tighten the catalytic converter-to-exhaust manifold nuts to 34 Nm (25 ft. lbs.).

Reverse the steps taken during removal.

Remove the eight nuts securing the exhaust manifold.

Tighten the eight new exhaust manifold studs to 12 Nm (106 lb-in).
