Ford 6L8Z-3A719-C

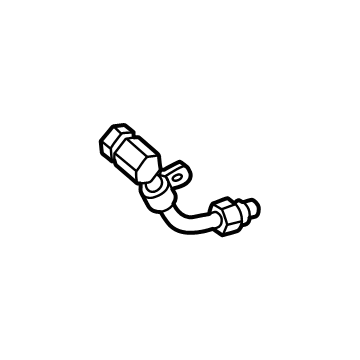

Power Steering Pressure Hose, Front

The procedures for steering gear to fluid cooler return hose servicing start by draining power steering fluid into a suitable pan while keeping the O-ring seals secure. Begin service of the steering gear to fluid cooler return hose by disconnecting power steering lines and removing the bolt holding the power steering return bracket to the gear. You should remove the clamp after which you can extract the power steering return line while preserving the O-ring seals positioned on the power steering pressure and return lines. Reversing the removal steps should be followed by the new component installation process which ends with power steering system bleeding and leak checking to verify normal functionality.

Drain the power steering fluid through a suitable container when servicing the power steering line and hose making sure to keep O-ring seals from falling. You must detach both power steering lines and later unfasten the mounting bolt which secures them. Start by removing first the power steering return line bracket-to-gear bolt followed by releasing its clamp before taking out the power steering return line. O-ring seals should be correctly installed on both power steering pressure and return lines when reattaching the components. The power steering system completion requires following the removal steps in reverse order and include filling and bleeding steps before conducting a leak check.

The first step in servicing the steering gear to fluid cooler return hose requires draining power steering fluid into a suitable drain container. Unlock and detach the steering gear-to-fluid cooler return hose from the power steering cooler after removing its clamp. Service the steering gear to fluid cooler return hose by first removing its bracket-to-steering gear stud while following the reinstallation torque requirements of 10 Nm (89 inch lbs.). You should remove the subframe bolt that connects the steering gear-to-fluid cooler return hose bracket and ensure to tighten it to 10 Nm (89 inch lbs.) when reinstalling it. The procedure requires removal of the power steering line clamp plate bolt before reinstallation while tightening it to 25 Nm (18 inch lbs.). The O-rings for power steering system lines must never be interchanged because their diameters differ between pressure and return lines. The clamp plate must be rotated to eliminate the steering gear-to-fluid cooler return hose then users can insert a new O-ring seal for the return hose. The removal process should end by filling the power steering system.

Tighten it to 25 Nm (18 ft. lbs.).

They have different diameters, and the O-rings are not interchangeable.
