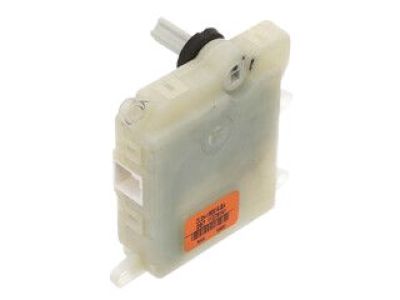

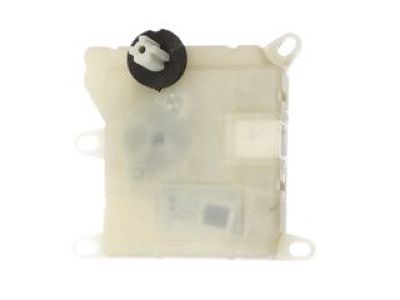

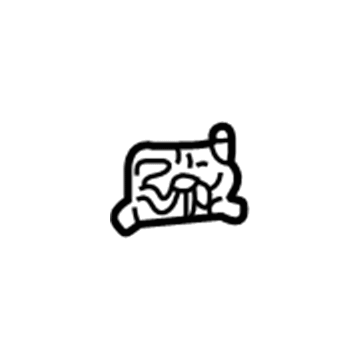

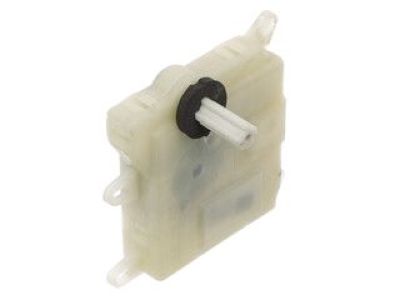

Ford 2L3Z-19E616-BA
Actuator

Begin the service and repair process of the air door actuator for panel/floor door by taking out the floor duct. The vacuum control motor rotation disconnectes the vacuum control motor rod from the panel/floor door before disconnecting the vacuum line connector. Start by removing the screws that fasten the vacuum control motor before sliding the rod from the door and extracting the panel/floor door vacuum control motor. Maintain the opposite sequence for reinstalling the device.

Safety should be ensured prior to actuator repair through back up supply power depletions to prevent air bag deployment. Disconnecting the ground cable then waiting one minute is necessary followed by removal of any additional batteries if present. When you need to service the floor console from vehicles you must first detach the console but you will need to use tools to remove the floor duct panel by unfastening pin-type retainers while unscrewing an expandable clip. The right-hand instrument panel brake will be detached through the procedure of bracket and nut removal and bolt removal. The left-hand instrument panel needs its lower nut removed before placing the brace in an appropriate area. The restraints control module (RCM) electrical connector must be disconnected along with removing the RCM assembly by dislodging its retaining bolts. You should start with floor duct removal by first unfastening the two screws present at each side then detach the electronic blend door actuator by removing screws and disconnecting the connector before pulling downward to release the actuator shaft. To install the electronic blend door actuator connect its shaft first and then attach screws and connect the power connector. Fasten the floor duct back in place by using the two screws and verify that the RCM retaining bolts receive the correct torque value to enable proper system functioning. To install the next stage you should put back the RCM and bracket assembly after joining the RCM electrical connector and tightening both the left-hand instrument panel lower nut and right-hand instrument panel brace. End the replacement by attaching the floor duct panel through its pin-type retainers and expander clip and for vehicles with consoles reattach them before reconnecting the battery ground cable.

Reinstall the RCM and bracket assembly, reconnect the RCM electrical connector, and install the LH instrument panel lower nut.

Slide the rod out of the door.

Begin by removing the rear floor duct followed by the floor duct.

Disconnect the connector from the electronic actuator.

The vacuum control motor must be rotated to disconnect the rod from the panel/floor door.

Reconnect the RCM electrical connector and install the left-hand instrument panel lower nut.

Begin by removing the floor duct panel by taking out the pushpins and releasing the expander clip.

Next, disconnect the vacuum line and remove the screws securing the air inlet door vacuum control motor.
