Ford CL1Z-8005-A

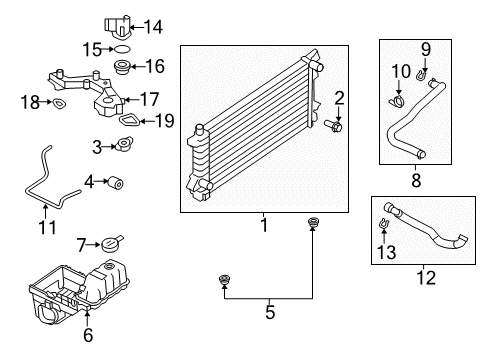

Radiator

Place the vehicle in NEUTRAL position on a hoist before starting radiator maintenance. Start by taking off both headlamp assemblies from the right and left side together with the cooling fan shroud. You must take out the two radiator bolts while making sure to retain them tight at 15 Nm (133 lb-in) after installing them. Next detach the two bolts which hold the coolant expansion tank in position before placing it aside but ensure all bolts reach a torque specification of 15 Nm (133 lb-in) when reinstalling the tank. First detach the horn assembly from its electrical connection, then remove the bolt while pulling out the assembly before tightening the bolt to 10 Nm (89 lb-in) when reinstalling. The process requires removal of six pin-type retainers that secure the left-hand and right-hand air deflector to the condenser core. There exists two transmission fluid cooler-to-radiator hoses you need to disconnect. Moving the cooling module backward allows separation of the condenser mounts from the radiator by first depressing the retaining tabs on the lower brackets followed by lifting upward to detach the brackets. After radiator removal you should reinstall it by following the removal steps in reverse while checking the transmission fluid level.

Position the vehicle on a hoist with it in NEUTRAL and drain the engine cooling system.

Install the coolant expansion tank/lower ACL half with the two bolts, tightening them to 15 Nm (133 lb-in), then connect the power steering cooler hose to the power steering cooler and install the clamp, attaching the retainer to the radiator.
