Ford 8L3Z-18611B69-AA

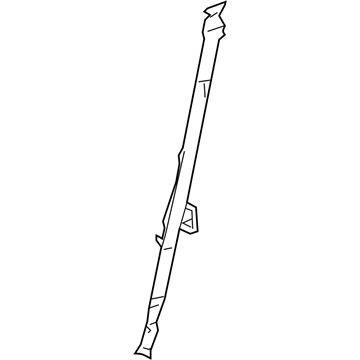

Retractor Assembly, Rear Driver Side

All seat belt assemblies need inspection both in retractors and belt tension sensors (BTS if equipped) as well as buckles and shoulder belt height adjusters (if equipped) and child seat tether attachments and their attaching hardware after a collision. Whenever no technician declares damage-free operation of present assemblies, install fresh belt systems. New belt assemblies need to be installed for all non-used assemblies during the collision because improper maintenance increases future collision injury risks. A periodic examination of seat belt assemblies is vital to verify their undamaged status and operating condition since subjecting them to severe stress occurs. It is essential to inspect attaching areas for damage before new seat belt installation while reworking sheet metal when damage leads to original shape and structural integrity loss is detected. The proper installation instructions should guide your new seat belt setup before verifying its operation through the Functional Test.

Perform the Functional Test following the appropriate instructions.

New belt assemblies should be installed unless a qualified technician determines that the assemblies show no damage and operate correctly.

A new safety belt assembly must be installed.

The safety belt retaining areas for damage and distortion.

Reverse the removal procedure and check the active restraint system for correct operation.

Failure to adhere to these guidelines could increase the risk of injury in collisions.

Remove the safety belt anchor bolt and safety belt, ensuring to tighten the new installation to 55 Nm (41 lb-ft) with the anti-rotation tab correctly aligned.
