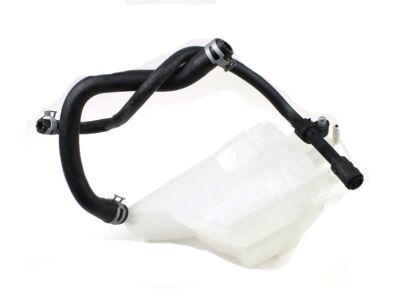

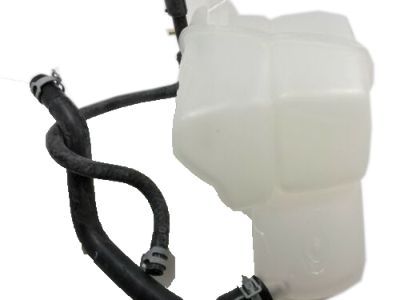

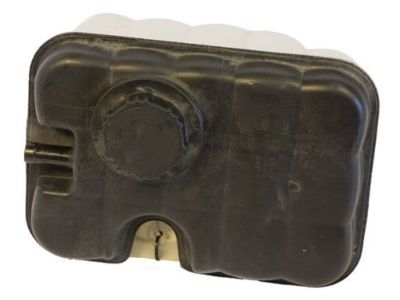

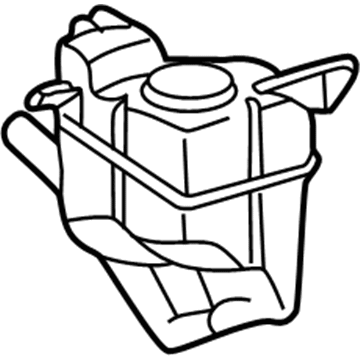

Ford 5W4Z-8A080-AA
Reservoir

The service process for coolant reservoir requires first draining the cooling system. The service on the coolant reservoir begins with removing both the cowl panel grille and working through the 7 bolts that secure the cross vehicle support until torque reaches 20 Nm (15 ft. lbs.) for installation. Permission the engine ventilation hose and air bleed hose from the degas bottle and place them safely aside before disconnecting the degas bottle return hose. Assist the degas bottle removal by taking off its two retaining bolts but tighten these bolts to 6 Nm (53 inch lbs.) when reinstalling. The process should end with filling and bleeding the cooling system while reversing the removal steps.

The service process for coolant reservoirs beings with draining the cooling system. The service of coolant reservoir starts with cowl panel grille removal followed by removing the bolts securing the cross vehicle support. Reinstall these bolts at 20 Nm (15 ft. lbs.) torque. The service begins with engine vent hose and air bleed hose removal from the degas bottle followed by setting them aside before disconnecting the degas bottle return hose. The technician must remove two bolts which secure the degas bottle after tightening these fasteners to 6 Nm (53 inch lbs.) before reinstalling. Reverse the removal steps while performing cooling system fill-ups and bleeding.

Next, remove the cowl vent screen.

Take out the components in the order specified in the accompanying illustration and table.

Remove the cowl vent screen and disconnect the engine vent hose, separating the air bleed hose from the degas bottle.

Set them aside and then disconnect the degas bottle return hose.

Remove the two bolts to take the degas bottle out of the vehicle.

Take out the components in the order specified in the accompanying illustration and table.

Remove the two bolts to take the degas bottle out of the vehicle.
