2002 Ford F-350 Super Duty Senders

Part Notes: W/Diesel Engines, W/Diesel Engines;W/Gasoline Engines, W/Chassis Cab

Part Notes: Multi-function switch, #13K359, 7 cavity connector, also part of #14A320, O/8500 GVW , Wiring Circuit: 7

Part Notes: Kit to add spade type starter solenoid when vehicle had spade type

Part Notes: 2 cavity, male, Lamp - Courtesy - Door
2 cavity, male, Lamp - License

Part Notes: 2 cavity, male , Horn
2 cavity, male , Lamp , Side Marker (Rear Fender)
2 cavity, male , Switch , Brake Pressure

Part Notes: 6 cavity, female, Motor - Transfer Case Electronic Shift

Part Notes: 2 cavity, male, Motor - Power Window - RH & LH - Rear

Part Notes: 2 cavity, male, Motor - Idle Air Control
2 cavity, male, Motor - Windshield Washer Fluid Pump

Part Notes: 16 cavity, male, Test Connector - Diagnostic

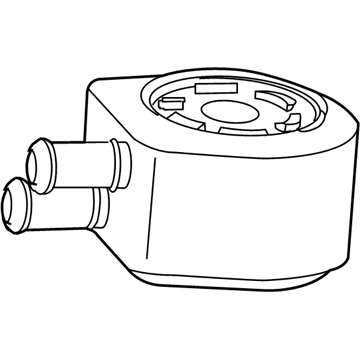

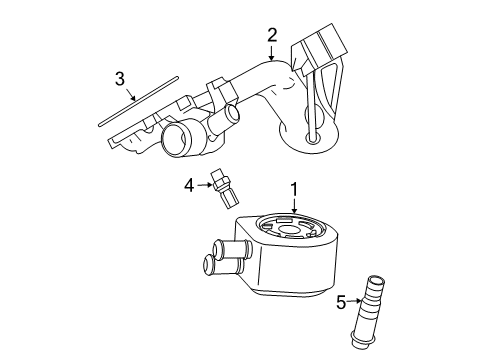

Part Notes: Cooler O-ring is NOT serviced seperatly, For coolant hoses, refer to 8286 Lower Radiator hose

Part Notes: Pressed in block behind water pump; O-rings are W704593- S100

Part Notes: 3 cavity to alternator , Wiring Circuit: 3

Part Notes: Kit, 12 cavity, male - for terminals contact FCS at 877-682-4276, Sensor - Transmission Range

Part Notes: 6 cavity, Switch - Passenger Airbag Deactivation (14B268)

Part Notes: 4 cavity, male (10 gauge), Resistor - Blower Motor

Part Notes: 8 cavity, female, Seat - Power Connection (Driver)

Part Notes: 6 cavity, male, Sensor - Mass Air Flow , Wiring Circuit: 6

Part Notes: 4 cavity, male, gold terminals, Sensor - O2 (HEGO/ EGO), except Diesel

Part Notes: 3 cavity, female, Sensor - Delta Pressure Feedback EGR, except Diesel

Part Notes: 2 cavity, female, Motor - Transfer Case Shift

Part Notes: 3 cavity, gold terminals (also reference TSB #07S57), Sensor - Camshaft Position, 7.3

Part Notes: 3 cavity, male - 14 Gauge, Lamp - CHMSL (Center High Mount Stop Lamp)

Part Notes: 4 cavity, female, Junction Box - Relay, 6.0, 6.8, 7.3

Part Notes: 2 cavity, male, Valve - Vapor Management, 5.4, 6.8

Part Notes: LH - Jumper harness from #14A005 to mirror, w/breakaway mirror

Part Notes: 4 cavity, female, Switch - A/C Compressor Clutch Cycling
4 cavity, female, Switch - A/C Pressure Cut Off
4 cavity, female, Switch - Barometric Pressure

Part Notes: 3 cavity, female, Sensor - Throttle Position, except Diesel

Part Notes: 3 cavity, male, Lamp - Backup
3 cavity, male, Lamp - Park/Turn/Stop, with pickup box

Part Notes: 3 cavity, male, Sensor - Reverse Park Aide (RPA)

Part Notes: 12 cavity, male, Sensor - Transmission Range

Part Notes: 1 cavity, male, Capacitor - Ignition/Radio

Part Notes: 10 cavity, female, Switch - Multifunction

Part Notes: A/C cycle switch - 9 and 6 o'clock locating tab - includes 14A468 lock/spacer , Wiring Circuit: 4

Part Notes: 3 cavity, male, Alternator, with Diesel, lower

Part Notes: 3 cavity, male, Lamp - Headlamp - High/Low Beam Non-AERO (Halogen)

Part Notes: 3 cavity, female, Sensor - Manifold Absolute Pressure, Diesel

Part Notes: 2 cavity, male, Solenoid - EGR Vacuum Regulator

Part Notes: Use for general HEGO service of vehicles that have NOT been modified per TSB# 03-9-11. In all cases, LH and RH control HEGO's should be matching part numbers.

Part Notes: 3 cavity, male, Lamp - Headlamp - High/Low Beam (AERO)

Part Notes: 8 cavity, female, Motor - Heater/AC Blend Door

Part Notes: 2 cavity, male, Sensor - Cylinder Head Temperature, 6.8 and 5.4

Part Notes: 8 cavity, female, Switch - Seat (Driver)
8 cavity, female, Switch - Seat (Passenger)

Part Notes: 8 cavity, female, Switch - Power Window - Driver

Part Notes: F5AB-14A464-AB, mates w/12A697 air charge temp sensor, 2 cavity , Wiring Circuit: 2

Part Notes: 6 cavity, male, gold terminals, Sensor - Mass Air Flow

Part Notes: 2 cavity, male (Tin terminals), Resistor - Daytime Running Lamp
2 cavity, male (Tin terminals), Solenoid - Canister Vent

Part Notes: 2 cavity, male, Switch - Coolant Temperature Sending Unit

Part Notes: RH - Jumper harness from #14A005 to mirror, w/breakaway mirror

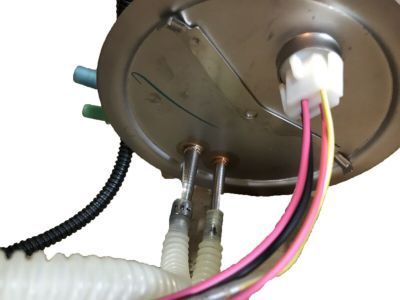

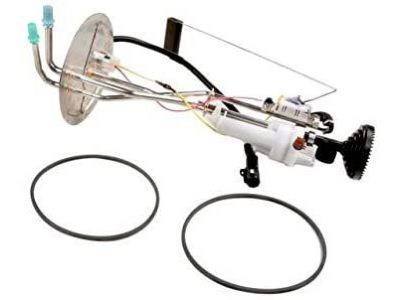

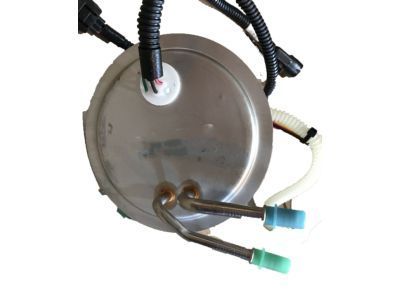

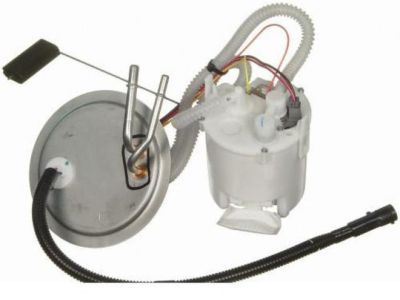

Part Notes: 4 cavity, male, Fuel Pump/Sending Unit, (w/aux fuel tank)
4 cavity, male, Fuel Pump/Sending Unit, 49 states

Part Notes: 2 cavity, female, Fuel injector, with 6.8
2 cavity, female, Horn

Part Notes: 3 cavity, male, Alternator, except Diesel
3 cavity, male, Alternator, with Diesel, primary or upper
3 cavity, male, Sensor - Brake Fluid Level

Part Notes: 2 cavity, female, Switch - Hydro-Max Flow

Part Notes: 10 cavity, female (Tin Terminals), Sensor - Accelerator Pedal Position, 7.3

Part Notes: 6 cavity, male, Switch - Fuel Tank Selector, Diesel

Part Notes: Multi-function switch, #13K359, 9 cavity connector , Wiring Circuit: 9

Part Notes: 16 Way Male-For Scan Tool, cover and retainer included. Located on 14401 harness

Part Notes: 2 cavity, male, Motor - Heater A/C Blower (front)

Part Notes: 2 cavity, female, Switch - Air Cleaner Restrictor

Part Notes: 10 cavity, male, Actuator - Speed Control

Part Notes: 2 cavity, male - includes (1) connector (1) boot, (2) terminal pigtails,(2) heat shrink butt connectors, Sensor - Output Shaft Speed
2 cavity, male - includes (1) connector (1) boot, (2) terminal pigtails,(2) heat shrink butt connectors, Speed sensor, sensor located in rear axle

Part Notes: 3 cavity, female, Switch - Heater A/C Temperature Control

Part Notes: 1 cavity, male, Switch - Oil Sending Unit

Part Notes: 2 cavity, female, Coil - 5.4, 6.8
2 cavity, female, Sensor - Camshaft Postion, 6.8, 5.4
2 cavity, female, Sensor - Crankshaft Postion, 6.8, 5.4

Part Notes: 12 cavity, female, Motor - Windshield Wiper

Part Notes: 3 cavity, male, Switch - Inertia (Fuel Pump)

Part Notes: 6 cavity, male, Valve - Fuel Tank Selector, 7.3 diesel

Part Notes: 2 cavity, female, Lamp - Front Side Marker
2 cavity, female, Lamp - Running Board

Part Notes: 8 cavity, male, Liftgate/Tailgate Jumper - Inline

Part Notes: 2 cavity, male, Fuel injector , Wiring Circuit: 2, Color: Black
2 cavity, male, Lamp - Side Marker - Rear , Wiring Circuit: 2, Color: Black

Part Notes: 2 relay panel, Relay - Transfer Case Shift Control

Part Notes: 2 cavity, female, Sensor - Crankshaft Position, 5.4, 6.8

Part Notes: 2 cavity, male, Sensor - Air Charge Temperature, 7.3
