3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.Front Lamps - Headlamp Components
- 2.Front Lamps - Headlamp Components (With Halogen Lamps)
- 3.Front Lamps - Headlamp Components (With LED Headlamps)
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
MSRP: $1853.37 Your Price: $1251.021 - 1
MSRP: $2076.57 Your Price: $1401.681 - 1
JL3Z-13008-AH
Lamp AssemblyHeadlamp Assembly- Part Notes: 2018-20, W/Led Headlamps, W/O Level 5
- Location: Driver Side
MSRP: $1631.24 Your Price: $1468.111 - 1JL3Z-13008-AJ
Lamp AssemblyHeadlamp Assembly- Part Notes: 2018-20, W/Led Headlamps, W/Level 5
- Location: Passenger Side
MSRP: $1602.78 Your Price: $1081.881 - 1JL3Z-13008-AG
Lamp AssemblyHeadlamp Assembly- Part Notes: 2018-20, W/Led Headlamps, W/O Level 5
- Location: Passenger Side
MSRP: $1753.86 Your Price: $1578.481 - 1JL3Z-13008-AK
Lamp AssemblyHeadlamp Assembly- Part Notes: 2018-20, W/Led Headlamps, W/Level 5
- Location: Driver Side
MSRP: $1801.90 Your Price: $1216.281 - 1
KL3Z-13008-L
Headlamp Assembly- Part Notes: 2018-20, W/Halogen Lamps, W/Level 4
- Location: Passenger Side
MSRP: $1076.57 Your Price: $678.241 - 1KL3Z-13008-M
Headlamp Assembly- Part Notes: 2018-20, W/Halogen Lamps, W/O Level 4
- Location: Passenger Side
MSRP: $296.88 Your Price: $271.941 - 1MSRP: $944.95 Your Price: $595.321
- 1MSRP: $336.48 Your Price: $305.521
- 2

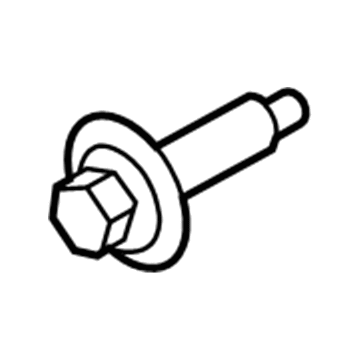

-W505424-S450B
Bolt And Washer Assembly - Hex HeadHeadlamp Assembly Bolt- Part Notes: 2018-20, W/Halogen Lamps;2018-20, W/Led Headlamps
- Location: Driver Side;Passenger Side
MSRP: $5.65 Your Price: $3.334 - 2
MSRP: $7.75 Your Price: $4.564
- 3
-W712160-S300

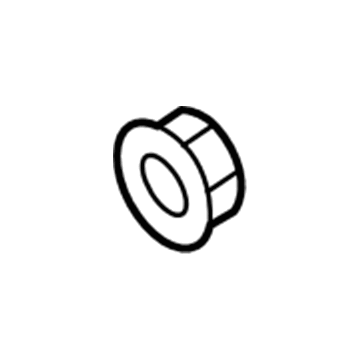

Nut - SpecialHeadlamp Assembly Retainer Nut- Part Notes: 2018-20, W/Halogen Lamps, Square;2018-20, W/Led Headlamps, Square
- Location: Driver Side;Passenger Side
MSRP: $3.25 Your Price: $1.924 - 3
-W711079-S300
NutHeadlamp Assembly Retainer Nut- Part Notes: 2018-20, W/Halogen Lamps, Round;2018-20, W/Led Headlamps, Round
- Location: Driver Side;Passenger Side
MSRP: $3.25 Your Price: $1.924 - 3
-W719173-S300
Retainer - SpecialHeadlamp Assembly Retainer Nut- Part Notes: 2017-20
- Location: Driver Side;Passenger Side
MSRP: $4.25 Your Price: $2.504
- 4
MSRP: $10.15 Your Price: $7.161 - 4
MSRP: $11.78 Your Price: $8.311
- 4

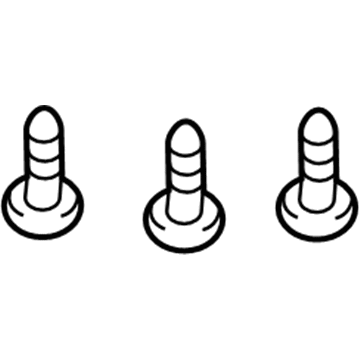

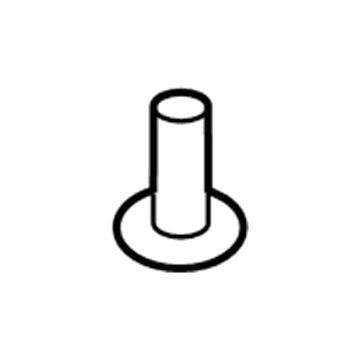

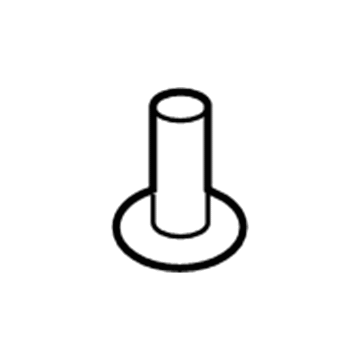

-W717082-S300

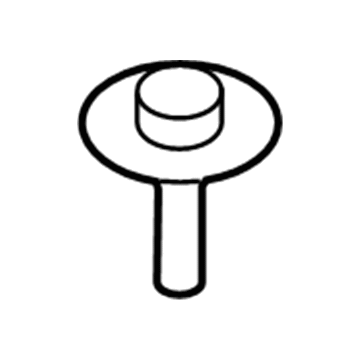

Pin - SpecialHeadlamp Assembly Rivet- Part Notes: 2018-20, W/Halogen Lamps;2018-20, W/Led Headlamps
- Location: Driver Side;Passenger Side
MSRP: $4.25 Your Price: $2.504
- 5
MSRP: $3.25 Your Price: $1.924 - 5

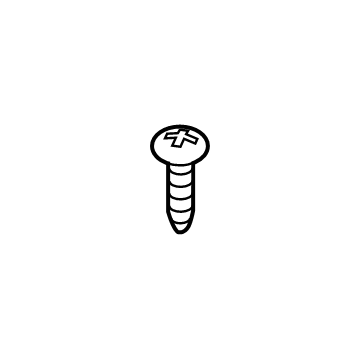

-W703277-S900

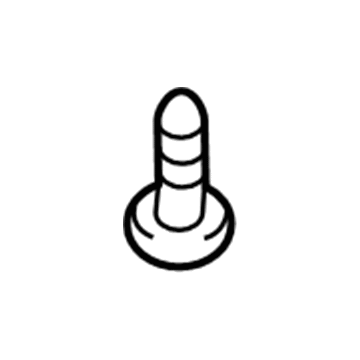

ScrewHeadlamp Assembly Screw- Part Notes: 2018-20, W/Halogen Lamps;2018-20, W/Led Headlamps
- Location: Driver Side;Passenger Side
MSRP: $7.75 Your Price: $4.564
- 6
MSRP: $408.00 Your Price: $254.691
- 6

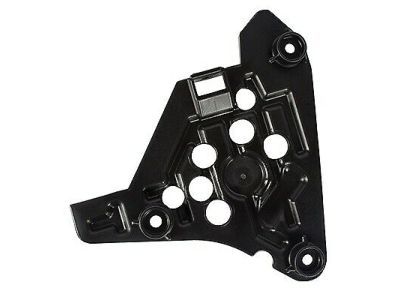

JL3Z-17C972-B

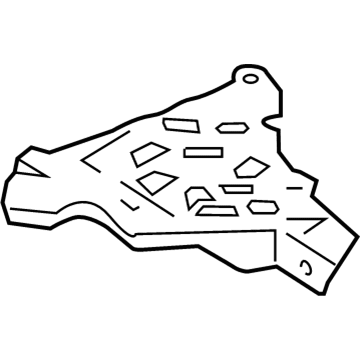

Bracket - Bumper MountingBracket- Part Notes: 2018-20, W/Halogen Lamps;2018-20, W/Led Headlamps
- Location: Passenger Side

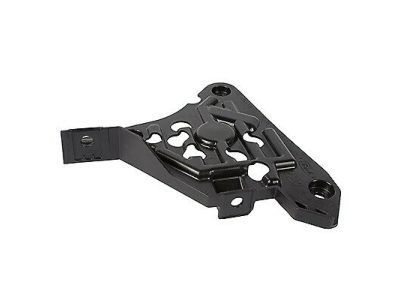

MSRP: $32.98 Your Price: $30.211 - 6JL3Z-17C973-B
Bracket- Part Notes: 2018-20, W/Halogen Lamps;2018-20, W/Led Headlamps
- Location: Driver Side
MSRP: $44.26 Your Price: $40.541
- 7
MSRP: $6.65 Your Price: $3.914 - 7

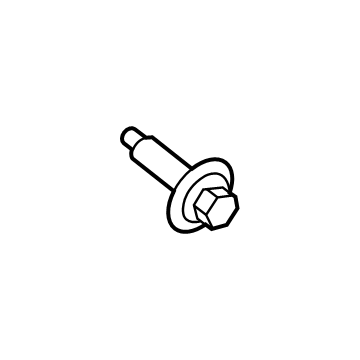

-W716714-S442
Screw And Washer AssemblyBracket Screw- Part Notes: 2018-20, W/Halogen Lamps;2018-20, W/Led Headlamps
- Location: Driver Side;Passenger Side
MSRP: $3.25 Your Price: $1.924
- 8
-W505974-S307
ScrewBracket Rivet- Part Notes: 2018-20, W/Halogen Lamps;2018-20, W/Led Headlamps
- Location: Driver Side;Passenger Side
MSRP: $3.25 Your Price: $1.924
- 9

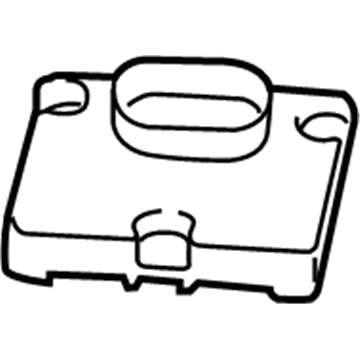

FL3Z-13C170-B
Ballast AssemblyBallast- Part Notes: 2018-20, W/Led Headlamps
- Location: Driver Side;Passenger Side
MSRP: $408.00 Your Price: $254.691
- 9

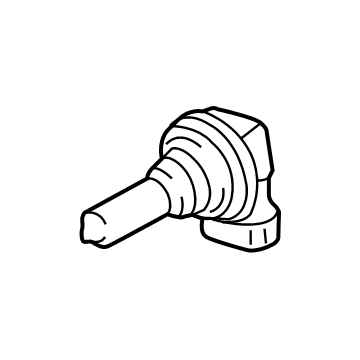

BE8Z-13N021-B
BulbLower Beam Bulb- Part Notes: 2018-20, W/Halogen Lamps
- Location: Driver Side;Passenger Side
MSRP: $28.83 Your Price: $19.811
- 10
-W715133-S900
ScrewBallast Screw- Part Notes: 2018-20, W/Led Headlamps
- Location: Driver Side;Passenger Side
MSRP: $6.65 Your Price: $3.914
- 10
4S4Z-13N019-AA
BootLower Beam Bulb Cap- Part Notes: 2018-20, W/Halogen Lamps
- Location: Driver Side;Passenger Side
MSRP: $24.10 Your Price: $16.561
- 11
BM5Z-13N021-B
BulbHigh Beam Bulb- Part Notes: 2018-20, W/Halogen Lamps
- Location: Driver Side;Passenger Side
MSRP: $29.33 Your Price: $20.151
- 12
4S4Z-13N019-AA
BootHigh Beam Bulb Cap- Part Notes: 2018-20, W/Halogen Lamps
- Location: Driver Side;Passenger Side
MSRP: $24.10 Your Price: $16.561
- 13

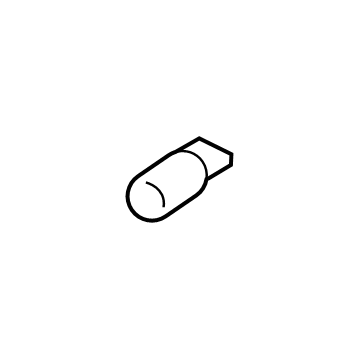

E5RY-13466-B
BulbMarker Lamp Bulb- Part Notes: 2018-20, W/Halogen Lamps
- Location: Driver Side;Passenger Side
MSRP: $4.00 Your Price: $2.8210
- 14

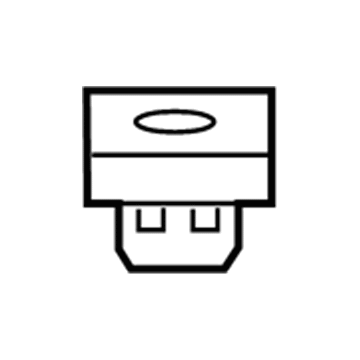

BB5Z-13411-A
Socket AssemblyMarker Lamp Bulb Socket- Part Notes: 2018-20, W/Halogen Lamps
- Location: Driver Side;Passenger Side
MSRP: $21.67 Your Price: $14.891
- 15
MSRP: $15.50 Your Price: $10.931
- 16
JL3Z-13411-A
Socket AssemblySignal Bulb Socket- Part Notes: 2018-20, W/Halogen Lamps
- Location: Driver Side;Passenger Side
MSRP: $8.33 Your Price: $5.881
MSRP: $1666.67 Your Price: $1125.001- MSRP: $1666.67 Your Price: $1050.001
MSRP: $48.60 Your Price: $31.411
MSRP: $38.00 Your Price: $23.931
