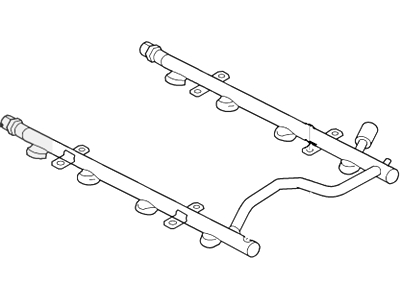

OEM 2002 Ford Thunderbird Fuel Rail

2002 Ford Thunderbird Fuel Rail Parts Q&A

• Q: What precautions should be taken when servicing the fuel rail to avoid personal injury on 2002 Ford Thunderbird?

  A: Evaluation of the fuel rail requires workers to stay away from all combustible items because dangerous fuel mixtures present in this area risk causing bodily harm. The safety rule to follow when working on fuel system lines requires you to bleed pressure before disconnection because even an idle engine has high fuel pressure remaining inside the system. Start your work by taking off the engine appearance cover yet before you start relieving the fuel pressure. Separate the air cleaner outlet tube from the throttle body while you disconnect its electrical connector as well as vacuum hose from the fuel pressure sensor and disconnect its fuel line. Make sure to disconnect the vacuum hose at the jumper connection first. The procedure starts with removing nuts and engine appearance cover bracket and continuing with disconnecting the eight fuel injector electrical connectors where the right-hand side serves as an example while the left-hand side follows the same sequence. The retention clip secures the throttle body heater return hose but you need to disengage the Camshaft Position (CMP) sensor along with the removal of the air assist hose from the intake manifold's both sides and the Idle Air Control (IAC) valve through hand pressure on the fittings. Proceed to remove the four manifold fuel injection supply bolts followed by the removal of retaining clips and fuel injectors from the manifold while discarding the two seals from each injector. A reversal of removal methods must be followed for installation while adding new O-ring seals and applying clean engine oil to them.
