OEM 2005 Ford Thunderbird Fuel Rail

Engine Fuel Rail
  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Vehicle by Model
Make
Model
Year
or
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

1 Fuel Rail found

  • 2005 Ford Thunderbird Fuel Rail - 6W4Z-9D280-AA

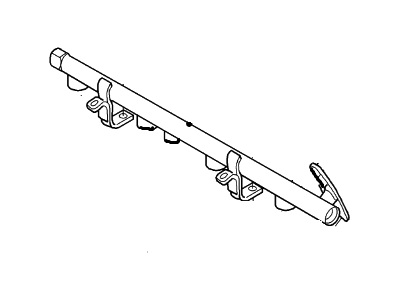

    2005 Ford Thunderbird Fuel Rail Diagram - 6W4Z-9D280-AA
    View related parts
    Product Specifications
    • Other Name: Manifold Assembly - Fuel; Manifold Assembly - Fuel Supply
    • Manufacturer Note: Complete Assembly
    • Replaces: 3W4Z-9D280-AC
    • Base No.: 9D280
    • Item Weight: 4.80 Pounds
    • Item Dimensions: 17.2 x 17.2 x 9.5 inches
    • Condition: New
    • Fitment Type: Direct Replacement
    • SKU: 6W4Z-9D280-AA
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    More Info
    Fits the following 2005 Ford Thunderbird Submodels:
    • 50th Anniversary Edition, Base, James Bond Edition, Pacific Coast Roadster | 8 Cyl 3.9 L GAS

2005 Ford Thunderbird Fuel Rail

If you're seeking quality and affordability, look no further than our extensive inventory of genuine 2005 Ford Thunderbird Fuel Rail available at FordPartsDeal.com. You can confidently purchase our OEM 2005 Ford Thunderbird Fuel Rail as they are supported by the manufacturer's warranty and our hassle-free return policy, alongside the benefit of our fast delivery service.

2005 Ford Thunderbird Fuel Rail Parts Q&A

  • Q: What precautions should be taken when servicing the fuel rail to prevent personal injury on 2005 Ford Thunderbird?
    A: The presence of highly flammable mixtures in fuel rail systems mandates that servicing personnel should avoid both smoking and open flames when working in this area to prevent personal injuries from fire. The fuel system operates under high pressure during engine idling so technicians must discharge pressure from the system before disconnecting any fuel components to avoid harm. Start operations by disconnecting the battery ground cable and also remove the air cleaner outlet pipe. Relieve the pressure from the fuel system before starting the removal of the four engine appearance cover mounting bracket nuts and their brackets which should be tightened back to 6 Nm (53 lb-in) during reinstallation. First disconnect the electrical connector and vacuum connector of the fuel pressure sensor and then proceed to disconnect the eight fuel injector electrical connectors with the inclusion of the fuel temperature sensor electrical connector. Detach the fuel supply tube retaining clip while disconnecting the spring lock coupling of the tube. The fuel injection supply manifold together with its fuel injectors should come off using the four bolts while torqueing them to 9 Nm (80 lb-in) throughout assembly. Discard the 16 O-ring seals from the fuel injection supply manifold since new special fuel-resistant seals need to be used instead of reusing the old ones. Apply clean engine oil on new O-ring seals before installing the fuel injection O-rings by pressing together the aligned fittings until they make a click sound and then testing by pulling on the fittings to check complete connection.
