How to service and repair the upper control arm on Ford Edge?

Start the procedure to service and repair the upper control arm by taking off the wheel along with its tire. Place the suitable jackstand under the lower arm before increasing the suspension height. First remove and dispose of the upper arm outboard bolt and its matching nut then proceed with lowering the lower arm before removing the jack. Position a jackstand at the subframe and discard the two bolts used for the bushing brace before subframe bushing retrieval. The removal of the upper arm inboard bolt requires subframe lowering through slow operation of the jack to reduce spring pressure. Therefore start by removing the subframe rearward nut. Complete the procedure by uninstalling the upper arm inboard bolt along with its associated nut and remove the upper arm from service. Position the upper arm in its correct position before installing the upper arm inboard bolt and nut without tightening. Lift the jack while adding the subframe rearward nut until it reaches 90 Nm (66 lb-ft) torque followed by installation of the subframe forward nut reaching the same torque value. Fasten the two subframe bushing brace bolts by applying 25 Nm (18 lb-ft) torque. Lift the jack again to access the lower arm before attaching the upper arm outboard components yet keeping them untightened. After removing the jack you should install both tire and wheel. Tighten the upper arm outboard bolt to 150 Nm (111 lb-ft) when the vehicle rests on the wheel and tire before applying the same torque value to the upper arm inboard bolt.

OEM Ford Edge Control Arm

Suspension Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Control Arms found

View related parts

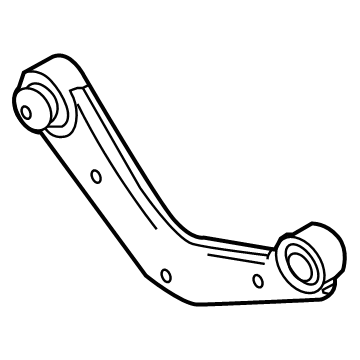

Ford Edge Upper Control Arm, Rear Passenger Side Part Number: E1GZ-5500-A
$89.30 MSRP: $129.98
You Save: $40.68 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly - Rear Suspension; Suspension Control Arm, Rear Right Upper Rearward; Lateral Link; Control Arm
- Manufacturer Note: RH Upper
- Position: Rear Upper Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2021 Ford Edge | SE, SEL, Sport, ST, ST-Line, Titanium | 4 Cyl 2.0 L GAS, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts

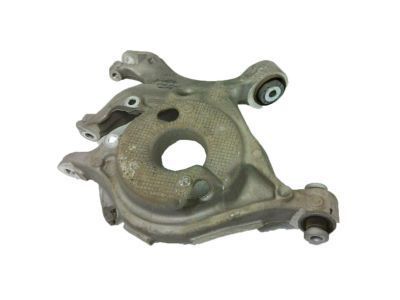

Ford Edge Lower Control Arm, Rear Passenger Side Part Number: H2GZ-5500-A
$337.10 MSRP: $495.00
You Save: $157.90 (32%)
ADD TO CART
Product Specifications
- Other Name: Arm Assembly - Rear Suspension; Suspension Control Arm, Rear Right Lower Rearward; Control Arm
- Manufacturer Note: RH Lower
- Position: Rear Lower Passenger Side
- Replaces: F2GZ-5500-A, F2GZ-5500-D, F2GZ-5500-G
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2024 Ford Edge | SE, SEL, Sport, ST, ST-Line, Titanium | 4 Cyl 2.0 L GAS, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts

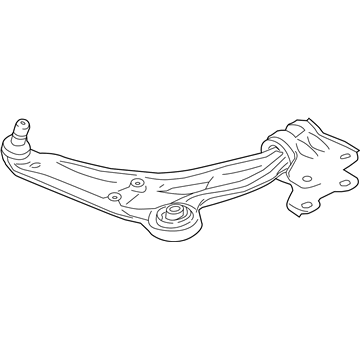

Ford Edge Lower Control Arm, Front Driver Side Part Number: 8T4Z-3079-A
$174.59 MSRP: $287.27
You Save: $112.68 (40%)
ADD TO CART
Product Specifications
- Other Name: Arm Assembly - Front Suspension; Front Left Control Arm and Ball Joint Assembly; Control Arm
- Position: Front Driver Side
- Replaces: 7T4Z-3079-AL
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2014 Ford Edge | Limited, SE, SEL, SEL Plus, Sport | 4 Cyl 2.0 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
View related parts
Ford Edge Lower Control Arm, Front Passenger Side Part Number: 8T4Z-3078-A
$176.80 MSRP: $290.91
You Save: $114.11 (40%)
ADD TO CART
Product Specifications
- Other Name: Arm Assembly - Front Suspension; Front Right Control Arm and Ball Joint Assembly; Control Arm
- Position: Front Passenger Side
- Replaces: 7T4Z-3078-AR
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2014 Ford Edge | Limited, SE, SEL, SEL Plus, Sport | 4 Cyl 2.0 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
View related parts

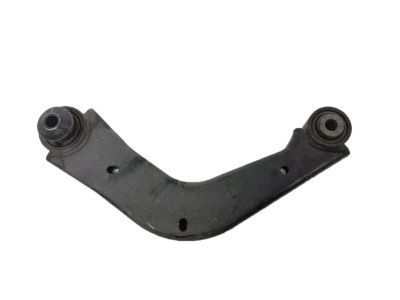

Ford Edge Trailing Arm, Rear Part Number: E1GZ-5K898-C
$25.46 MSRP: $36.12
You Save: $10.66 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod; Suspension Control Arm, Rear Lower Forward; Lateral Arm, Rear; Suspension Trailing Arm; Lateral Link; Lateral Arm
- Position: Rear
- Replaces: E1GZ-5K898-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2024 Ford Edge | SE, SEL, Sport, ST, ST-Line, Titanium | 4 Cyl 2.0 L GAS, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts

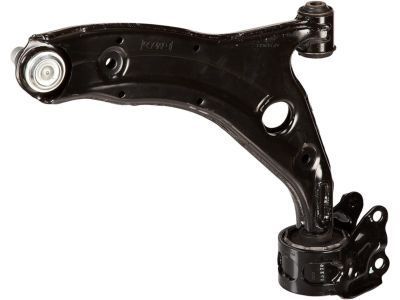

Ford Edge Lower Control Arm, Front Driver Side Part Number: F2GZ-3079-H
$316.67 MSRP: $507.27
You Save: $190.60 (38%)
ADD TO CART
Product Specifications
- Other Name: Arm Assembly - Front Suspension; Suspension Control Arm, Front Left; Control Arm
- Position: Front Driver Side
- Replaced by: F2GZ-3079-K
- Replaces: F2GZ-3079-A, MCF-2335, F2GZ-3079-C, MCF-2462, F2GZ-3079-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2024 Ford Edge | SE, SEL, Sport, ST, ST-Line, Titanium | 4 Cyl 2.0 L GAS, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Ford Edge Upper Control Arm, Rear Passenger Side Part Number: E1GZ-5500-C
$103.28 MSRP: $150.33
You Save: $47.05 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly - Rear Suspension; Suspension Control Arm, Rear Right Upper Rearward; Lateral Link; Control Arm
- Manufacturer Note: RH Upper
- Position: Rear Upper Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2024 Ford Edge | SE, SEL, Sport, ST, ST-Line, Titanium | 4 Cyl 2.0 L GAS, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts

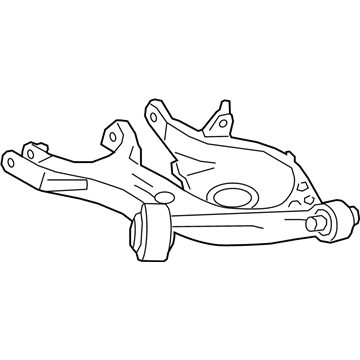

Ford Edge Lower Control Arm, Rear Driver Side Part Number: H2GZ-5500-B
$337.10 MSRP: $495.00
You Save: $157.90 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly - Rear Suspension; Suspension Control Arm, Rear Left Lower Rearward; Control Arm
- Manufacturer Note: LH Lower
- Position: Rear Lower Driver Side
- Replaces: F2GZ-5500-B, F2GZ-5500-H, F2GZ-5500-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2024 Ford Edge | SE, SEL, Sport, ST, ST-Line, Titanium | 4 Cyl 2.0 L GAS, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Ford Edge Lower Control Arm, Front Passenger Side Part Number: F2GZ-3078-H
$318.94 MSRP: $510.91
You Save: $191.97 (38%)
ADD TO CART
Product Specifications
- Other Name: Arm Assembly - Front Suspension; Suspension Control Arm, Front Right; Control Arm
- Position: Front Passenger Side
- Replaced by: F2GZ-3078-K
- Replaces: F2GZ-3078-A, F2GZ-3078-B, F2GZ-3078-C, MCF-2336, MCF-2461
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2024 Ford Edge | SE, SEL, Sport, ST, ST-Line, Titanium | 4 Cyl 2.0 L GAS, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts

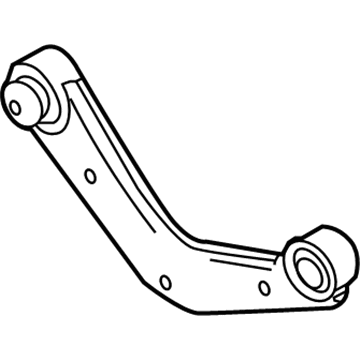

Ford Edge Upper Control Arm, Rear Driver Side Part Number: E1GZ-5500-D
$82.33 MSRP: $130.73
You Save: $48.40 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly - Rear Suspension; Suspension Control Arm, Rear Left Upper Rearward; Lateral Link; Control Arm
- Manufacturer Note: LH Upper
- Position: Rear Upper Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2024 Ford Edge | SE, SEL, Sport, ST, ST-Line, Titanium | 4 Cyl 2.0 L GAS, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Ford Edge Upper Control Arm, Rear Driver Side Part Number: E1GZ-5500-B
$84.46 MSRP: $129.98
You Save: $45.52 (36%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly - Rear Suspension; Suspension Control Arm, Rear Left Upper Rearward; Lateral Link; Control Arm
- Manufacturer Note: LH Upper
- Position: Rear Upper Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2021 Ford Edge | SE, SEL, Sport, ST, ST-Line, Titanium | 4 Cyl 2.0 L GAS, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS

Ford Edge Control Arm

OEM Control Arm boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Control Arm with long life and a perfect fit. Come to our website and find genuine Ford Edge parts. We keep a wide inventory of OEM Edge parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

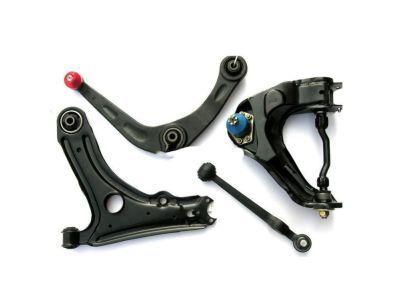

Being an integral part of any Ford Edge vehicle, the Control Arm joins the frame to the wheels and bears the brunt of the weight and impact on the suspension catches like shocks and springs. These arms sway in relation to the conditions on the road so that the wheels can in turn rotate either up or down. Ford Edge Control Arms are of different types and made from stronger cast iron or aluminum in the newer models. Bushing and ball joint, among others that are usually durable may need replacement in most cases. For better control and smooth ride, Control Arms are also made for the high speed and modified vehicles with additional features of strengthened construction and the provision of the settings of angle. Also, Control Arm bushings and hardware can be had for upgrades and modifications to the suspension and its geometry.

Ford Edge Control Arm Parts and Q&A

Lower Control Arm, Front Driver Side
8T4Z-3079-A
Q: How to service and repair the upper control arm on Ford Edge?
A:
Start the procedure to service and repair the upper control arm by taking off the wheel along with its tire. Place the suitable jackstand under the lower arm before increasing the suspension height. First remove and dispose of the upper arm outboard bolt and its matching nut then proceed with lowering the lower arm before removing the jack. Position a jackstand at the subframe and discard the two bolts used for the bushing brace before subframe bushing retrieval. The removal of the upper arm inboard bolt requires subframe lowering through slow operation of the jack to reduce spring pressure. Therefore start by removing the subframe rearward nut. Complete the procedure by uninstalling the upper arm inboard bolt along with its associated nut and remove the upper arm from service. Position the upper arm in its correct position before installing the upper arm inboard bolt and nut without tightening. Lift the jack while adding the subframe rearward nut until it reaches 90 Nm (66 lb-ft) torque followed by installation of the subframe forward nut reaching the same torque value. Fasten the two subframe bushing brace bolts by applying 25 Nm (18 lb-ft) torque. Lift the jack again to access the lower arm before attaching the upper arm outboard components yet keeping them untightened. After removing the jack you should install both tire and wheel. Tighten the upper arm outboard bolt to 150 Nm (111 lb-ft) when the vehicle rests on the wheel and tire before applying the same torque value to the upper arm inboard bolt.
