How to service and repair the upper intake manifold on Ford Edge?

A proper upper intake manifold service requires removal of Air Cleaner outlet pipe and the disconnection of Throttle Body electrical connector and lifting off EVAP tube from intake manifold as well as removal of brake booster vacuum hose and PCV tube from PCV valve. First detach all retainers from the upper intake manifold wiring harness before uninstalling the upper intake manifold support bracket bolt as well as the six bolts securing the upper intake manifold. Before installation replace the gaskets afterward clean all sealing surfaces of both upper and lower intake manifold for inspection. The presence of metal debris in the intake manifold requires installing a new intake manifold to avoid equipment destruction when upper engine failure required replacement or repairs. Insert new gaskets into the upper intake manifold and fix it with the six bolts according to the specified sequence while tightening them to 10 Nm (89 lb-in). Install the upper intake manifold support bracket bolt along with torqueing it to 10 Nm (89 lb-in). The installation process requires reattaching wiring harness retainers while connecting the PCV tube to the PCV valve, the brake booster vacuum hose to the intake manifold, the EVAP tube to the intake manifold, the TB electrical connector, and the ACL outlet pipe.

OEM Ford Edge Intake Manifold

Engine Intake Manifold

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Intake Manifolds found

View related parts

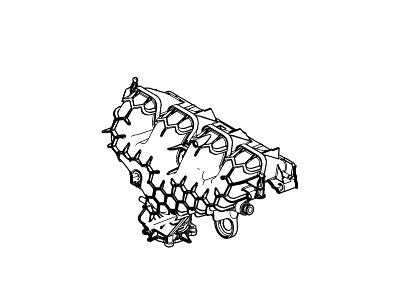

Ford Edge Intake Manifold Part Number: CJ5Z-9424-G
$50.56 MSRP: $72.33
You Save: $21.77 (31%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Inlet; Engine Intake Manifold
- Replaces: CJ5Z-9424-B, CJ5Z-9424-C, CJ5Z-9424-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2018 Ford Edge | SE, SEL, Titanium | 4 Cyl 2.0 L GAS
View related parts
Ford Edge Intake Manifold Part Number: K2GZ-9424-A
$73.05 MSRP: $106.33
You Save: $33.28 (32%)
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Inlet; Engine Intake Manifold
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2024 Ford Edge | SE, SEL, ST-Line, Titanium | 4 Cyl 2.0 L GAS
View related parts
Ford Edge Intake Manifold Part Number: FT4Z-9424-E
$77.29 MSRP: $112.50
You Save: $35.21 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Inlet; Engine Intake Manifold
- Replaces: FT4Z-9424-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2024 Ford Edge | Sport, ST | 6 Cyl 2.7 L GAS
View related parts
Ford Edge Intake Manifold, Upper Part Number: FT4Z-9424-D
$109.00 MSRP: $158.67
You Save: $49.67 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Inlet
- Position: Upper
- Replaces: FT4Z-9424-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2014 Ford Edge | Sport | 6 Cyl 3.7 L GAS
View related parts
Ford Edge Intake Manifold, Lower Part Number: CT4Z-9424-C
$114.80 MSRP: $176.67
You Save: $61.87 (36%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Inlet; Engine Intake Manifold, Lower
- Position: Lower
- Replaces: AT4Z-9424-F, CT4Z-9424-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2018 Ford Edge | SE, SEL, Titanium | 6 Cyl 3.5 L GAS
View related parts
Ford Edge Intake Manifold, Upper Part Number: FT4Z-9424-B
$85.65 MSRP: $124.67
You Save: $39.02 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Inlet; Engine Intake Manifold, Upper
- Position: Upper
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2018 Ford Edge | SE, SEL, Titanium | 6 Cyl 3.5 L GAS
View related parts
Ford Edge Intake Manifold Part Number: CB5Z-9424-E
$76.94 MSRP: $112.00
You Save: $35.06 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Inlet
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2014 Ford Edge | Limited, SE, SEL | 4 Cyl 2.0 L GAS
View related parts
Ford Edge Intake Manifold, Upper Part Number: AT4Z-9424-A
Product Specifications
- Other Name: Manifold Assembly - Inlet; Engine Intake Manifold, Upper
- Position: Upper
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2014 Ford Edge | Limited, SE, SEL, Sport | 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
View related parts
Ford Edge Intake Manifold, Lower Part Number: 7T4Z-9424-C
Product Specifications
- Other Name: Manifold Assembly - Inlet; Engine Intake Manifold, Lower
- Position: Lower
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007-2010 Ford Edge | Limited, SE, SEL, SEL Plus, Sport | 6 Cyl 3.5 L GAS
View related parts
Ford Edge Intake Manifold, Upper Part Number: 7T4Z-9424-D
$130.53 MSRP: $190.00
You Save: $59.47 (32%)
Product Specifications
- Other Name: Manifold Assembly - Inlet; Engine Intake Manifold, Upper; Intake Plenum
- Position: Upper
- Replaces: 7T4Z-9424-DA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2007 Ford Edge | SE, SEL, SEL Plus | 6 Cyl 3.5 L GAS
View related parts
Ford Edge Intake Manifold, Lower Part Number: CT4Z-9424-B
Product Specifications
- Other Name: Manifold Assembly - Inlet
- Position: Lower
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2014 Ford Edge | Limited, SE, SEL, Sport | 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
View related parts
Ford Edge Intake Manifold, Upper Part Number: 7T4Z-9424-E
Product Specifications
- Other Name: Manifold Assembly - Inlet; Engine Intake Manifold, Upper
- Position: Upper
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2008-2010 Ford Edge | Limited, SE, SEL, Sport | 6 Cyl 3.5 L GAS
View related parts
Ford Edge Intake Manifold Part Number: CB5Z-9424-C
Product Specifications
- Other Name: Manifold Assembly - Inlet
- Replaces: CB5Z-9424-B, CB5Z-9424-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2013 Ford Edge | Limited, SE, SEL | 4 Cyl 2.0 L GAS

Ford Edge Intake Manifold

OEM Intake Manifold boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Intake Manifold with long life and a perfect fit. Come to our website and find genuine Ford Edge parts. We keep a wide inventory of OEM Edge parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

Intake Manifold with Ford Edge cars primarily responsible for supplying the air or the air/fuel mixture to the respective cylinder which greatly affect the power and performance of a car's engine. Working of the intake manifold is rather simple: it draws air from the throttle body, the design of which may vary depending on the type of the engine installed in the car. For instance, the older models may contain carburetors or TBI while the new Ford Edge models that contain multiport fuel injection or GDI provides only air to the cylinder. Traditionally ford edge intake manifolds were manufactured from cast iron or aluminum but today's models are most dominantly using lightweight composite plastics, improving emission, fuel efficiency and cooling. There are models which use adjustable variable-length intake manifold (VLIM) for controlling the airflow during varying loads on the engine. Altogether, the development of the Ford Edge Intake Manifold demonstrates how the technology can be applied in the engineering new car parts in order to optimize their efficiency and declared power.

Ford Edge Intake Manifold Parts and Q&A

Intake Manifold, Upper
7T4Z-9424-E
Q: How to service and repair the upper intake manifold on Ford Edge?
A:
A proper upper intake manifold service requires removal of Air Cleaner outlet pipe and the disconnection of Throttle Body electrical connector and lifting off EVAP tube from intake manifold as well as removal of brake booster vacuum hose and PCV tube from PCV Valve. First detach all retainers from the upper intake manifold wiring harness before uninstalling the upper intake manifold support bracket bolt as well as the six bolts securing the upper intake manifold. Before installation replace the gaskets afterward clean all sealing surfaces of both upper and lower intake manifold for inspection. The presence of metal debris in the intake manifold requires installing a new intake manifold to avoid equipment destruction when upper engine failure required replacement or repairs. Insert new gaskets into the upper intake manifold and fix it with the six bolts according to the specified sequence while tightening them to 10 Nm (89 lb-in). Install the upper intake manifold support bracket bolt along with torqueing it to 10 Nm (89 lb-in). The installation process requires reattaching wiring harness retainers while connecting the PCV tube to the PCV valve, the brake booster vacuum hose to the intake manifold, the EVAP tube to the intake manifold, the TB electrical connector, and the ACL outlet pipe.
