How to service the vacuum brake booster on Ford F-350 Super Duty?

The vacuum brake booster servicing process starts by taking out both the master cylinder and breaking the vacuum hose connection from the check valve. The procedure must include separating the power distribution auxiliary relay box from its installation site when necessary. Begin by taking out the brake pedal cotter pin cover followed by the cotter pin. Afterwards place the brake pedal position (BPP) switch along with the brake booster push rod off the brake pedal pin. Tighten the four nuts that secure the brake booster-to-pedal bracket to 25 Nm (18 ft. lbs.) when installing it. The end of the installation requires you to reverse the brake booster removal process by placing the new part first.

How to effectively remove air from the Hydro-Boost power brake booster system on Ford F-350 Super Duty?

The Hydro-Boost power brake booster contains an automatic bleeding system which the following method clears system air effectively. The power steering oil reservoir requires Mercon Multi-Purpose ATF XT-2-QDX or a Mercon equivalent product for fluid filling. Break the connection of Powertrain Control Module (PCM) fuse to eliminate engine start followed by engine cranking for multiple seconds. A proper fluid check begins after power steering oil reservoir checks must be performed followed by a refill if needed before the PCM fuse installation. Start the engine and make two steering wheel rotations while it operates followed by power steering engine shutdown. Pressing the brake pedal multiple times will empty the accumulator before executing the previous testing method. Engine operation must stop when foaming begins and users should wait for the foam to vanish. Proceed with the procedures multiple times to empty the entirety of air from the system especially when foaming stops.

OEM Ford F-350 Super Duty Brake Booster

Brake Power Booster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Brake Boosters found

View related parts

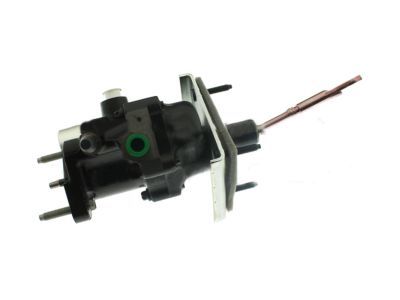

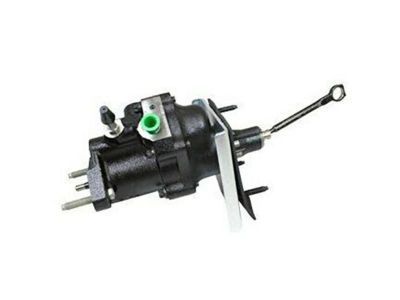

Ford F-350 Super Duty Brake Booster Part Number: 5C7Z-2005-B
$305.32 MSRP: $489.09
You Save: $183.77 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly - Brake; Power Brake Booster; Booster Assembly
- Replaces: 2C3Z-2005-BB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2004 Ford F-350 Super Duty | Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 7.3 L DIESEL
View related parts

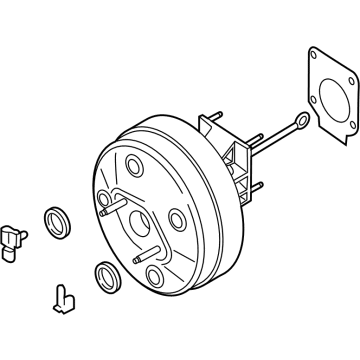

Ford F-350 Super Duty Brake Booster Part Number: DC3Z-2005-E
$261.71 MSRP: $434.55
You Save: $172.84 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly - Brake; Power Brake Booster; Booster
- Replaces: DC3Z-2005-B, BRB-95, BRB-134, BRB-148, DC3Z-2005-D, DC3Z-2005-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2016 Ford F-350 Super Duty | King Ranch, Lariat, Platinum, XL, XLT | 8 Cyl 6.2 L FLEX, 8 Cyl 6.7 L DIESEL
View related parts

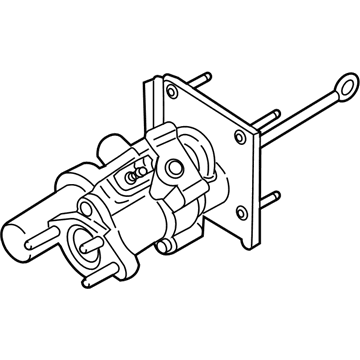

Ford F-350 Super Duty Brake Booster Part Number: BC3Z-2005-A
$259.92 MSRP: $416.36
You Save: $156.44 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly - Brake; Power Brake Booster; Booster
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2012 Ford F-350 Super Duty | King Ranch, Lariat, XL, XLT | 8 Cyl 6.2 L FLEX, 8 Cyl 6.7 L DIESEL
View related parts

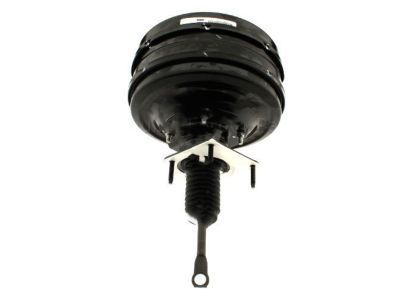

Ford F-350 Super Duty Brake Booster Part Number: 7C3Z-2005-AA
$191.63 MSRP: $318.18
You Save: $126.55 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly - Brake; Power Brake Booster; Booster
- Replaces: 6C3Z-2005-AA, 5C3Z-2005-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2010 Ford F-350 Super Duty | Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 6.4 L DIESEL
View related parts

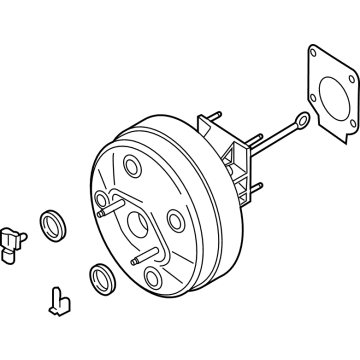

Ford F-350 Super Duty Brake Booster Part Number: HC3Z-2005-F
$234.95 MSRP: $376.36
You Save: $141.41 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly - Brake; Power Brake Booster
- Replaced by: HC3Z-2005-H
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017 Ford F-350 Super Duty | King Ranch, Lariat, Platinum, XL, XLT | 8 Cyl 6.2 L FLEX, 8 Cyl 6.7 L DIESEL
View related parts

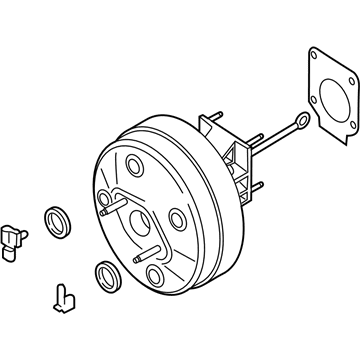

Ford F-350 Super Duty Brake Booster Part Number: EC3Z-2005-C
$140.34 MSRP: $230.91
You Save: $90.57 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly - Brake; Power Brake Booster; Booster
- Replaces: BRB-83, BRB-104, DC3Z-2005-A, EC3Z-2005-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013 Ford F-350 Super Duty | King Ranch, Lariat, Platinum, XL, XLT | 8 Cyl 6.2 L FLEX, 8 Cyl 6.7 L DIESEL
View related parts
Ford F-350 Super Duty Brake Booster Part Number: EC3Z-2005-D
$343.83 MSRP: $570.91
You Save: $227.08 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly - Brake; Power Brake Booster; Booster
- Replaces: EC3Z-2005-B, BRB-105
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2014-2016 Ford F-350 Super Duty | King Ranch, Lariat, Platinum, XL, XLT | 8 Cyl 6.2 L FLEX, 8 Cyl 6.7 L DIESEL
View related parts

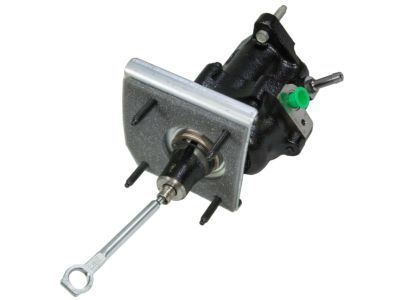

Ford F-350 Super Duty Brake Booster Part Number: PC3Z-2005-C
$259.69 MSRP: $416.00
You Save: $156.31 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly - Brake; Booster
- Replaced by: PC3Z-2005-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2023-2024 Ford F-350 Super Duty | King Ranch, Lariat, Limited, Platinum, XL, XLT | 8 Cyl 6.7 L DIESEL, 8 Cyl 6.8 L GAS, 8 Cyl 7.3 L GAS
View related parts
Ford F-350 Super Duty Brake Booster Part Number: PC3Z-2005-A
$309.86 MSRP: $496.36
You Save: $186.50 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly - Brake; Booster
- Replaces: BRB-151, HC3Z-2005-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2024 Ford F-350 Super Duty | King Ranch, Lariat, Limited, Platinum, XL, XLT | 8 Cyl 6.2 L FLEX, 8 Cyl 6.7 L DIESEL, 8 Cyl 6.8 L GAS, 8 Cyl 7.3 L GAS
View related parts
Ford F-350 Super Duty Brake Booster Part Number: HC3Z-2005-H
$234.95 MSRP: $376.36
You Save: $141.41 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly - Brake; Power Brake Booster; Booster
- Replaces: BRB-255, HC3Z-2005-G, HC3Z-2005-B, BRB-150, HC3Z-2005-F, HC3Z-2005-J, BRB-222
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2022 Ford F-350 Super Duty | King Ranch, Lariat, Limited, Platinum, XL, XLT | 8 Cyl 6.2 L FLEX, 8 Cyl 6.7 L DIESEL, 8 Cyl 7.3 L GAS
View related parts
Ford F-350 Super Duty Brake Booster Part Number: BC3Z-2005-C
$244.19 MSRP: $405.45
You Save: $161.26 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster Assembly - Brake; Power Brake Booster; Booster
- Replaces: BC3Z-2005-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2012 Ford F-350 Super Duty | King Ranch, Lariat, XL, XLT | 8 Cyl 6.2 L FLEX, 8 Cyl 6.7 L DIESEL
View related parts
Ford F-350 Super Duty Brake Booster Part Number: 8C3Z-2005-B
Product Specifications
- Other Name: Booster Assembly - Brake; Power Brake Booster; Booster
- Replaces: 6C3Z-2005-AB, 8C3Z-2005-A, 5C3Z-2005-AC, BRB-16
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2010 Ford F-350 Super Duty | Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL
View related parts
Ford F-350 Super Duty Brake Booster Part Number: 5C7Z-2005-A
Product Specifications
- Other Name: Booster Assembly - Brake; Power Brake Booster; Booster Assembly
- Replaces: F81Z-2005-AB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2004 Ford F-350 Super Duty | Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 7.3 L DIESEL

Ford F-350 Super Duty Brake Booster

OEM Brake Booster boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Brake Booster with long life and a perfect fit. Come to our website and find genuine Ford F-350 Super Duty parts. We keep a wide inventory of OEM F-350 Super Duty parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

The Ford F-350 Super Duty Brake Booster is an important assembly that increases the braking capacity of the car, and thus lowers the degree of pressure from the driver. As one of the most trusted and efficient brake boosters in the market, the part functions through vacuum or hydraulic systems specifically in several F-350 Super Duty cars. The vacuum-operated boosters take its help from the engine vacuum and operating pressure of the automobile while hydraulic boosters have a help from the power steering pump providing stead fast help. This make and model enjoy versatility and can be used with different brake systems such as the disc and the drum brake, which makes the Ford F-350 Super Duty Brake Booster an important feature among drivers who want safety and optimal performance. This product has two possibilities of the diaphragms, single or double; the greater diameter will improve the power assisted, this is very useful for powerful vehicles. Generation Ford F-350 Super Duty started from 1999 and has gone to four generations and all generations have complex features like antilock brakes, stability control, and trailer sway control while the Brake Booster is a steady companion for the series. This combination does not only push the performance level of the vehicle to another level but also provides safety to the driver and the passengers as well. The automotive market offers the Ford F-350 Super Duty Brake Booster and its powerful towing capacity and engines prove the Ford brand's dedication to quality and innovation.

Ford F-350 Super Duty Brake Booster Parts and Q&A

Brake Booster
7C3Z-2005-AA
Q: How to service the vacuum brake booster on Ford F-350 Super Duty?
A:
The vacuum brake booster servicing process starts by taking out both the master cylinder and breaking the vacuum hose connection from the check valve. The procedure must include separating the power distribution auxiliary relay box from its installation site when necessary. Begin by taking out the brake pedal cotter pin cover followed by the cotter pin. Afterwards place the brake pedal position (BPP) switch along with the brake booster push rod off the brake pedal pin. Tighten the four nuts that secure the brake booster-to-pedal bracket to 25 Nm (18 ft. lbs.) when installing it. The end of the installation requires you to reverse the brake booster removal process by placing the new part first.
Brake Booster
5C7Z-2005-B
Q: How to effectively remove air from the Hydro-Boost power brake booster system on Ford F-350 Super Duty?
A:
The Hydro-Boost power brake booster contains an automatic bleeding system which the following method clears system air effectively. The power steering oil reservoir requires Mercon Multi-Purpose ATF XT-2-QDX or a Mercon equivalent product for fluid filling. Break the connection of Powertrain Control Module (PCM) fuse to eliminate engine start followed by engine cranking for multiple seconds. A proper fluid check begins after power steering oil reservoir checks must be performed followed by a refill if needed before the PCM fuse installation. Start the engine and make two steering wheel rotations while it operates followed by power steering engine shutdown. Pressing the brake pedal multiple times will empty the accumulator before executing the previous testing method. Engine operation must stop when foaming begins and users should wait for the foam to vanish. Proceed with the procedures multiple times to empty the entirety of air from the system especially when foaming stops.
