OEM Ford Flex Power Steering Pump

Ford Flex Power Steering Pump Parts Questions & Experts Answers

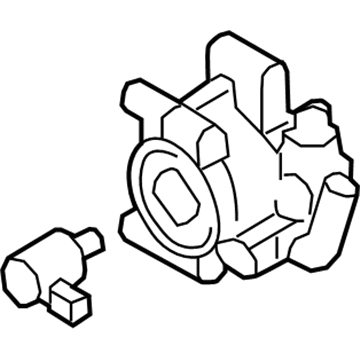

• Power Steering Pump
  8A8Z-3A674-BRM
  Q: How to service and repair the power steering pump on Ford Flex?

  A: You can begin power steering pump service and repair by draining power steering fluid from the reservoir with a proper suction apparatus. The first step requires removal of both the 7 pin-type retainers and the right-hand splash shield. Use the Stretchy Belt Remover to place it on the power steering pump pulley belt at a 90-degree angle and rotate the Crankshaft clockwise to achieve equal stretch of the remover onto the pulley. Use the Stretchy Belt Remover to pull out the power steering pump belt quickly from the right-hand fender well by folding the device underneath the inside of the belt. After loosening the clamp the technician should disconnect the power steering fluid reservoir-to-pump supply hose while removing its retainer from the pressure line bracket. The mechanic removes the pressure line bracket-to-engine bolt while taking out the 3 power steering pump bolts. A proper holding device enables you to separate the pressure line fitting from the power steering pump. Installation requires using the Teflon® Seal Installer Set to fit a new Teflon® seal on the pressure line fitting for fluid leak prevention. Secure the pressure line fitting onto the power steering pump with a torque of 65 Nm (48 lb-ft). Place the power steering pump before securing its three bolts to a torque of 25 Nm (18 lb-ft). Position the bracket before installing the pressure line bracket-to-engine bolt which needs 9 Nm (80 lb-in) torque. Connect the supply hose between power steering fluid cooler and pump and then secure it with the retainer to the pressure line bracket. The Stretchy Belt Installer Tool helps you apply the power steering pump belt to the pulley by using the crankshaft bolt for clockwise rotation. The right-hand inner fender splash shield should be installed while adding power steering fluid to the system during the last step.
