How to service and repair the tie rod inner on Ford Fusion?

Service and repair of tie rod inner components begin with steering gear removal followed by pinion shaft and steering gear housing marking before installation. A steering gear should always be placed inside a soft-jaw vise to avoid any harm. You should loosen the tie-rod jam nut followed by removing the outer tie-rod end before installing it to a torque of 90 Nm (66 lb-ft). Both bellows boots have to be removed before extracting the right-hand inner tie-rod end because technicians need to unfasten four bellow clamps and remove the two steering gear bellows boots. When removing the inner tie-rod end you should use an appropriate wrench to grasp the piston shaft before tightening the component to 103 Nm (76 lb-ft). The piston shaft must be held during inner tie rod end tightening while the new rock washer should receive a crimp after the tightening process. To finish the installation process you must revert the removal steps.

OEM Ford Fusion Tie Rod

Steering Tie Rod

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Tie Rods found

View related parts

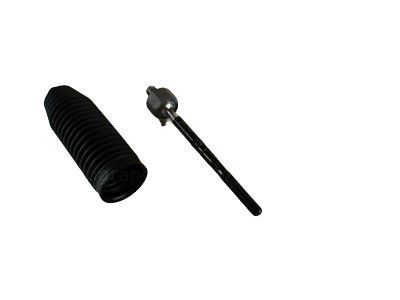

Ford Fusion Inner Tie Rod, Front Part Number: DG9Z-3280-A
$58.45 MSRP: $96.18
You Save: $37.73 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Tie Rod; Steering Tie Rod End, Front Inner, Inner; Inner Tie Rod End; Tie Rod End
- Position: Front Inner
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2020 Ford Fusion | Energi Platinum, Energi SE, Energi Titanium, Platinum, Platinum Hybrid, S, S Hybrid, SE, SE Hybrid, SEL, SEL Hybrid, Sport, Titanium, Titanium Hybrid | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 6 Cyl 2.7 L GAS
View related parts

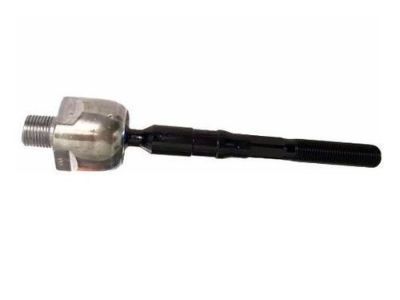

Ford Fusion Inner Tie Rod Part Number: AE5Z-3280-A
$42.37 MSRP: $67.27
You Save: $24.90 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Kit - Tie Rod; Steering Tie Rod End, Inner; Inner Tie Rod End; Tie Rod End
- Position: Inner
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2010-2012 Ford Fusion | Hybrid, S, SE, SEL, Sport | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.5 L GAS
View related parts

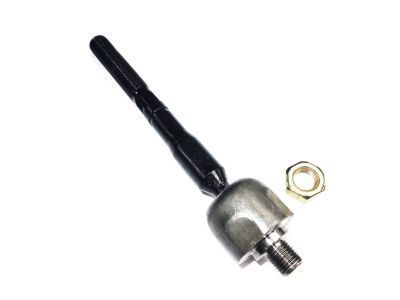

Ford Fusion Inner Tie Rod Part Number: 6E5Z-3280-AA
$55.14 MSRP: $90.73
You Save: $35.59 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod; Steering Tie Rod End, Inner; Outer Tie Rod End; Tie Rod End
- Position: Inner
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2012 Ford Fusion | S, SE, SEL, Sport | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.5 L GAS

Ford Fusion Tie Rod

OEM Tie Rod boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Tie Rod with long life and a perfect fit. Come to our website and find genuine Ford Fusion parts. We keep a wide inventory of OEM Fusion parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

The Ford Fusion Tie Rod serves as an important steering system component which displays dependable operation within different Ford Fusion vehicle models. The critical linkage between steering gear and front wheels determines directional control because it receives steering wheel position from the steering gear to control the steering knuckles. A Ford Fusion Tie Rod assembly consists of two parts: inner and outer tie rods to create a well-secured steering connection which helps in achieving precise steering behavior and safety performance. Vehicle safety and handling depend on inspecting the Ford Fusion Tie Rod during normal service since rod wear creates dangerous amounts of Smooth play. Since its production beginning in 2005 the Ford Fusion has gained extensive user appeal through its developed design and helpful features. A vehicle's efficiency remains dependent on the Tie Rod which contributes to providing a refined driving experience. The car Tie Rod establishes itself in the automotive sector because it fits multiple Fusion trim levels which allows clients to depend on its performance across all models. The car Tie Rod displays Ford's dedication to quality innovation through its simple rack & pinion steering gear design thus becoming an essential component for reliable driving safety in the automaker model vehicles.

Ford Fusion Tie Rod Parts and Q&A

Inner Tie Rod
6E5Z-3280-AA
Q: How to service and repair the tie rod inner on Ford Fusion?
A:
Service and repair of tie rod inner components begin with steering gear removal followed by pinion shaft and steering gear housing marking before installation. A steering gear should always be placed inside a soft-jaw vise to avoid any harm. You should loosen the tie-rod jam nut followed by removing the outer tie-rod end before installing it to a torque of 90 Nm (66 lb-ft). Both bellows boots have to be removed before extracting the right-hand inner tie-rod end because technicians need to unfasten four bellow clamps and remove the two steering gear bellows boots. When removing the inner tie-rod end you should use an appropriate wrench to grasp the piston shaft before tightening the component to 103 Nm (76 lb-ft). The piston shaft must be held during inner tie rod end tightening while the new rock washer should receive a crimp after the tightening process. To finish the installation process you must revert the removal steps.
