How to service and repair the Exhaust Manifold LH on Ford Ranger?

Service and repair of the exhaust manifold LH starts with placing the vehicle on a hoist in neutral position then disconnecting the battery ground cable. Start by removing exhaust flange nuts followed by oil level indicator and tube assembly nut along with the support brace of upper intake manifold. Unfasten the bolts while removing the nuts and the exhaust manifold with its gasket. Start by placing the exhaust manifold gasket alongside the exhaust manifold then fasten them with bolts and nuts. Perform the bolt and nut tightening procedure by starting at 10 Nm (8 ft. lbs.) and proceeding to 23 Nm (17 ft. lbs.). Mount the upper intake manifold support brace after its reinstall. The process of installation requires cleaning the oil level indicator tube end with metal parts cleaner followed by applying silicone gasket and sealant to the tube end. Secure the bracket nut of the oil level indicator tube while you reinstall exhaust flange nuts and complete the procedure by restoring the battery ground cable connection.

How to remove and install the left-hand exhaust manifold on Ford Ranger?

The left-hand exhaust manifold removal task requires a vehicle set in neutral standing on a hoist before starting. The technician needs to remove the differential feedback pressure EGR sensor from its position between the exhaust manifold and EGR valve before removing the exhaust manifold-to-EGR valve tube. First detach the two nuts connecting the exhaust manifold to the dual converter Y-pipe and then remove six left-hand exhaust manifold nuts and the gasket before discarding all components including the six left-hand exhaust manifold studs. The left-hand exhaust manifold installation requires cleaning and inspection procedures prior to using six new studs that need to be tightened to 12 Nm (106 lb-in). Place a new gasket between the exhaust manifold and position it correctly before using six new nuts that require a torque of 22 Nm (16 lb-ft) for tightening. Secure the dual converter Y-pipe by tightening its two nuts to 40 Nm (30 lb-ft) and install the exhaust manifold-to-EGR valve tube by screwing it to 34 Nm (25 lb-ft). The differential pressure feedback EGR sensor requires reconnection to the exhaust manifold-to-EGR valve tube.

OEM Ford Ranger Exhaust Manifold

Engine Exhaust Manifold

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

16 Exhaust Manifolds found

View related parts
Ford Ranger Exhaust Manifold, Passenger Side Part Number: 1L2Z-9430-CB
$277.63 MSRP: $384.08
You Save: $106.45 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Right; Manifold
- Position: Passenger Side
- Replaces: 1L2Z-9430-CA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2011 Ford Ranger | Edge, FX4, Sport, STX, Tremor, XL, XLT | 6 Cyl 4.0 L GAS
View related parts

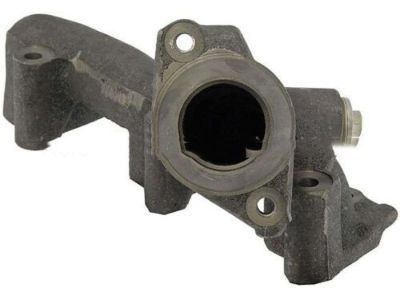

Ford Ranger Exhaust Manifold, Driver Side Part Number: 2L5Z-9431-AA
$53.38 MSRP: $73.85
You Save: $20.47 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Left; Manifold
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002-2008 Ford Ranger | Edge, Sport, STX, Tremor, XL, XLT | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Ford Ranger Exhaust Manifold, Driver Side Part Number: F77Z-9431-AA
$304.52 MSRP: $417.80
You Save: $113.28 (28%)
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Left; Manifold
- Manufacturer Note: LH, OHV
- Position: Driver Side
- Replaces: F57Z-9431-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1995-1997 Ford Ranger | Splash, Sport, STX, XL, XL Sport, XLT | 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Exhaust Manifold, Driver Side Part Number: 1L5Z-9431-AA
$39.05 MSRP: $54.03
You Save: $14.98 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Left; Manifold
- Manufacturer Note: LH, Unleaded fuel
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2004 Ford Ranger | Edge, Tremor, XL, XLT | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Ford Ranger Exhaust Manifold, Passenger Side Part Number: 1L5Z-9430-CA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Right; Manifold
- Manufacturer Note: RH, Unleaded fuel
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2011 Ford Ranger | Edge, FX4, Sport, STX, Tremor, XL, XLT | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Exhaust Manifold Part Number: 1L5Z-9430-BA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Manifold
- Manufacturer Note: Attaching Nut W703662,S309, Stud W704474,S309. use with 1l5g,9448,aa gasket, BEFORE 6/6/2002
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2003 Ford Ranger | XL, XLT | 4 Cyl 2.3 L GAS
View related parts
Ford Ranger Exhaust Manifold, Driver Side Part Number: 1L2Z-9431-CB
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Left; Manifold
- Position: Driver Side
- Replaces: 1L2Z-9431-CA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2011 Ford Ranger | Edge, FX4, Sport, STX, Tremor, XL, XLT | 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Exhaust Manifold, Driver Side Part Number: YU3Z-9431-BA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Left; Manifold
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2000 Ford Ranger | Splash, XL, XLT | 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Exhaust Manifold, Passenger Side Part Number: YU3Z-9430-BA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Right; Manifold
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2000 Ford Ranger | Splash, XL, XLT | 6 Cyl 4.0 L GAS
View related parts
Ford Ranger Exhaust Manifold, Driver Side Part Number: F87Z-9431-BA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Left; Manifold
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2000 Ford Ranger | Splash, XL, XLT | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Ford Ranger Exhaust Manifold Part Number: F87Z-9430-CA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Manifold
- Manufacturer Note: Includes fitting F87Z-9F485-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2001 Ford Ranger | Splash, XL, XLT | 4 Cyl 2.5 L GAS
View related parts

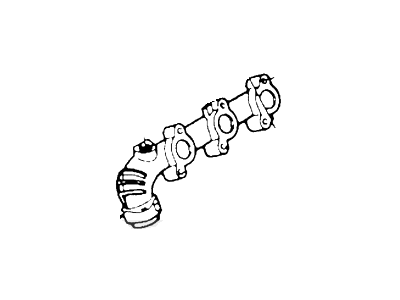

Ford Ranger Exhaust Manifold, Driver Side Part Number: F77Z9431GA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Left; Manifold
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997 Ford Ranger | Splash, Sport, STX, XL, XLT | 6 Cyl 3.0 L GAS
View related parts
Ford Ranger Exhaust Manifold, Passenger Side Part Number: F77Z-9430-HA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Right; Manifold
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997-2000 Ford Ranger | Splash, Sport, STX, XL, XLT | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts
Ford Ranger Exhaust Manifold, Passenger Side Part Number: F77Z-9430-AA
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Right; Manifold
- Manufacturer Note: RH, OHV
- Position: Passenger Side
- Replaces: F37Z-9430-L
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1997 Ford Ranger | Custom, S, Splash, Sport, STX, XL, XL Sport, XLT | 6 Cyl 4.0 L GAS
View related parts

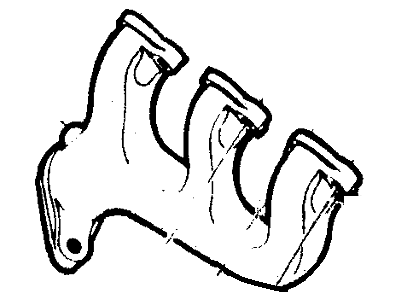

Ford Ranger Exhaust Manifold Part Number: E5ZZ9430A
Product Specifications
- Other Name: Manifold Assembly - Exhaust
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1984-1988 Ford Ranger | Base, Custom, S, STX, XL, XLS, XLT | 4 Cyl 2.0 L GAS, 4 Cyl 2.3 L GAS
View related parts
Ford Ranger Exhaust Manifold Part Number: 1L5Z-9430-BF
$105.45 MSRP: $153.50
You Save: $48.05 (32%)
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Manifold
- Manufacturer Note: use with 1l5g-9448-ab gasket, FROM 6/6/2002
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2011 Ford Ranger | Sport, STX, XL, XLT | 4 Cyl 2.3 L GAS

Ford Ranger Exhaust Manifold
