How to service and repair the front sway bar link on Ford Ranger?

Service and repair operations on the front sway bar and link start with placement of the vehicle into neutral mode on a hoisting system. First, remove all front sway bar link nuts followed by grommets, then install new parts which should be tightened to 25 Nm (18 ft. lbs.). Proceed with disassembly by removing both front sway bar link studs with their corresponding links leading to the separation of four sway bar bracket bolts and eventual removal of sway bar brackets and bushings until completion of the procedure while discarding sway bar bracket bolts. During replacement, follow the torque specifications of 40 Nm (30 ft. lbs.) for the bolts. All mating surfaces together with internal threads need examination for removal of foreign elements and thread locking compound. A kit with flag nuts is available only when self-tapping bolts cannot be used in the frame, so contact your parts department for further information. The complete installation process ends by returning to the initial removal steps in reverse order.

How to Ensure Proper Functioning of the Sway Bar Link on a Ford Ranger?

A vehicle lift setup is necessary to begin stabilizer repair service since you must first elevate the vehicle and then remove its wheel and tire unit. Detaching the sway bar link nuts from front suspension lower arms follows as the next step leading to the front sway bar link bolt removal before all sway bar links are taken out. Begin removal of the front sway bar by removing four bolts and two brackets before extracting both components with the sway bar insulator. The installation requires flag nuts when the frame does not accept self-tapping bolts. Finish the installation by executing the opposite actions of removal.

OEM Ford Ranger Sway Bar Link

Stabilizer Sway Bar Link

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Sway Bar Links found

View related parts

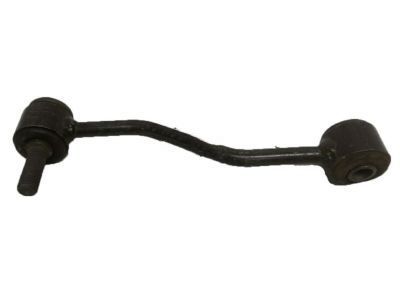

Ford Ranger Stabilizer Link, Front Part Number: JB3Z-5K483-A
$41.11 MSRP: $65.27
You Save: $24.16 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Link; Suspension Stabilizer Bar Link, Front; Suspension Stabilizer Bar Link Kit; Stabilizer Bar Link Kit; Sway Bar Link
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
View related parts
Ford Ranger Stabilizer Link, Front Part Number: 2L2Z-5K483-AA
$27.25 MSRP: $43.27
You Save: $16.02 (38%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Link; Suspension Stabilizer Bar Link, Front; Suspension Stabilizer Bar Link Kit; Stabilizer Bar Link Kit; Sway Bar Link
- Manufacturer Note: Warranty Eligible
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2011 Ford Ranger | Edge, FX4, Splash, Sport, STX, Tremor, XL, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts

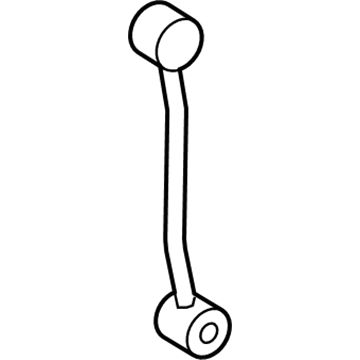

Ford Ranger Stabilizer Link Part Number: F57Z-5K483-EA
$23.07 MSRP: $31.39
You Save: $8.32 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Link; Suspension Stabilizer Bar Link Kit; Stabilizer Bar Link Kit; Sway Bar Link Kit; Sway Bar Link
- Manufacturer Note: 4x2, FROM 3/20/95
- Replaces: F2TZ-5K483-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1992-1995 Ford Ranger | Custom, S, Splash, Sport, STX, XL, XL Sport, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 2.9 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts

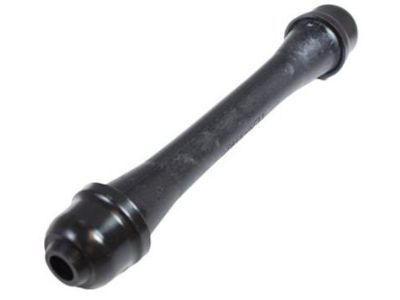

Ford Ranger Stabilizer Link, Front Part Number: 2L2Z-5K483-BA
$3.14 MSRP: $4.86
You Save: $1.72 (36%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Link; Suspension Stabilizer Bar Link, Front, Rear; Suspension Stabilizer Bar Link Kit; Sway Bar Link Kit; Sway Bar Link
- Position: Front
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2003 Ford Ranger | Edge, Splash, XL, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts

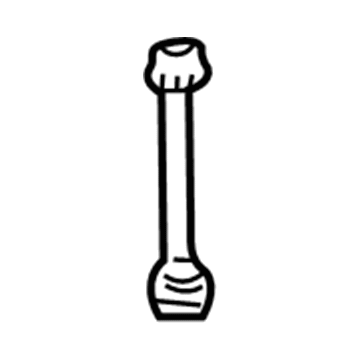

Ford Ranger Stabilizer Link, Rear Part Number: F77Z-5K484-HA
$31.21 MSRP: $50.36
You Save: $19.15 (39%)
ADD TO CART
Product Specifications
- Other Name: Link; Suspension Stabilizer Bar Link, Rear; Suspension Stabilizer Bar Link Kit; Stabilizer Bar Link Kit; Sway Bar Link; Suspension Stabilizer Bar Link; Stabilizer Bar Link
- Manufacturer Note: 276mm between center of bolt holes, 4x4 or 4X2 with extra havy duty suspension, FROM 3/1/97
- Position: Rear
- Replaces: F37Z-5K484-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1993-2011 Ford Ranger | Edge, FX4, Splash, Sport, STX, Tremor, XL, XL Sport, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts

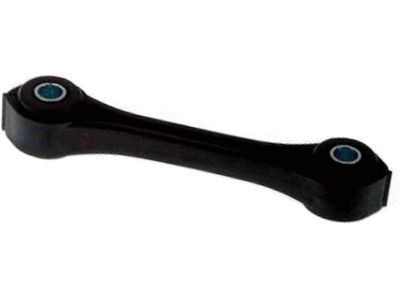

Ford Ranger Stabilizer Link Part Number: F57Z-5K483-FA
Product Specifications
- Other Name: Link; Suspension Stabilizer Bar Link Kit; Stabilizer Bar Link Kit; Sway Bar Link
- Manufacturer Note: 4x4
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1993-1997 Ford Ranger | Splash, Sport, STX, XL, XL Sport, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
View related parts

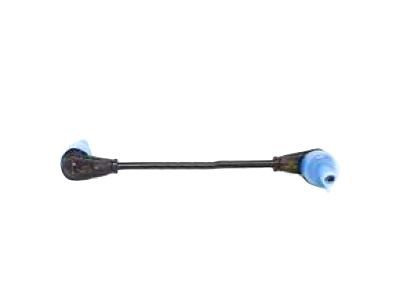

Ford Ranger Stabilizer Link, Rear Part Number: F77Z-5K484-GA
Product Specifications
- Other Name: Link; Suspension Stabilizer Bar Link, Rear; Suspension Stabilizer Bar Link Kit; Stabilizer Bar Link Kit; Sway Bar Link; Suspension Stabilizer Bar Link; Stabilizer Bar Link
- Manufacturer Note: 200mm between center of bolt holes, 4x2, FROM 3/1/97
- Position: Rear
- Replaces: F37Z-5K484-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1993-2011 Ford Ranger | Edge, FX4, Splash, Sport, STX, Tremor, XL, XL Sport, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS

Ford Ranger Sway Bar Link

OEM Sway Bar Link boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Sway Bar Link with long life and a perfect fit. Come to our website and find genuine Ford Ranger parts. We keep a wide inventory of OEM Ranger parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

This particular component referred to as the Ford Ranger Sway Bar Link is a critical devise with a huge influence on the sturdiness and performance of the Ford Ranger cars. Being an essential link between the sway bar and the control arm, the Sway Bar Link has the important responsibility of controlling the body roll of the Ford Ranger during cornering. The Sway Bar Link ensures the weight is well distributed in the vehicle to improve on the handling; therefore, makes a major difference to drivers who consider themselves safe an efficient on the road. White etched on sway bar link are compatible with different generations of Ford Ranger; the product is intended to adapt well for every generation owing to car's distinct quenches. This, combined with the Ford Ranger's strength, where the Sway Bar Link acts as an interconnect between the control arm and the sway bar, which is very fundamental in enhancing the motion transfer at high speeds. For instance, the Sway Bar Link design means that there is reduced wear on the Ford Ranger independent suspensions, which in a way, is another factor that contributes to the car's durability. The Sway Bar Link is also built and designed to be tough and durable while ensuring that the functionality is not compromised and so in the market of automotive parts this is the optimal link for a ford ranger. Finally, the Ford Ranger Sway Bar Link not only contributes to the improvement of the vehicle handling but also raises the safety and performance levels of Ford Ranger, proving thus the company's aim to provide customers with the optimal quality pickup trucks.

Ford Ranger Sway Bar Link Parts and Q&A

Stabilizer Link, Front
2L2Z-5K483-AA
Q: How to service and repair the front sway bar link on Ford Ranger?
A:
Service and repair operations on the front sway bar and link start with placement of the vehicle into neutral mode on a hoisting system. First, remove all front sway bar link nuts followed by grommets, then install new parts which should be tightened to 25 Nm (18 ft. lbs.). Proceed with disassembly by removing both front sway bar link studs with their corresponding links leading to the separation of four sway bar bracket bolts and eventual removal of sway bar brackets and bushings until completion of the procedure while discarding sway bar bracket bolts. During replacement, follow the torque specifications of 40 Nm (30 ft. lbs.) for the bolts. All mating surfaces together with internal threads need examination for removal of foreign elements and thread locking compound. A kit with flag nuts is available only when self-tapping bolts cannot be used in the frame, so contact your parts department for further information. The complete installation process ends by returning to the initial removal steps in reverse order.
Stabilizer Link, Rear
F77Z-5K484-GA
Q: How to Ensure Proper Functioning of the Sway Bar Link on a Ford Ranger?
A:
A vehicle lift setup is necessary to begin stabilizer repair service since you must first elevate the vehicle and then remove its wheel and tire unit. Detaching the sway bar link nuts from front suspension lower arms follows as the next step leading to the front sway bar link bolt removal before all sway bar links are taken out. Begin removal of the front sway bar by removing four bolts and two brackets before extracting both components with the sway bar insulator. The installation requires flag nuts when the frame does not accept self-tapping bolts. Finish the installation by executing the opposite actions of removal.
