OEM Ford Ranger Wiper Pivot

Windshield Wiper Pivot
  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Vehicle by Model
Make
Model
Year
or
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Wiper Pivots found

  • Ford Ranger Wiper Pivot - KB3Z-17566-A

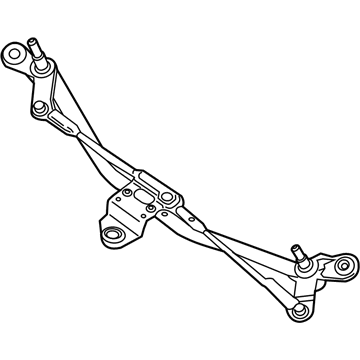

    Ford Ranger Wiper Pivot Diagram - KB3Z-17566-A
    View related parts

    Ford Ranger Wiper Transmission Part Number: KB3Z-17566-A

    $53.82 MSRP: $77.00
    You Save: $23.18 (31%)
    Ships in 1-3 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Arm And Pivot Shaft Assembly; Windshield Wiper Linkage; Wiper Linkage
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 2019-2023 Ford Ranger | Lariat, XL, XLT | 4 Cyl 2.3 L GAS
  • Ford Ranger Wiper Pivot - F77Z-17567-BA
    Ford Ranger Wiper Pivot - F77Z-17567-BA

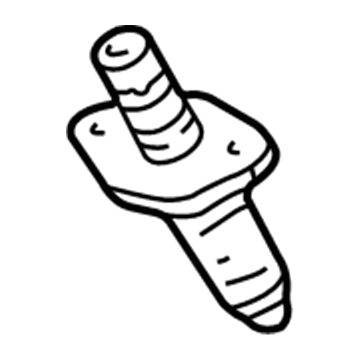

    Ford Ranger Wiper Pivot Diagram - F77Z-17567-BA
    View related parts

    Ford Ranger Wiper Pivot, Front Driver Side Part Number: F77Z-17567-BA

    Product Specifications
    • Other Name: Arm And Pivot Shaft Assembly; Windshield Wiper Linkage, Front Left, Left; Front Pivot & Arm Assembly; Arm & Pivot Assembly; Wiper Linkage
    • Position: Front Driver Side
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 1997-2005 Ford Ranger | Edge, FX4, Splash, Sport, STX, Tremor, XL, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
  • Ford Ranger Wiper Pivot - F57Z-17566-A

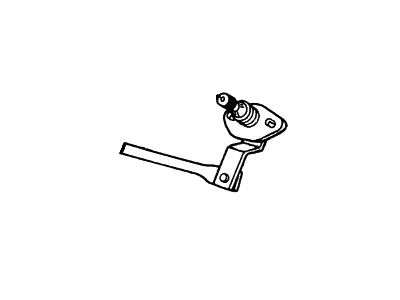

    Ford Ranger Wiper Pivot Diagram - F57Z-17566-A
    View related parts

    Ford Ranger Wiper Pivot, Front Passenger Side Part Number: F57Z-17566-A

    Product Specifications
    • Other Name: Arm And Pivot Shaft; Windshield Wiper Linkage, Front Right; Front Pivot & Arm Assembly; Arm & Pivot Assembly; Arm And Pivot Shaft Assembly; Wiper Linkage
    • Position: Front Passenger Side
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 1995-1997 Ford Ranger | Splash, Sport, STX, XL, XL Sport, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
  • Ford Ranger Wiper Pivot - F2TZ-17567-A
    Ford Ranger Wiper Pivot Diagram - F2TZ-17567-A
    View related parts

    Ford Ranger Wiper Pivot, Driver Side Part Number: F2TZ-17567-A

    Product Specifications
    • Other Name: Arm And Pivot Shaft; Wiper Linkage; Front Transmission; Arm & Pivot Assembly; Arm And Pivot Shaft Assembly
    • Manufacturer Note: L.H., FROM 6/92
    • Position: Driver Side
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 1993-1994 Ford Ranger | Splash, Sport, STX, XL, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
  • Ford Ranger Wiper Pivot - F2TZ-17566-A
    Ford Ranger Wiper Pivot Diagram - F2TZ-17566-A
    View related parts

    Ford Ranger Wiper Pivot, Passenger Side Part Number: F2TZ-17566-A

    Product Specifications
    • Other Name: Arm And Pivot Shaft; Wiper Linkage; Front Transmission; Arm & Pivot Assembly; Arm And Pivot Shaft Assembly
    • Manufacturer Note: R.H., FROM 6/92
    • Position: Passenger Side
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 1993-1994 Ford Ranger | Splash, Sport, STX, XL, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
  • Ford Ranger Wiper Pivot - E9TZ-17566-A
    Ford Ranger Wiper Pivot Diagram - E9TZ-17566-A
    View related parts

    Ford Ranger Wiper Transmission, Passenger Side Part Number: E9TZ-17566-A

    Product Specifications
    • Other Name: Arm And Pivot Shaft; Wiper Linkage; Wiper Pivot; Front Transmission; Arm & Pivot Assembly; Arm And Pivot Shaft Assembly
    • Manufacturer Note: R.H., BEFORE 6/92
    • Position: Passenger Side
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 1984-1992 Ford Ranger | Base, Custom, GT, S, S Plus, Sport, STX, XL, XLS, XLT | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L DIESEL, 4 Cyl 2.3 L DIESEL, 4 Cyl 2.3 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 2.9 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
  • Ford Ranger Wiper Pivot - 6L5Z-17567-AA
    Ford Ranger Wiper Pivot Diagram - 6L5Z-17567-AA
    View related parts

    Ford Ranger Wiper Pivot, Driver Side Part Number: 6L5Z-17567-AA

    Product Specifications
    • Other Name: Arm And Pivot Shaft Assembly; Windshield Wiper Linkage, Left; Arm & Pivot Assembly; Wiper Linkage
    • Position: Driver Side
    • Replaces: F77Z-17567-CA
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 2005-2011 Ford Ranger | Edge, FX4, Sport, STX, XL, XLT | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS
  • Ford Ranger Wiper Pivot - 6L5Z-17566-AA
    Ford Ranger Wiper Pivot Diagram - 6L5Z-17566-AA
    View related parts

    Ford Ranger Wiper Pivot, Front Passenger Side Part Number: 6L5Z-17566-AA

    Product Specifications
    • Other Name: Arm And Pivot Shaft; Windshield Wiper Linkage, Front Right, Right; Front Pivot & Arm Assembly; Arm & Pivot Assembly; Arm And Pivot Shaft Assembly; Wiper Linkage
    • Position: Front Passenger Side
    • Replaces: F77Z-17566-BA
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 1997-2011 Ford Ranger | Edge, FX4, Splash, Sport, STX, Tremor, XL, XLT | 4 Cyl 2.3 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 4.0 L GAS

Ford Ranger Wiper Pivot

OEM Wiper Pivot boasts unmatched quality. Each part goes through full quality checks. They adhere to Ford's official factory standards. These steps remove flaws and inconsistencies. So you can get Wiper Pivot with long life and a perfect fit. Come to our website and find genuine Ford Ranger parts. We keep a wide inventory of OEM Ranger parts at the highly affordable prices. It's easy to search, compare, and pick what you need. You'll love the clear info and simple checkout. We offer top-rated customer service, and we reply fast. We also ship promptly to ensure your order arrives on time.

Ford Ranger Wiper Pivot Parts and Q&A

  • Ford Ranger Wiper Pivot - 6L5Z-17566-AA Wiper Pivot, Front Passenger Side Wiper Pivot, Front Passenger Side
    6L5Z-17566-AA
    Q: How to service the Wiper Pivot and mounting arm on Ford Ranger?
    A:
    Start the wiper mounting arm pivot shaft servicing by positioning the windshield wiper blades in a straight UP position and disconnecting the battery ground cable first. Pull up the pivot arm and release the retainer tab during pivot arm removal for both the right-hand (RH) and left-hand (LH) windshield wipers. After positioning the PCM connector and harness, disconnect the PCM electrical connector by loosening the bolt and removing the nut and stud. Begin by removing both screws from the RH access cover while removing it from its position and then move the power distribution box to extract the LH access cover through the corresponding process. Insert your hand through the RH access cover opening to pull out the wiper motor clip from the middle of the RH mounting arm and pivot shaft. Remove the RH windshield wiper mounting arm and pivot shaft from the LH counterpart before moving them away from the windshield wiper motor. Fasten the pivot nuts on both sides by tightening them to 12 Nm (9 lb-ft). Route the RH and LH mounting arm and pivot shafts out of their respective opening in the RH access region. Install the adapter to the wiper motor crank pin only while making sure the connecting arm clip is fully set because this prevents windshield wiper adapter or arm clip damage. Fit the RH windshield wiper mounting arm and pivot shaft onto the windshield wiper motor crank pin and let it snap into place before finishing by reversing the removal steps while tightening components to 9 Nm (80 lb-in) according to specifications.
  • Ford Ranger Wiper Pivot - 6L5Z-17567-AA Wiper Pivot, Driver Side Wiper Pivot, Driver Side
    6L5Z-17567-AA
    Q: How to Maintain the Wiper Pivot on a Ford Ranger?
    A:
    Service of the wiper mounting arm and pivot shaft starts with positioning the wipers straight up before removing the battery ground cable. The service requires removal of right-hand (RH) and left-hand (LH) windshield wiper pivot arms which can be achieved through arm pivot while pulling up and retainer tab while pulling out. Afterwards position the powertrain control module (PCM) connector alongside the harness by loosening its bolt before removing the nut and stud and disconnectingeadh connector. The first step is to remove the RH access cover by unscrewing and separating its parts before placing the power distribution box to the side followed by removing the LH access cover in the identical fashion. Through the RH access opening operator can remove the wiper motor clip on the RH mounting arm and pivot shaft before unfastening the RH windshield wiper mounting arm and pivot shaft from their corresponding LH connection point while moving them away from the motor. The installation requires you to securely tighten the RH and LH pivot nuts to 12 Nm (9 lb-ft). You should extract the RH and LH mounting arm and pivot shafts by using the RH access opening. The windshield wiper adapter and connecting arm clip should go through full seat installation before the adapter mounts to the wiper motor crank pin and clips connect to it while both parts fit properly into the RH wiper mounting arm and its pivot shaft. Finish the installation by following the inverse order of removal and torque all required components to 9 Nm (80 lb-in) according to the specifications.
