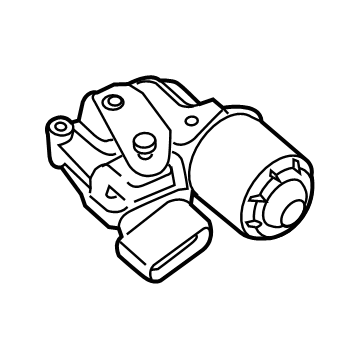

• Wiper Motor
  JU2Z-17508-ARM
  Q: How to Ensure Proper Functioning of the Wiper Motor on a Ford Ranger?

  A:

  Servicing the windshield wiper motor requires cycling the wiper blades to straight-up position followed by disconnection of the battery ground cable. The processing starts with disconnecting the electrical connector from the windshield wiper motor followed by removing the right-hand access cover through unscrewing. You need to extend your hand through the access opening until the wiper motor clip becomes free from both the right-hand mounting arm and pivot shaft. You must detach both the right-hand windshield wiper mounting arm and pivot shaft from the left-hand mounting arm and pivot shaft before moving them away from the windshield wiper motor. The windshield wiper motor can be removed through a process which starts with the removal of the stud bolt and bolts. To prevent motor damage lock the mounting arm retainer clip snugly around the motor crank pin when applying it. Reinstall the left-hand mounting arm along with the pivot shaft onto the motor before you apply the right-hand mounting arm and pivot shaft by following the reverse procedure of removal steps. The windshield wiper motor demands replacement because it cannot receive any type of repair.

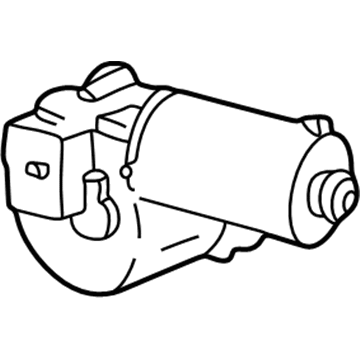

• Wiper Motor
  8L5Z-17508-A
  Q: How to service the windshield wiper motor on Ford Ranger?

  A:

  The first step to service the windshield wiper motor requires positioning wiper blades straight UP while also unplug the ground Battery Cable. The windshield wiper motor does not admit repairs because replacement of a new motor becomes necessary when damage or wear occurs. The windshield wiper motor electrical connector must be disconnected while the PCM connector along with its harness need placement away from the work area. First loosen the bolt then take out the nut and stud before disconnecting the PCM electrical connector while setting aside the harness. Proceed with the removal of the RH access cover after unscrewed screws and removing the cover from position. The wiper motor clip can be dislodged through the RH access cover opening from the RH mounting arm and pivot shaft. Move both the RH windshield wiper mounting arm and pivot shaft apart from the LH windshield wiper mounting arm and pivot shaft by disconnecting them. Use a wrench to comply with the torque value at 9 Nm (80 lb-in) when installing the windshield wiper motor after you detach its stud and bolts. Install the motor crank pin retainer clip only when the clip completely.engages with its mounting position before continuing with the installation process. Follow these steps when installing the LH mounting arm and pivot shaft to the motor ahead of the RH mounting arm and pivot shaft while finishing up by performing the removal steps backward and tightening every connection to 9 Nm (80 lb-in).
