Question 1

How to service and repair the brake pedal assembly on Lincoln Navigator?

Accepted Answer

The brake pedal assembly repair procedure starts by positioning both the accelerator pedal and the brake pedal at the same point - either at maximum forward or maximum rear location. The battery ground cable gets detached first followed by removal of the instrument panel opening cover and steering column support bracket using nut removal. Begin for brake pedal assembly repair by removing the stoplight switch self-lock pin followed by sliding the stoplight switch combined with booster push rod and bushing off the brake pedal pin. Then pull on the cable retainer to free the brake pedal-to-accelerator pedal cable from the accelerator pedal. Remove the brake pedal bracket by disconnecting the brake pedal motor electrical connector followed by removing the bulkhead sound insulator before unscrewing the brake pedal bracket nuts and bolts which allows brake pedal removal. You should begin installation by fastening first the brake pedal bracket bolts and nuts after that attach the bulkhead sound insulator and install the brake pedal motor electrical connector. The brake pedal-to-accelerator pedal cable installation requires both pedals to be at the same position while adjusting the accelerator pedal with the brake pedal motor per requirement. Position the brake pedal next to the accelerator pedal first before installing the cable under the necessary condition of new accelerator pedal installation that requires correct placement before wiring the cable. As the last step install the stoplight switch then the booster push rod and bushing onto the brake pedal pin followed by the stoplight switch self-locking pin. Reinstall the steering column support bracket before installing the instrument panel opening cover and reattaching the battery ground cable.

Question 2

How to service and repair the brake pedal assembly on Lincoln Town Car?

Accepted Answer

Servicing the brake pedal assembly starts with removing instrument panel close-out panels along with pushpins followed by counterclockwise turning of the lamp. Disassembly of the speed control deactivator switch requires breaking the pedal while being in the resting position to compress the plungers for proper rotation attempts; attempting this task with extended plungers could lead to switch damage. Begin by removing the booster push rod retaining pin cover followed by the retaining pin and continue by sliding out the stoplight switch combined with washer and bushing along with the booster push rod from the brake pedal pin. Users should tighten the brake pedal bracket bolt to 30 Nm (22 lb-ft) when reinstalling it. Begin with removing the adjustable brake pedal drive cable from its connection point on the brake pedal assembly and then disconnect the stoplight switch harness from its connection point on the pedal bracket. Remove the steering column shaft bolt to disconnect the shaft before throwing away the bolt in favor of a new one that should be tightened to 30 Nm (22 lb-ft). The installation requires removal of four brake pedal bracket nuts and the bracket together with the pedal which needs 28 Nm (21 lb-ft) torque during installation. Position the brake switch in a correct manner so the closed hole points away from the brake pedal arm while its open hole faces toward the arm to avoid damage. When installing the speed control deactivator switch you should not adjust the brake pedal. The correct installation requires the switch to connect at the brake pedal's resting position so you can prevent any errors or harm to the device. After implementing installation proceed with reverse removal steps while confirming the functioning of stoplights. Service personnel should always index the adjustable pedal system when working on brake pedal assembly or accelerator pedal assembly maintenance to protect vital components from harm.

OEM Lincoln Brake Pedal

14 Brake Pedals found

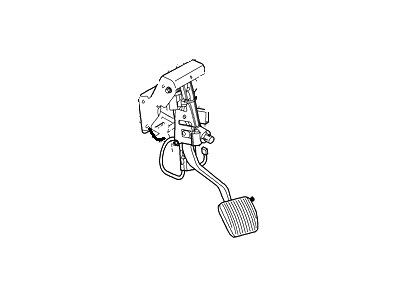

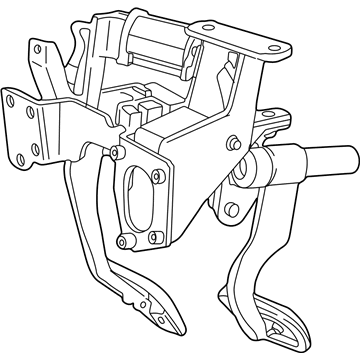

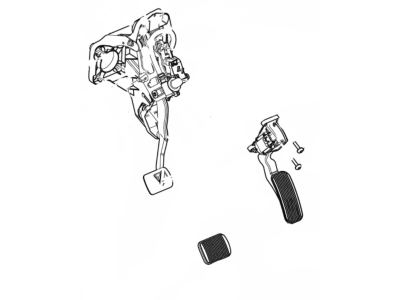

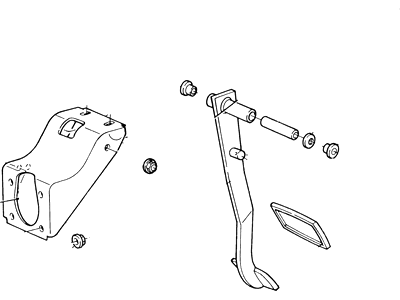

Lincoln Pedal Assembly Part Number: DG1Z-2C434-K

Lincoln Adjuster Part Number: 9W1Z-2455-E

Lincoln Pedal Assembly Part Number: BB5Z-2C434-C

Lincoln Pedal Assembly Part Number: 9W1Z-2455-F

Lincoln Pedal Assembly Part Number: F75Z-2455-GA

Lincoln Pedal Assembly Part Number: DA5Z-2C434-B

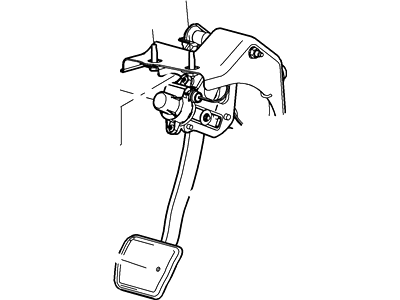

Lincoln Pedal Assembly Part Number: 9W1Z-2455-D

Lincoln Adjuster Part Number: 9W1Z-2455-A

Lincoln Adjuster Part Number: 6W1Z-2455-E

Lincoln Adjuster Part Number: 3W1Z-2455-BA

Lincoln Pedal Assembly Part Number: 2L7Z-2455-AA

Lincoln Pedal Assembly Part Number: 2L1Z-2455-AA

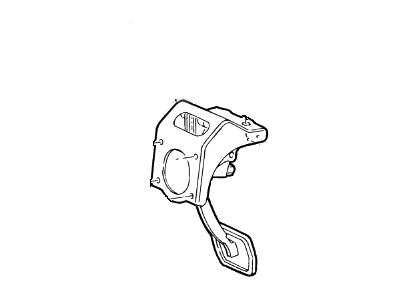

Lincoln Adjuster Part Number: 1W1Z-2455-BB

Lincoln Pedal Assembly Part Number: 9W1Z-2455-B
