How to service the differential seals on the right-hand side of an All Wheel Drive (AWD) on Lincoln MKZ?

Service of right-hand AWD differential seals starts with removing the Power Transfer Unit (PTU). You can extract the differential fluid seals by using the Input Shaft Oil Seal Remover and Slide Hammer. Position the new inner differential fluid seal first before securing it with both the Differential Seal Installer and Handle. The installation of the new outer differential fluid seal requires the same procedures as the preceding operation. Reinstall the PTU. Engage engine idling at 680-780 rpm when vehicle rests on a flat surface together with the transaxle set to PARK and brake pedal maintained for gear lever selection from each position before final returning to PARK. Clean the transmission fluid level indicator cap and remove its indicator before wiping it with a clean cloth. Check the transmission fluid level accurately by maintaining the vehicle at level ground while allowing the engine to reach operating temperature between 60°C-70°C (140°F-158°F). The fill plug nearby the indicator permits fluid additions in 0.25L (1/2 pt) increments but drivers must avoid overfilling because it will damage the transaxle. Read the fluid level at normal temperature against the top part of the fluid indicator since this mark indicates the exact fluid amount needed. When the engine operates at the cold temperature range of 15°C-25°C (59°F-77°F) the fluid level needs to be positioned at the marker located at the bottom. You should top off the transmission with cold-fluid range when Transmission Fluid Temperature (TFT) is low before checking the level as the transaxle reaches its normal operating temperature. The process ends by reinstalling the transmission fluid fill plug and torquing it to 39 Nm (29 lb-ft).

OEM Lincoln Differential Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Differential Seals found

View related parts

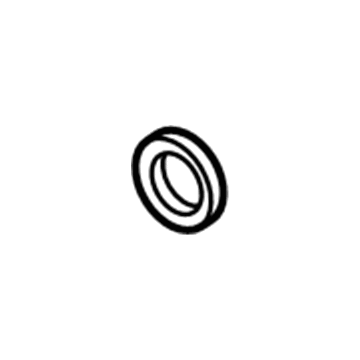

Lincoln Oil Seal, Rear Part Number: BR3Z-4676-A
$18.80 MSRP: $26.67
You Save: $7.87 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Differential Pinion Seal, Rear; Differential Seal; Axle Seal; Pinion Seal; Pinion Gear Seal; Differential Pinion Seal
- Position: Rear
- Replaces: E8TZ-4676-C, F89Z-4676-AA
Fits the following Lincoln Models:
- Aviator | 2003-2005 | Base | 8 Cyl 4.6 L GAS
- Continental | 1984-1987 | Base, Givenchy, Valentino | 6 Cyl 2.4 L DIESEL, 8 Cyl 5.0 L GAS
- LS | 2000-2006 | Appearance, Base, LSE, Luxury, Premium, Sport, Ultimate | 6 Cyl 3.0 L GAS, 8 Cyl 3.9 L GAS
- Mark LT | 2006-2008 | Base | 8 Cyl 5.4 L GAS
- Mark VII | 1992, 1984-1990 | Base, Bill Blass, LSC, Versace | 6 Cyl 2.4 L DIESEL, 8 Cyl 5.0 L GAS
- Mark VIII | 1993-1998 | Anniversary, Base, LSC | 8 Cyl 4.6 L GAS
- Navigator | 2002, 1998-1999 | Base | 8 Cyl 5.4 L GAS
- Town Car | 1984-2011 | Anniversary, Base, Cartier, Cartier L, Cypress, Designer Series, Executive, Executive L, Executive Protection Series, Jack Nicklaus, Protection Series, Signature, Signature L, Signature Limited, Signature SE, Touring Edition, Tournament Edition, Ultimate, Ultimate L | 8 Cyl 4.6 L FLEX, 8 Cyl 4.6 L GAS, 8 Cyl 5.0 L GAS
View More
View related parts

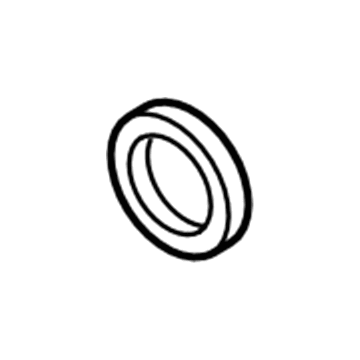

Lincoln Oil Seal, Rear Part Number: BL3Z-4676-A
$15.86 MSRP: $22.50
You Save: $6.64 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Differential Pinion Seal, Rear; Differential Seal; Oil Seal Set; Axle Seal; Pinion Seal; Rear Seal; Front Seal; Seal; Differential Pinion Seal
- Position: Rear
- Replaces: 1L3Z-4676-A, E8TZ-4676-B, NL3Z-4676-A
Fits the following Lincoln Models:
- Blackwood | 2002 | Base | 8 Cyl 5.4 L GAS
- Mark LT | 2006-2008 | Base | 8 Cyl 5.4 L GAS
- Navigator | 2003-2024, 2000-2001 | Base, Black Label, L, L Base, L Black Label, L Livery, L Luxury, L Reserve, L Select, L Ultimate, Luxury, Premiere, Reserve, Select, Ultimate | 6 Cyl 3.5 L GAS, 8 Cyl 5.4 L FLEX, 8 Cyl 5.4 L GAS
View More
View related parts

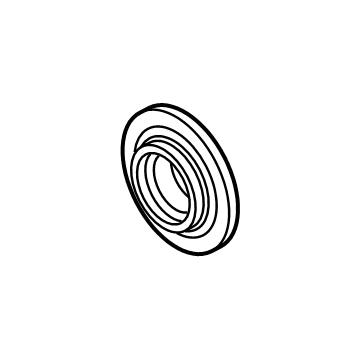

Lincoln Oil Seal, Rear Part Number: 8G1Z-4N046-A
$22.04 MSRP: $32.08
You Save: $10.04 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Differential Pinion Seal, Rear; Differential Seal; Axle Seal; Pinion Seal; Rear Seal; Front Seal; Coupling Rear Seal; Seal; Differential Pinion Seal
- Position: Rear
- Replaces: 3L8Z-4N046-AA
Fits the following Lincoln Models:
- Continental | 2017-2020 | Black Label, Reserve, Select | 6 Cyl 2.7 L GAS
- MKS | 2009-2016 | Base, EcoBoost | 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
- MKT | 2010-2012 | Base, EcoBoost | 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
- MKX | 2007-2012 | Base | 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
- MKZ | 2007-2012 | Base | 6 Cyl 3.5 L GAS
View More
View related parts

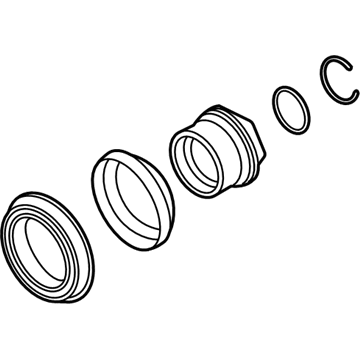

Lincoln Pinion Seal, Rear Part Number: L1MZ-4676-A
$34.95 MSRP: $50.00
You Save: $15.05 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Differential Pinion Seal, Rear; Differential Seal; Axle Seal; Front Seal
- Position: Rear
Fits the following Lincoln Models:
- Aviator | 2020-2023 | Base, Black Label, Black Label Grand Touring, Grand Touring, Livery, Reserve | 6 Cyl 3.0 L GAS, 6 Cyl 3.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts

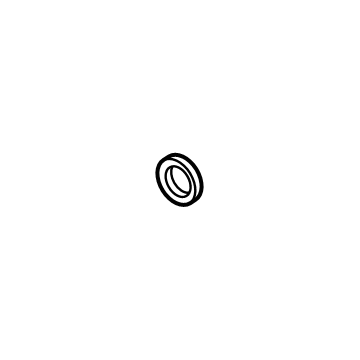

Lincoln Oil Seal, Rear Part Number: K2GZ-4676-A
$34.95 MSRP: $50.00
You Save: $15.05 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Differential Pinion Seal, Rear; Differential Seal; Axle Seal; Pinion Seal; Rear Seal
- Position: Rear
Fits the following Lincoln Models:
- Corsair | 2020-2023 | Base, Reserve | 4 Cyl 2.0 L GAS, 4 Cyl 2.3 L GAS
- Nautilus | 2019-2023 | Base, Black Label, Reserve, Select | 4 Cyl 2.0 L GAS, 6 Cyl 2.7 L GAS
View related parts

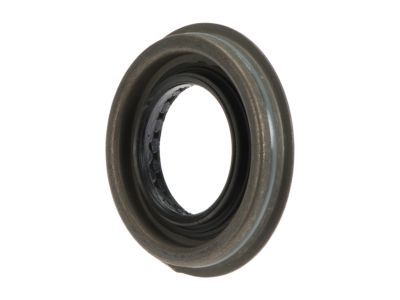

Lincoln Pinion Seal Part Number: G1FZ-4676-A
$34.95 MSRP: $50.00
You Save: $15.05 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Differential Seal; Multi-Purpose Seal; Axle Seal; Oil Seal; Rear Seal
Fits the following Lincoln Models:
- Continental | 2017-2020 | 80th Anniversary Coach Door Edition, Black Label, Coach Door Edition, Reserve | 6 Cyl 3.0 L GAS
View related parts
Lincoln Pinion Seal, Front Part Number: L1MZ-4676-C
$49.31 MSRP: $73.83
You Save: $24.52 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly - Oil; Transfer Case Output Shaft Seal, Rear; Differential Pinion Seal, Front; Rear Seal
- Position: Front
Fits the following Lincoln Models:
- Aviator | 2020-2023 | Base, Black Label, Black Label Grand Touring, Grand Touring, Livery, Reserve | 6 Cyl 3.0 L GAS, 6 Cyl 3.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Lincoln Oil Seal, Rear Part Number: CV6Z-4676-A
$15.86 MSRP: $22.50
You Save: $6.64 (30%)
Product Specifications
- Other Name: Seal Assembly - Oil; Differential Pinion Seal, Rear; Multi-Purpose Seal; Differential Seal; Axle Seal; Pinion Seal; Rear Seal; Front Seal
- Position: Rear
Fits the following Lincoln Models:
- Continental | 2017-2020 | 80th Anniversary Coach Door Edition, Base, Black Label, Coach Door Edition, Livery, Premiere, Reserve, Select | 6 Cyl 3.0 L GAS, 6 Cyl 3.7 L GAS
- MKC | 2015-2019 | Base, Black Label, Premiere, Reserve, Select | 4 Cyl 2.0 L GAS, 4 Cyl 2.3 L GAS
- MKT | 2013-2019 | Base, EcoBoost, Livery, Premiere, Reserve | 4 Cyl 2.0 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.7 L GAS
- MKX | 2013-2018 | Base, Black Label, Premiere, Reserve, Select | 6 Cyl 2.7 L GAS, 6 Cyl 3.7 L GAS
- MKZ | 2013-2020 | Base, Black Label, Black Label Hybrid, Hybrid, Premiere, Premiere Hybrid, Reserve, Reserve Hybrid, Reserve I, Reserve I Hybrid, Reserve II, Reserve II Hybrid, Select, Select Hybrid | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.7 L GAS
View More

Lincoln Differential Seal

If you own Lincoln and want to keep it in top shape, choosing OEM Differential Seal is a smart move. They are precisely engineered and follow strict factory standards. They are made in advanced facilities that use cutting edge technology. Each part goes through thorough testing to confirm strength and safety, so you can trust it. FordPartsDeal.com gives you genuine Lincoln Differential Seal at some of the affordable online prices without cutting quality. Every OEM Lincoln part includes the manufacturer's warranty, easy returns, and super-fast delivery. So why wait? Shop now and get your vehicle back to peak condition.

Lincoln Differential Seal contains the gear oil indoors and road grit outdoors so that the drivetrains are calm. Lincoln builds cabins that hush wind and engine buzz with its Quiet Flight philosophy, then adds co-pilot 360 features like blind-spot notifications, lane-keeping, automatic high beams, and user-friendly switchgear that ensure every passenger is at ease and not on edge during a trip, and clear screens, soft leather, and considerate switchgear make each seat look like a comfy sitting room on wheels that will keep passengers long and happy. Lincoln began in 1917, and over the years since then, with the acquisition of the Ford family in 1922, it has built that no-hurry attitude year after year, introducing ActiveGlide on long highway stretches that can operate without a driver, software updates regularly, and pays close attention to the feedback of its owners to sharpen every model, without going overboard with hype and hoo-ha. To keep the dust out of the gear and to keep the splash and pressure spikes out too, Lincoln uses the Differential Seal made of a hard, synthetic rubber that is molded to fit around the ring and pinion exactly when the differential is either open or limited slip, so that aggressive acceleration or sluggish towing both go on without the unpleasant whining of gears or the stench of smoke escaping. Lincoln part reestablishes the smooth rotation, the Differential Seal slides square on the lip of the housing, fits axles of any size, no shim games, does not suffer heat to bake lesser seals, and the Differential Seal provides thousands of silent miles before a second look is required.

Lincoln Differential Seal Parts and Q&A

Oil Seal, Rear
8G1Z-4N046-A
Q: How to service the differential seals on the right-hand side of an All Wheel Drive (AWD) on Lincoln MKZ?
A:
Service of right-hand AWD differential seals starts with removing the Power Transfer Unit (PTU). You can extract the differential fluid seals by using the Input Shaft Oil Seal Remover and Slide Hammer. Position the new inner differential fluid seal first before securing it with both the Differential Seal Installer and Handle. The installation of the new outer differential fluid seal requires the same procedures as the preceding operation. Reinstall the PTU. Engage engine idling at 680-780 rpm when vehicle rests on a flat surface together with the transaxle set to PARK and brake pedal maintained for gear lever selection from each position before final returning to PARK. Clean the transmission fluid level indicator cap and remove its indicator before wiping it with a clean cloth. Check the transmission fluid level accurately by maintaining the vehicle at level ground while allowing the engine to reach operating temperature between 60°C-70°C (140°F-158°F). The fill plug nearby the indicator permits fluid additions in 0.25L (1/2 pt) increments but drivers must avoid overfilling because it will damage the transaxle. Read the fluid level at normal temperature against the top part of the fluid indicator since this mark indicates the exact fluid amount needed. When the engine operates at the cold temperature range of 15°C-25°C (59°F-77°F) the fluid level needs to be positioned at the marker located at the bottom. You should top off the transmission with cold-fluid range when Transmission Fluid Temperature (TFT) is low before checking the level as the transaxle reaches its normal operating temperature. The process ends by reinstalling the transmission fluid fill plug and torquing it to 39 Nm (29 lb-ft).
