Ford F5RZ-19N619-BA

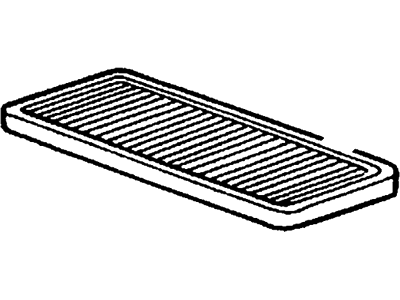

Filter

Service the cabin air filter by first removing the nut situated at each windshield wiper arm base then taking off the arms. Start by removing the plastic caps from screws that are situated on the grille before extracting the screws. The service for replacing the cabin air filter starts by removing the rubber weather strip at the back of the engine and unfastening the grille screws before splitting the grille in two and removing the component. Service the filter by locating it inside the compartment housing on the passenger side of the engine; remove the side clips from the housing before sliding out the housing and filter together. Start by installing the new filter and then reposition the housing top part with the cabin air filter into its original position while reinstalling the housing clips. Finish by reattaching both the grille along with wiper arms.

Service the cabin air filter by first removing the nut situated at each windshield wiper arm base then taking off the arms. Start by removing the plastic caps from screws that are situated on the grille before extracting the screws. The service for replacing the cabin air filter starts by removing the rubber weather strip at the back of the engine and unfastening the grille screws before splitting the grille in two and removing the component. Service the filter by locating it inside the compartment housing on the passenger side of the engine; remove the side clips from the housing before sliding out the housing and filter together. Start by installing the new filter and then reposition the housing top part with the cabin air filter into its original position while reinstalling the housing clips. Finish by reattaching both the grille along with wiper arms.

Service of the cabin air filter requires one to first disconnect the battery ground cable when the wiper motor is positioned in park. To remove wiper arms begin by lifting plastic covers then the nuts must be loosened before wiper arms can be released from the taper through side movement. You should start by opening the hood to take out the cowl grille after eliminating screw covers and extracting all bolts while removing the weatherseal and disconnecting the rear cowl grille. Now locate and remove the pollen filter which you will find after taking away the cowl grille. Reinstall the components according to the steps for removal. The vehicle needs to drive for 16 km (10 miles) or more to relearn its adaptive strategy after disconnecting and reconnecting the battery because this causes temporary abnormal drive symptoms.

Service of the cabin air filter requires users to disconnect the battery ground cable while placing the wiper motor into park mode. You can remove wiper arms through these steps: first lift plastic covers then loose the nuts before you lift wiper arms to leave them out of the taper position by moving them aside. Start by opening the hood before removing the cowl grille from the vehicle through the process of unfastening screw covers next removing bolts followed by extracting the weatherseal leading to disconnection of the cowl grille from its rear position. Afterward, remove the pollen filter. The installation process should start by doing the opposite of what was done for removal. The vehicle may display unusual drive behavior after battery disconnect and reconnect because it needs to relearn its adaptive strategy which may need at least 16 km (10 miles) of driving.
