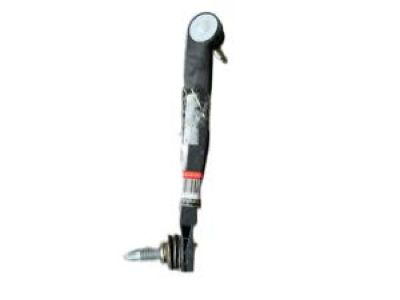

Ford 3F1Z-5K484-A
Stabilizer Link, Front Passenger Side

Your first step should be to take off the wheel with its tire while paying attention to avoid using power tools on sway bar link ball joints or boots. Apply the hex holding feature before removing the nuts so the ball joints stay stationary. First disconnect the sway bar link by unthreading its retaining nut and disposing of it before removing the link itself and throwing away the second sway bar nut. New nuts should be installed and the hex feature should be utilized to stop sway bar link ball joints from rotating before tightening the nuts. Users must utilize a socket and torque wrench for final nut tightening while following torque specifications until a new part of matching part number replacement becomes needed to ensure superior quality design maintenance.

Service or repair of sway bar links starts with removing the wheel assembly, which should be done without power tools to protect ball joints and boots of the sway bar link. The hex tool's feature allows users to hold the ball joints in place while removing the nuts initially, followed by their complete loosening. The sway bar link encounters removal when the initial nut is removed before taking out the sway bar link along with discarding its second nut. Follow the steps by applying fresh nuts and maintain the hex tool for safeguarding ball joints on the sway bar link from rotation to tighten the nuts. The last step requires tightening the specified torque values using a socket and torque wrench by following the reverse order to reassemble the installation. Installation of a new replacement part needs to include the correct part number to prevent service problems from inferior quality replacement designs.

First, loosen the nuts, then utilize the hex holding feature to prevent the stabilizer bar link ball joints from turning while removing the nuts.

Utilize the hex holding feature to prevent the stabilizer bar link ball joints from turning while removing the nuts.

Use the hex holding feature to prevent the ball joints from turning until snug, then finalize the tightening with a socket and torque wrench.

Ensure the vehicle is in NEUTRAL and positioned on a hoist, avoiding the use of power tools for nut removal or installation.

Always ensure that new parts with the same part number are used, as suspension fasteners are critical for performance.
